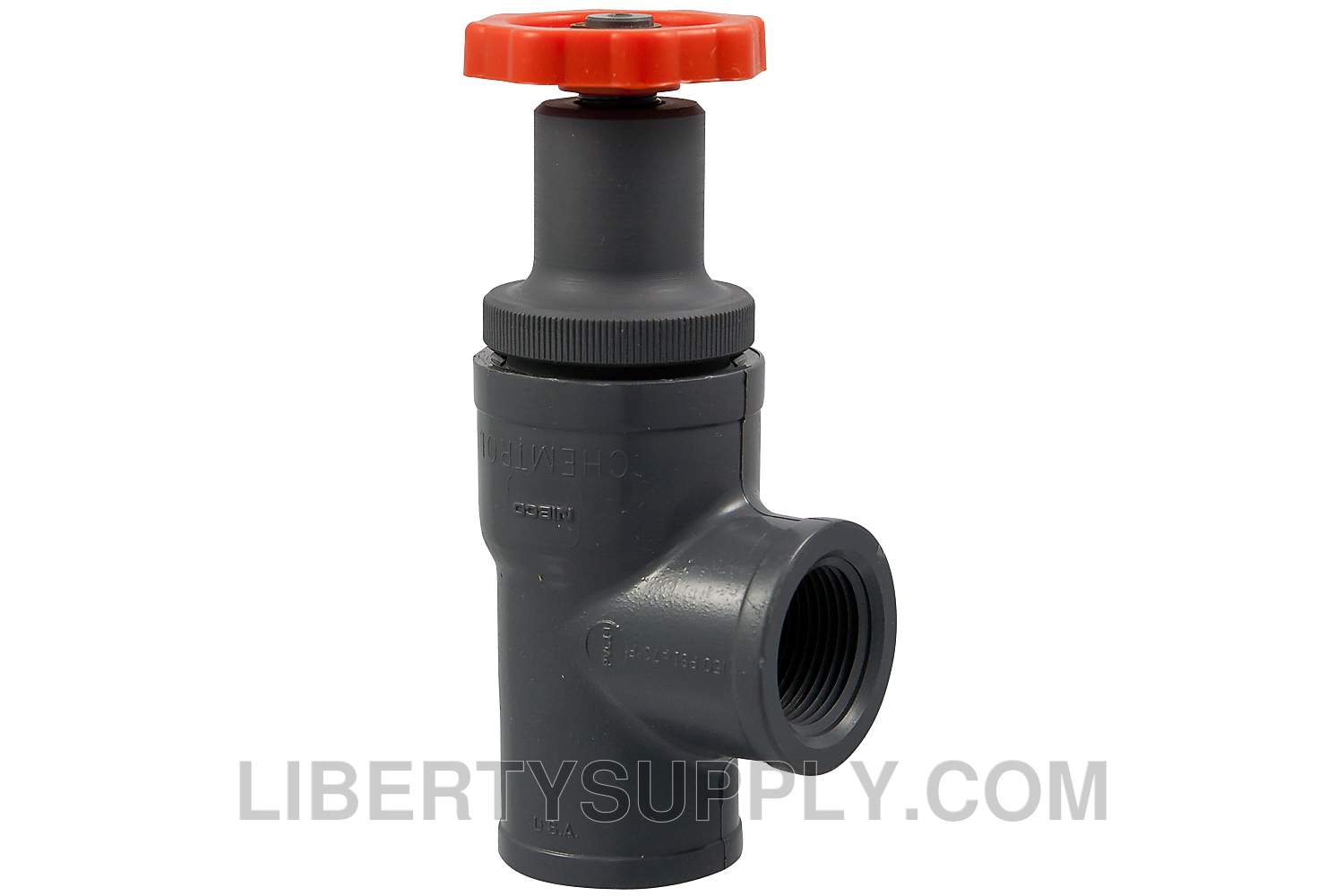

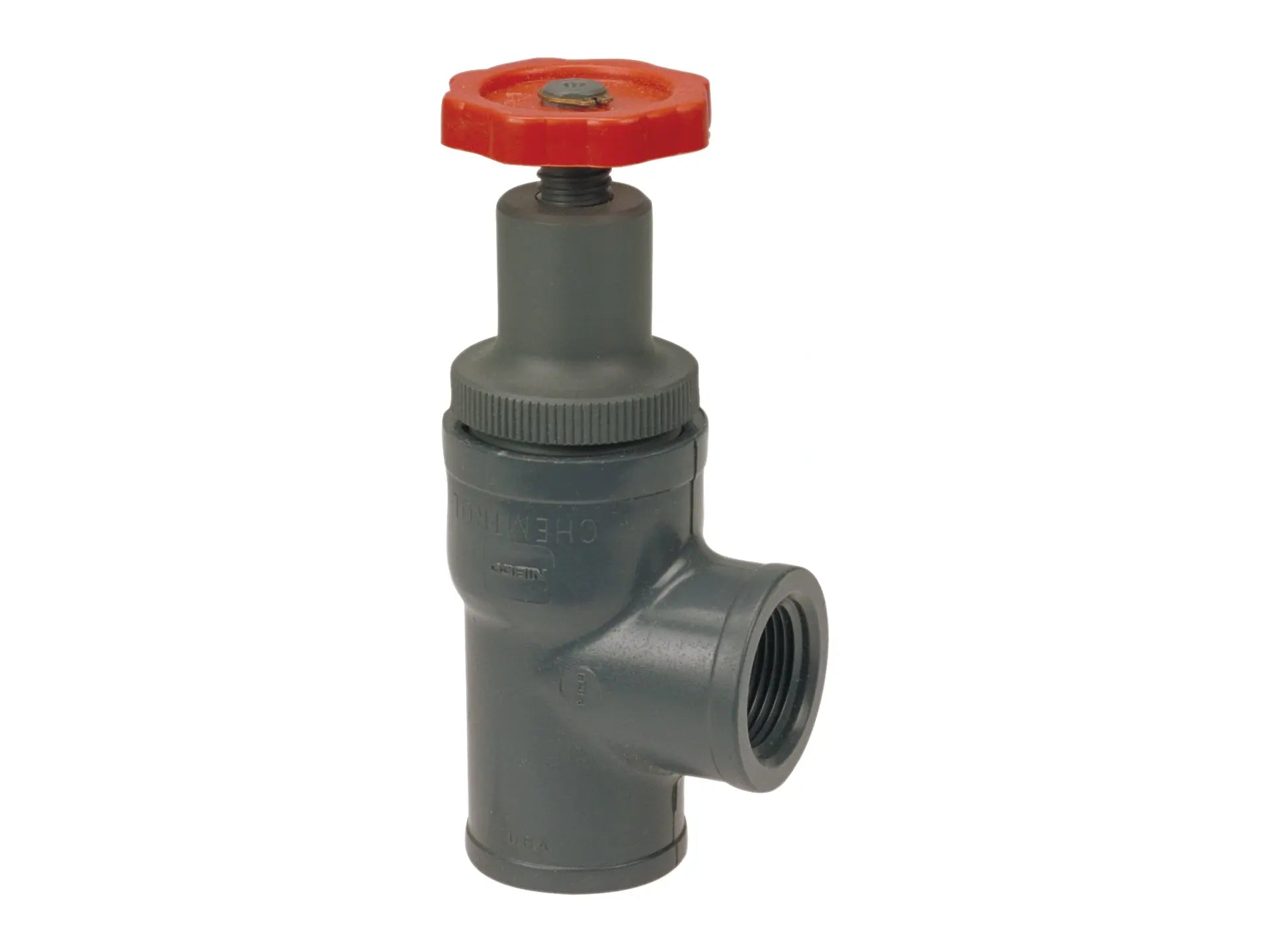

This Chemtrol angle globe valve is used where a higher pressure drop is desirable. A common application is as a pump bypass control valve. The valve's injection molded PVC construction with FKM O-ring is ideal for chemical processing, industrial plating, chilled water distribution, chemical drainage, and irrigation systems. The angle pattern features a beveled sealing disc mounted on a pivot for constant positive seal. The angle valve multi-turn operation allows for precise throttling and on/off control. Fluid never touches the stem threads, which provides fast open/close operation. The valve can be easily joined with the threaded end connections. Please refer to Chemtrol technical data sheets, chemical resistance guides, and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit, or corrode. Choose Chemtrol valves for the most reliable, versatile, and economical valve option in commercial and industrial applications. A 1-year limited warranty backs Chemtrol valves. Because Chemtrol is a NIBCO brand, the flow-control valves are unsurpassed in quality, performance, and longevity.
Features
- Valve pressure rating 150 psi at 73°F water non-shock
- Maximum service temperature 140°F
- FKM O-ring
- Threaded end connections
- Orange handle
- Do not use or test with compressed air or other gases
- ASTM F1970
- NSF/ANSI Standard 14
- NSF/ANSI Standard 61, Annex G
