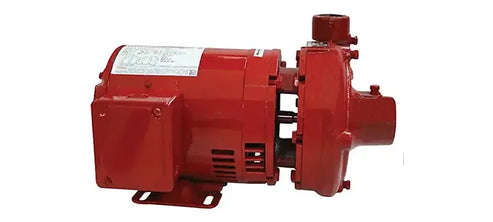

Bell & Gossett Series e-1535 Close-Coupled Small End Suction Centrifugal Pumps

Bell & Gossett Series e-1535 closed-coupled industrial pumps are designed for the heavy-duty requirements of cooling towers, refrigeration, industrial, and general service applications. The back pullout design offers ease of service in a close-coupled design. This low-maintenance pump can be mounted vertically or horizontally to provide maximum flexibility. A ball bearing design and standard internally flushed mechanical seal provide long, dependable service.

Bell & Gossett Series e-1535 Brochure

Bell & Gossett Series e-1535 Pump Features

• Motor sizes 1/4 to 5 HP
• Bronze-fitted or all bronze construction
• Flows to 240 GPM at 115 feet
• 29 stock part numbers as well as configurations thru e-1535 BTO
• 3/4" through 1-1/2" sizes
• 250ºF maximum working temperature
• 175 psi maximum working pressure

Bell & Gossett Stock e-1535 Submittal

Bell & Gossett e-1535 Instruction Manual

Bell & Gossett Series e-1535 Pump Curves

A pump curve chart provides information necessary to determine a pump’s ability to produce flow under the conditions that affect pump performance. A pump performance curve indicates how a pump will perform against specific pressure head and flow rates and is defined for a particular operating speed (RPM) and inlet/outlet diameter.

Bell & Gossett e-1535 Pump Curves

Bell & Gossett Series e-1535 Pump Parts

Parts such as impellers, gaskets, and seal kits are available for B&G e-1535 pumps.

Bell & Gossett e-1535 Replacement Parts
