This Taco 4900 Series Commercial Dirt Separator, Model 4906D, is a highly efficient and reliable solution for removing dirt and debris from hydronic systems. With a 6" flanged connection and a maximum working pressure of 125 psi, this dirt separator is designed to handle high flow rates and can effectively remove both magnetic and non-magnetic particles from the system. The separator uses centrifugal force to separate contaminants from the circulating fluid, which are then trapped in a removable dirt collection chamber at the bottom of the unit. This ensures that the hydronic system operates at peak efficiency while reducing maintenance requirements and extending equipment life. The Taco 4900 Series Commercial Dirt Separator is an essential component for any commercial or industrial hydronic system where water quality is critical.
4900 Series Overview

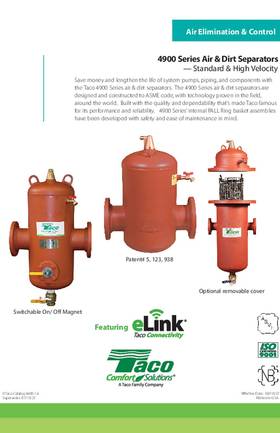

Taco 4900 Series Commercial Air & Dirt Separators efficiently remove air, dirt, and other contaminants from system components, enhancing efficiency and longevity. They use patented PALL ring technology to eliminate micro-bubbles and debris, while an optional magnet collects iron oxide and magnetite.
These separators also feature a vent mechanism for releasing merged micro-bubbles and a blowdown valve to dispose of dirt. The magnet, easily activated by a handle, simplifies maintenance and magnetite removal. They are suitable for systems with variable speed and constant flow.
Taco 4900 Series separators are constructed and tested to ASME Section VIII, Div. 1 standards. Their design is guided by computerized selection, tailored for each application. All manufacturing occurs in-house, ensuring quality. Independent third-party tests validate performance.
Features & Benefits
- Available with high power switchable ON/OFF magnet for black iron oxide and magnetite removal
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Integral stainless steel PALL ring basket
- Furnished with air vent (dirt and air/dirt models furnished with full port blowdown valve)
- Available with removable cover
- 2 psi or less pressure drop at flow rates shown on submittal
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
