Picture this: a chiller plant is commissioned and started up for the first time in a commercial building. The equipment is perfectly specified as the project demanded, the piping is clean, and the pump curves look great on paper.
After a week of operation, complaints began to roll in. One side of the building is freezing. The other cannot cool down. Nobody can figure out why a brand-new system is not achieving the minimum operational efficiency required.
Most of the time, the problems are not in the equipment but in the water-temperature management in the loops. Without proper flow balancing, water always takes the easiest path, flooding short, low-resistance circuits while starving longer ones. That scenario, uneven comfort, wasted energy, and a maintenance headache, could have been avoided with a single calibrated balance valve. Bell and Gossett Circuit Setter valves are an efficient option for hydronic system balancing, from small-office fan coils to massive water-loop systems.
This guide covers how Circuit Setters work, tips for balancing water systems, and answers to the most common field questions about these valves.
What Is a Bell & Gossett Circuit Setter Valve?
A Bell and Gossett Circuit Setter is a calibrated balance valve designed specifically for preset proportional system balance. Flow is verified by measuring differential pressure across the valve’s readout ports and converting ∆P to GPM using System Syzer.
This system-balancing method ensures optimal system flow balance at the minimum operating horsepower. Since its debut in 1968, it has remained relevant in the industry for optimizing flow and energy consumption and has become a standard in commercial water loops. Available in cast/ductile iron and lead-free brass models, Circuit Setter valves are well-suited for balancing HVAC and potable water systems, helping to reduce pump energy requirements in a wide range of applications.
Why Hydronic Systems Need Balancing?

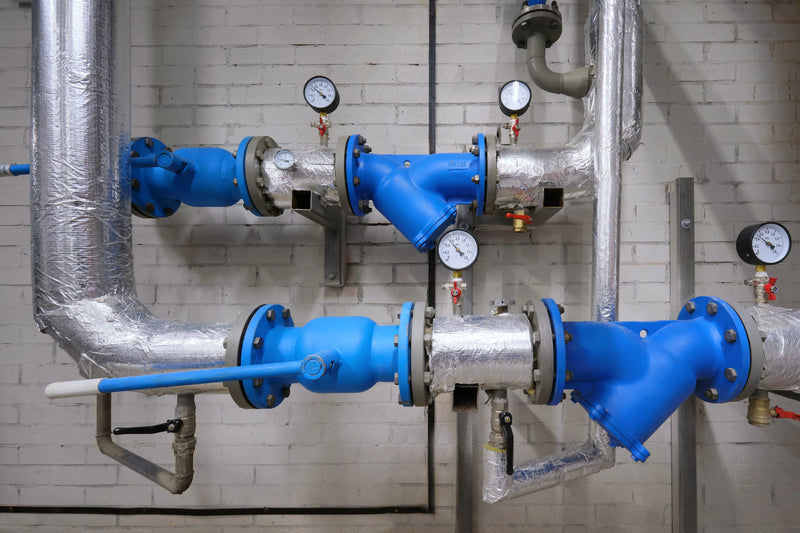

Water always takes the path of least resistance, the easiest way. In any hydronic system, shorter or lower-resistance branches receive more flow than they need, while longer ones get starved; that’s basic hydraulics.
The pump does not know the difference - it just pushes water wherever it goes easiest/first. With no flow balance, the result is predictable: uneven comfort, wasted pump energy, overworked control valves, and a system that is hard to troubleshoot because the symptoms mimic equipment failure.
Video credit: Siemens
On many ASHRAE 90.1–driven projects, TAB specifications commonly require hydronic systems to be balanced within ±10% of design flow before occupancy. It establishes a defined, measurable, lockable flow rate at every terminal unit and maintains it for the life of the system, even during maintenance events, thanks to the memory stop feature.
Bell & Gossett Circuit Setter: Models and Specifications
Bell & Gossett offers circuit-setter valves in cast/ductile iron and lead-free brass construction, with multiple end connections: sweat, NPT, flanged, or grooved (depending on the required valve size).
Circuit Setter valves cover applications up to very high flow rates (depending on model and size). They include a memory stop for repeatable shutoff/reset, plus integrated readout ports for easy ∆P measurement. This supports proportional balancing and repeatable commissioning.
Bell & Gossett Circuit Setter Types
As mentioned, the valve range is divided into three models based on the required size. Below is a breakdown of the models and sizes available:

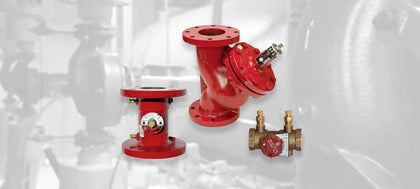

Bell & Gossett Circuit Setter Plus - Ball Valve Style
- Available Sizes: 1/2" – 4"
Bell & Gossett Circuit Setter Plus - Globe Valve Style
- Available Sizes: 4" – 12"
Bell & Gossett Circuit Setter Plus - Lead-free Brass
- Available Sizes: 1/2" – 3"
- NSF/ANSI 372 compliant, lead-free, brass design is suitable for use in all potable water systems
Features x Benefits Table
We've listed some features included in the Bell & Gossett Circuit Setter valves and their aggregated benefits to the systems:
|
Features |
Benefits |
|
A. Integral valved readout ports |
Facilitates differential pressure readings for proper balance, flow measurement, temperature measurement, and easy system commissioning. |
|
B. Calibrated name plate |
Enables easy, accurate balancing with precise flow-setting control. |
|
C. Memory stop screw/button |
Allows complete shut-off and return to the set position without readjustment or measuring pressure differential again. |
|
D. Lead-free* brass body |
Lead-Free* brass body material in ½" – 3" units. Utilizing a carefully calibrated stainless steel ball valve, the Circuit Setter Plus is perfect for balancing potable water applications and small hydronic systems. |
|
E. Drain/Purge Connection |
Allows for easy draining of a portion of the system without draining the entire system. |
|
F. NPT, sweat, or press connections |
With NPT connections available in ½”-3” sizes and sweat or press connections in ½”-2”, the Circuit Setter Plus is a perfect solution for every application. Union fittings are available on configured valves. |
|
G. Cast/ductile iron body |
Cast Iron body material in all flanged models and ductile iron for all grooved models. Utilizing a carefully calibrated brass ball valve in 2 ½” – 4" units and a brass seat and disk with an EDPM seal insert for a soft seat and thorough seal in 4"-12" units, the Circuit Setter Plus, cast/ductile iron units are perfect for hydronic balancing in large pipe diameter applications. |
|
H. Flanged or grooved connections |
With flanged connections available in 2 ½”–12" and Grooved connections in 4"-12", the Circuit Setter Plus is a perfect solution for every large-flow application. |
Cost-saving advantages
The Bell & Gossett Circuit Setter Plus Calibrated Balance Valve has been designed and tested to provide the cost-saving advantages of preset proportional balance, as explained before. Each valve is a three-function precision instrument providing flow balance, flow metering, and shut-off.
Velocity Head Recovery
The following picture shows the changes in fluid velocity as it passes through the valve orifice. The pressure drop added to the pump (∆P from C to D) is about 0.7 to 0.9 of the value across the readout ports A-B. These differences are enough to require two sets of ∆P data to be shown on the Circuit Setter Balance Valve Calculator.
Circuit Setter Balance Valve Calculator
The Circuit Setter Calculator is the result of rigorous laboratory tests and Bell & Gossett R&D research. Side 1 shows the actual system-imposed head loss versus flow for various possible valve settings. This scale is used for preset balance determination. Side 2 is used when taking gauge readings across the Circuit Setter Balance Valve using the valve as a flow meter.
Variable Orifice Flow Meter
Circuit Setter valves can be used as variable-orifice flow meters. A differential pressure meter is put directly across the valved readout ports. It will determine the flow rate by using Side 2 of the Circuit Setter Calculator.
System Syzer Desktop Application and App
The Circuit Setter System Syzer desktop application is a digital tool that uses the information from a Circuit Setter Balance Valve Calculator. The application can determine either the flow rate based on head loss and valve setting, or the valve setting necessary based on head loss and flow rate across the valve.
The System Syzer App is available for iOS and Android and has the same capabilities as the desktop version, but it is used on a phone, which can be more convenient for field usage.
How to Balance a Hydronic System With Circuit Setters
The following sections are a general overview of the proportional balancing method as it is commonly applied with Bell & Gossett Circuit Setters. It is intended to help engineers, contractors, and facility managers understand how the process works conceptually - it is not to serve as a substitute for manufacturer documentation, certified training, or the judgment of a licensed professional in the field.
Hydronic balancing involves live pressurized systems, rotating equipment, and hot or chilled fluids. Every system is different. Pipe layouts, pump curves, fluid types, pressure ratings, and site conditions all affect how balancing should be approached.
Note: Always consult Bell & Gossett's official installation and operation manuals, the B&G System Syzer documentation, and a qualified TAB (Testing, Adjusting, and Balancing) professional before performing or specifying balancing work on any real installation. The steps below reflect general industry practice and should be treated as orientation, not instruction.
What You Will Need
- Two Bell and Gossett RP-250B Readout Probes (one per P/T port side).
- A differential pressure manometer - digital types are common in practice; some technicians use wireless models on large systems.
- The B&G System Syzer app (free on iOS, Android, and PC) or the G10091 slide-rule calculator.
- System drawings showing the GPM design for each terminal unit. Balancing without accurate design data is not recommended.
-
Presetting the Valves
In general practice, technicians use the B&G System Syzer and the system's design GPM data to estimate a preset position for each Circuit Setter before startup. Dialing each valve to its calculated position and engaging the memory stop is a common starting point that can bring most valves reasonably close to their final target; however, actual results will vary depending on how closely the installed system matches the design model.
-
Opening the Valves and Starting the Pump
For a full proportional balance from scratch, common practice is to open all Circuit Setters fully before energizing the pump. Direction of travel varies by model size - always verify with the manufacturer's documentation for the specific valve you are working with. Allow the pump to reach steady-state operation before taking any measurements.
-
Measuring Flow and Identifying the Index Circuit
With the system running, technicians insert RP-250B probes into the P/T ports of each Circuit Setter and read differential pressure using a calibrated manometer. System Syzer converts each reading to an estimated GPM value. The actual-to-design GPM ratio is then calculated for every circuit.
The lowest-Ratio circuit (the most flow-starved relative to design) is identified as the index circuit and left fully open as a reference point. Measurement accuracy depends heavily on instrument calibration, a straight pipe upstream of the valve, and stable system conditions.
-
Proportional Throttling
The most common approach is to throttle the most overflowing circuits first, working toward the index circuit (identified in the step before), to bring all actual-to-design ratios into proportional equality. This typically requires multiple passes, since adjusting one valve changes pressure distribution throughout the system and affects all other readings. In practice, convergence may take more or fewer iterations than expected, depending on system complexity.
-
Trimming the Pump
Once the branches of the system are proportionally equalized, the total pump output is adjusted, commonly via a VFD setpoint in conjunction with a main header circuit setter, to deliver the total system design GPM.
The principle is that proportional equality across circuits is maintained as total flow changes, so all circuits approach their design GPM simultaneously as the pump is trimmed. This relationship holds well on simpler systems and may require additional verification on complex ones.
-
Confirming, Locking, and Documenting
Final readings should be taken at every circuit to verify that GPM is within an acceptable tolerance of design values. Memory stops should be engaged on all valves. Documenting the final nameplate position number for every circuit setter is standard practice for commissioning records and future serviceability.
Note: The overview above reflects commonly referenced industry practice. Actual balancing procedures must be adapted to the specific system, applicable codes, and the requirements of the project engineer or TAB contractor of record. This content is provided for informational purposes only.
Frequently Asked Questions
A circuit setter is a preset proportional system balance valve, similar to a regular balancing valve but with two more features: measuring and shut-off. A plain balancing valve throttles but cannot measure or shut off.
Bell & Gossett rates them at ±5%.
Yes. You must specify your fluid type and concentration in the System Syzer tool before calculating - the app automatically corrects for glycol's higher viscosity.
Partially. They don't maintain a fixed flow as differential pressure changes the way a pressure-independent control valve (PICV) does.
Insert RP-250B probes into both P/T ports, connect to a differential pressure manometer, and note the reading. Enter the differential pressure and the nameplate setting number into System Syzer - it outputs your actual GPM immediately.
