What is a Damper Actuator?

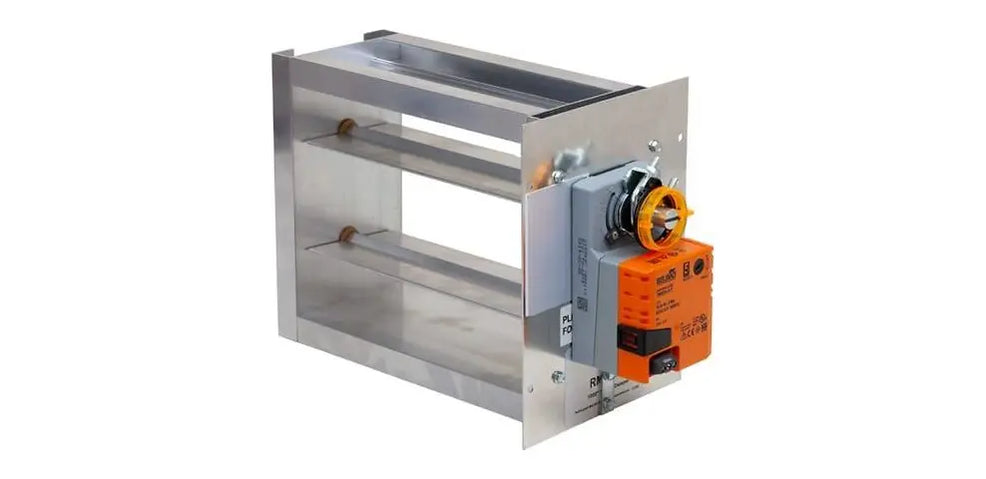

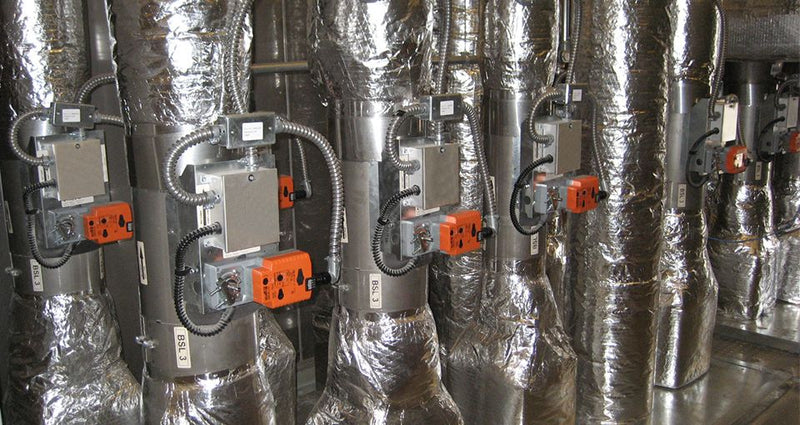

A damper actuator is a device that moves the damper blades to regulate airflow or gas flow. Actuators are also called damper motors. The actuator provides the force and motion needed to move the damper to an open, closed, or intermediate position based on the control strategy and application requirements.

A damper has blades that open and close to control airflow or other gases in closed systems. The actuator is the component that provides the necessary force to move those blades; they work together. Actuators can be driven by electric, pneumatic, or hydraulic power, depending on the specific application and requirements.

Damper actuators are also used in industrial applications, such as flue gas and process-air systems, where they control the flow of exhaust or process gases. Application-specific actuator and damper requirements should be verified for any safety-, emissions-, or process-critical system.

For a broader overview of actuator types and applications, see our guide to HVAC actuators.

How Does a Damper Actuator Work?

A damper actuator receives a command from a control system representing the required damper action or position. Depending on the control type, that command may call for fully open/closed operation, incremental movement, or a proportional position in response to a control signal.

The actuator converts electrical energy, compressed air, or hydraulic pressure into mechanical motion to move the damper shaft or linkage.

Electric actuators typically use a motor, while pneumatic and hydraulic actuators use pressure acting on a diaphragm, piston, or similar mechanism.

The movement is transferred to the damper via a shaft, direct coupling, or linkage, allowing the blades to open and close. Some actuators provide a position-feedback signal to the building controller, while others operate without external feedback. Feedback availability depends on the actuator model and control type.

Some damper actuators also include manual override provisions that allow the shaft position to be adjusted for installation, commissioning, or service.

Actuator safety features vary by model.

Limit or end-position controls help to prevent overtravel, while fail-safe designs are intended to drive or return the damper to a defined position under specified failure conditions. With spring-return actuators, the fail-safe movement commonly occurs when actuator power is lost. Always verify the required fail position and failure behavior for the application.

By controlling damper position, actuators support airflow, temperature, ventilation, pressure, and process-control strategies. The exact operating sequence depends on the actuator type, control mode, damper design, and system requirements.

Types of Damper Actuators

Electric Damper Actuators

Electric damper actuators use an electric motor to control a damper's opening and closing. The operation of an electric damper actuator begins with receiving a control signal that corresponds to a required damper action or position. The motor generates rotational force, and a gear train is commonly used to deliver the torque and travel needed at the damper shaft.

This process can support two-position, floating, or modulating control, depending on the actuator model and the control system.

Electric actuators are fully integrated with modern HVAC controls and are available in a wide range of torque ratings, voltages, control signals, runtimes, and fail-safe configurations. Power consumption and holding behavior vary by actuator design; some models draw reduced power while holding position, while others continue using power for control electronics or holding torque.

Electric damper actuators are widely used in air-handling units, rooftop equipment, VAV applications, outside-air and exhaust systems, and other HVAC or process-air applications. Selection should be based on the actual damper and control requirements rather than actuator type alone.

Pneumatic Damper Actuators

Compressed air acts as the motive force in a pneumatic damper actuator. When the actuator receives a control signal, it directs the compressed air to a piston or diaphragm inside a cylinder. Air pressure causes the piston or diaphragm to move, which then transfers to the damper, opening or closing it. The air pressure can be modulated to control the damper's position precisely.

Pneumatic actuators can be well suited to facilities that already maintain a pneumatic control-air system. Their suitability for a particular environment depends on the actuator, air supply, controls, enclosure, and application requirements. They also require clean, properly regulated compressed air and associated pneumatic components.

Pneumatic damper actuators are common in existing commercial and industrial control systems. It's important to verify the required operating pressure, control action, spring/fail position, torque or force requirement, linkage arrangement, and environmental classification before replacement.

Hydraulic Damper Actuators

In a hydraulic damper actuator, pressurized fluid creates the force needed to move a piston or other mechanical element. Valves direct or regulate the fluid so the actuator can move the damper to the required position. Hydraulic actuation is generally associated with industrial or high-force applications rather than typical commercial HVAC damper control.

Hydraulic actuators can provide high force and controlled movement in demanding applications. They may also require additional hydraulic components and maintenance, including attention to fluid condition, seals, hoses, and leak control. The actuator, hydraulic power unit, and damper should be evaluated as an application-specific system.

Actuator Control Types

Power source describes how an actuator creates motion, but control type describes how the actuator is commanded. For HVAC selection and replacement, this distinction is often critical.

Two-position / on-off: moves the damper between defined open and closed positions.
Floating / three-point: uses separate open and close commands so the actuator can move incrementally toward the required position.
Modulating / proportional: positions the damper in response to a variable control signal, such as a 0-10 V or 2-10 V signal on models designed for those inputs.

A replacement actuator must be compatible with the controller's actual command method. Matching torque or shaft size alone does not establish compatibility of controls.

Spring-Return vs. Non-Spring-Return Actuators

Once you know the actuator type and control, it's important to determine whether it's spring-return.

Spring-return actuators - use stored mechanical spring energy to move the damper toward a predetermined fail position when actuator power is removed.
Non-spring-return actuators - do not provide that same mechanical fail-safe action and may remain in their last position or respond according to their specific design and control sequence.

Always verify whether the required fail position is open or closed and confirm the actuator's documented behavior under the relevant failure condition.

Damper Actuator Maintenance & Troubleshooting Tips

Preventive maintenance and knowing how to troubleshoot damper actuators are essential for reliable operation. Always refer to the manufacturer's installation and maintenance documentation because service requirements vary by actuator type and model.

Safety note: Isolate electrical, pneumatic, or hydraulic energy before servicing an actuator as required by the equipment manufacturer and site procedures. Electrical measurements, wiring changes, and service on fire/smoke or other life-safety damper systems should be performed by qualified personnel using the applicable manufacturer instructions, codes, and system requirements.

Maintenance Tips

Periodically inspect the actuator for wear, corrosion, leaks, or damage. Check mechanical linkages, mounting hardware, seals, wiring, tubing, and connections as applicable.
Lubricate only where and as the damper or actuator manufacturer recommends; many modern direct-coupled actuators do not require routine internal lubrication.
If calibration, adaptation, or position verification is required by the actuator design, perform it according to the manufacturer's procedure and the control sequence.
For pneumatic and hydraulic systems, verify that the air or fluid supply is clean and maintained at the pressure and condition required by the manufacturer.

Where the application includes a fail-safe or emergency sequence, test the complete damper/actuator function at the interval required by the manufacturer, facility procedure, or applicable life-safety requirements.

Troubleshooting Tips

Damper Not Moving Correctly: If the damper is not moving to the desired position, first distinguish a mechanical problem from a control or actuator problem. Check for binding, obstruction, loose linkage or coupling, incorrect control signal, and available power/air/fluid supply.
Noise or Vibrations: Unusual noise or vibration may indicate loose mounting, linkage issues, mechanical binding, worn damper components, or an actuator operating against excessive load.
Leakage in Hydraulic or Pneumatic Systems: Inspect tubing, hoses, fittings, seals, and connections using the manufacturer's recommended procedure. Repair or replace components only after the system has been made safe for service.
Electric or Hydraulic Drive Problem: Verify the specified supply and control inputs before concluding that the motor, electronics, or pump has failed. Component-level testing should follow the manufacturer's service procedure.
Inconsistent Operation: Intermittent movement can result from control-signal issues, loose connections, mechanical binding, incorrect feedback configuration, unstable air/fluid supply, or an actuator fault. Treat the symptom as a starting point rather than a confirmed cause.
Environmental Factors: Verify that ambient temperature, humidity, washdown exposure, corrosive atmosphere, dust, or outdoor exposure are within the actuator and enclosure ratings.
Diagnostic Tools: Some modern actuators provide status LEDs, position indication, fault reporting, communication data, or commissioning tools. Use model-specific diagnostics and documentation when available.

This video from Belimo provides basic actuator troubleshooting tips and tricks:

Damper Actuator Selection

Choosing a damper actuator requires matching the actuator to the damper, control system, fail-safe sequence, mounting arrangement, and operating environment. Start with the damper manufacturer's actuator or torque requirements, whenever available.

Understand the Application: Identify what the damper does - for example, ventilation control, outside-air mixing, isolation, exhaust, pressure control, or another process function. Safety or life-safety applications may have additional requirements for listing, installation, testing, and replacement.
Identify the Actuation Method: Determine if the existing actuator design uses electric, pneumatic, or hydraulic actuation.
Verify Torque Requirements: Use the damper manufacturer's required torque when available. Damper size is an important parameter, but not the only one; blade configuration, seals, system velocity, static pressure, linkage, and installation conditions can influence the required torque.
Match the Control Type and Signal: Verify if the controller requires two-position, floating, or modulating operation; also confirm the exact voltage/current/digital signal supported by the actuator.
Verify Supply Power or Pressure: Confirm the actuator supply voltage and frequency, or the required pneumatic/hydraulic pressure range, before replacement.
Confirm Fail-Safe Requirements: Determine whether a spring return or another fail-safe function is required, and whether the damper must fail open or closed.
Check Shaft, Coupling, and Linkage components: Confirm dimensions, mounting, rotation direction, and any required brackets or adapters.
Check Runtime and Rotation: Confirm initial damper position, travel angle, and whether the actuator runtime is appropriate for the control sequence and damper application.
Evaluate the Environment: Verify that temperature, humidity, outdoor exposure, dust, corrosive atmosphere, washdown, hazardous-location, or enclosure requirements align with the actuator's documented ratings.
Verify Feedback and Auxiliary Functions: Determine whether the system needs position feedback, auxiliary switches, end-position proof, communication, or other accessory functions.

Confirm Listings and Application Requirements: For fire, smoke, combination fire/smoke, or other regulated damper applications, use the actuator/damper arrangement and service procedures permitted by the damper manufacturer and applicable listing/code requirements.

This webinar from Belimo covers the 10 steps for sizing and selecting damper actuators:

What to Verify Before Replacing a Damper Actuator

Before ordering a replacement, record the existing actuator model, if available, and verify the information below. A replacement can physically fit the damper and still be electrically, mechanically, or functionally incompatible.

Damper manufacturer/model and application
Required actuator torque
Supply voltage or pneumatic/hydraulic pressure
Control type and exact control signal
Spring-return or fail-safe requirement and required fail position
Shaft size, coupling, linkage, mounting orientation, and available space
Rotation angle/direction and required runtime
Environmental/enclosure requirements
Feedback signal, auxiliary switches, communication, or accessories
Any listing, code, or manufacturer restrictions for fire/smoke or other safety-related dampers

If those details are not available on the existing actuator label, confirm them in the damper documentation, control drawings, sequence of operation, or with the equipment manufacturer before selecting a substitute.
