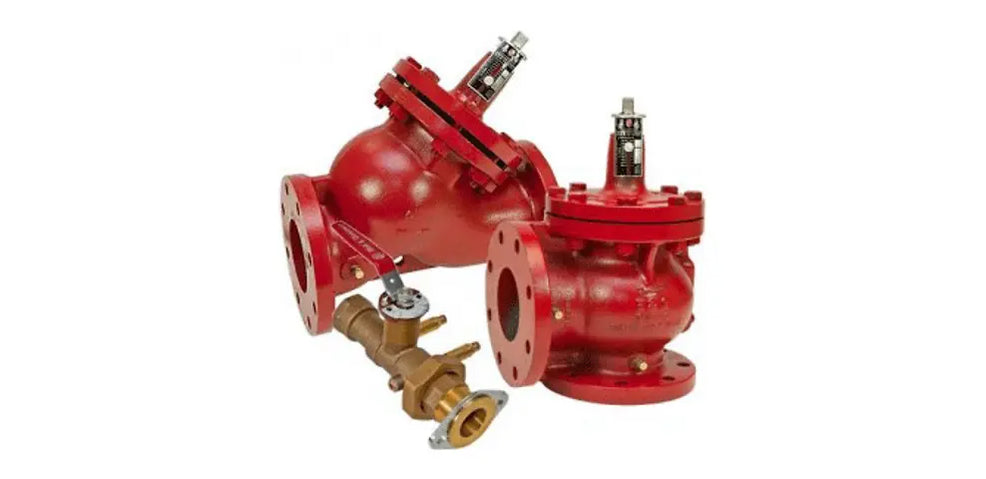

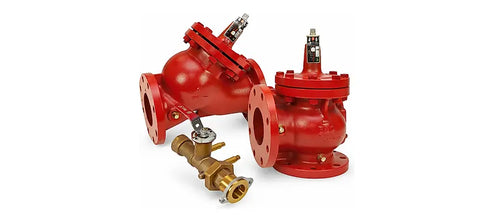

A triple-duty valve is a multi-function pump-discharge device commonly used in hydronic systems. Its main difference is that it combines three hydraulic functions into a single valve body: shut-off, check, and balancing or throttling. It's a strong argument that when pipework and mechanical room space are limited, only a single-body valve can provide multiple flow controls in the system.
Triple Duty Valve Purpose
As the triple-duty valves combine the three different types of control mentioned earlier, they are typically installed on the discharge side of a hydronic pump system.
Additionally, using a multi-purpose, triple-duty valve often provides substantial cost savings. Rather than paying for three individual valves, you’re only paying for one. That leads to dramatically reduced installation times, further reducing costs. Triple duty valves are a great economical choice.
In practical field terms, a triple duty valve helps reduce the number of separate components required around the pump. This can be especially useful in commercial mechanical rooms where piping space is limited and where pump isolation, backflow prevention, and flow adjustment all need to be handled in a compact layout.
| Triple Duty Valve Function | What it Replaces | Why It Matters |
| Shut-off | Isolation Valve | Allows the pump to be isolated for service or replacement |
| Check | Check Valve | Helps prevent reverse flow, gravity circulation, and unwanted pump/system issues |
| Balancing/Throttling | Balance/Flow Control Valve | Helps adjust flow to the intended system design |
How a Triple Duty Valve Works
There are components within a triple duty valve that allow it to function in the same way as three separate valves.
System Shut-Off
Positive shut-off, allowing isolation of the pump from the rest of the system, is available from both disc- and ball-style triple duty valves. If your triple duty valve has a ball, a concealed ball with a hole through the middle rotates to open or close the valve.
Likewise, a triple duty valve disc will pivot and approach the seat with a “cam” action that results in high seating pressure. Thus, tight flow shut-off is possible even when using metal seats and disks.
Shut-off function is helpful during pump maintenance or replacement; it allows the equipment to be fully isolated without relying on a separate valve installed nearby.
Backflow Prevention
The check valve portion of a triple duty valve prevents backflow and gravity circulation in pumping systems by only allowing the flow of fluids in one direction, preventing damage to the pump and unwanted heat transfer through the system. In addition, many triple duty valves have a non-slam check valve, which provides quiet operation.
This function is important when pumps cycle on and off; the idea of the check function is to prevent reverse flow that may occur when the pump stops. In some applications, reverse flow can contribute to noise, unwanted circulation, water hammer concerns, or inefficient system operation.
Flow Rate Maintenance
The balancing or throttling valve function sets the system flow rate within a triple duty valve, optimizing system operating efficiency and providing precise flow with a maximum control range. Most triple duty valves have a pre-set balance and a memory stop to reset the valve in the correct position after shut-off.
This is where these valves become more than just an isolation or check valve. During balancing, the valve can be adjusted to help control excess flow through the pump discharge. Many models include calibrated markings, memory stops, or ports, along with manufacturer performance data, to help technicians understand how a triple-duty valve works in the actual system.
Where Is a Triple Duty Valve Installed?
Triple duty valve installation is usually done on the discharge side of a centrifugal pump. This location allows the valve to support pump isolation, help prevent reverse flow after pump shutdown, and assist with discharge-side flow adjustment during system balancing.
The valve should not be treated as a random in-line valve. Its location, orientation, pipe distance from the pump, and flow direction all matter. When installed too close to the pump discharge or in an incorrect orientation, the check valve portion may chatter, readings may become less reliable, and internal components may wear prematurely
Is a Triple Duty Valve the Same as a Balancing Valve?
A triple-duty valve can perform balancing or throttling functions, but it is not the same as every dedicated balancing valve. A dedicated balancing valve is primarily designed for flow measurement and balancing. A triple duty valve combines balancing with shut-off and check valve functions in one assembly.
In many hydronic pump installations, that combined function is the advantage. However, for applications that require very specific flow measurement, control accuracy, or specialized balancing requirements, the system designer or technician should verify whether a triple duty valve is appropriate or whether a dedicated balancing valve is preferred.
Examples of the Internal Mechanisms on Triple Duty Valves
Triple Duty Valve Common Problems
Improper Mounting
Although triple duty valves can be mounted vertically or horizontally, they cannot be utilized with the stem/handle pointing downward or upside down. Additionally, they cannot be used in a fully open position and must be closed approximately 15% to operate correctly.
Improper Placement Within a System
Triple duty valves must be mounted a sufficient distance from the pump’s discharge to ensure proper operation. Failure to adhere to this minimum distance can result in premature failure of the check valve assembly and erroneous gauge pressure drop readings across the valve. Conversely, mounting a triple duty valve too close to the pump will result in “chattering” of the check valve assembly, causing premature failure of the springs and/or the flapper itself.
Leaks

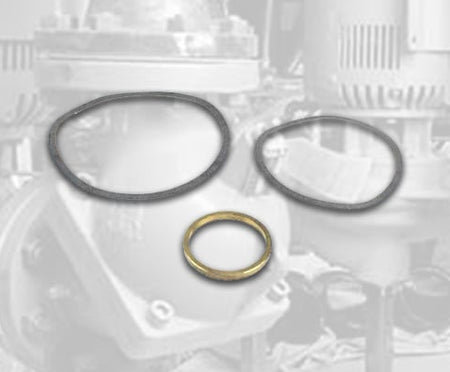

Triple duty valves rarely require any routine maintenance. Still, it is beneficial to check for leaks at the packing nut or bonnet gasket area while regularly maintaining a hydronic system. In addition, it is possible to replace internal components on most triple duty valves, such as the stem packing, disc, or nameplate.
Identifying Triple Duty Valves
Many pump manufacturers offer triple duty valves as a pump system accessory. Each has its own name for these multi-function valves, but they all serve the same purpose by replacing at least three valves – a shut-off valve, check valve, and balancing/throttling valve.
Triple Duty Valves by Manufacturer

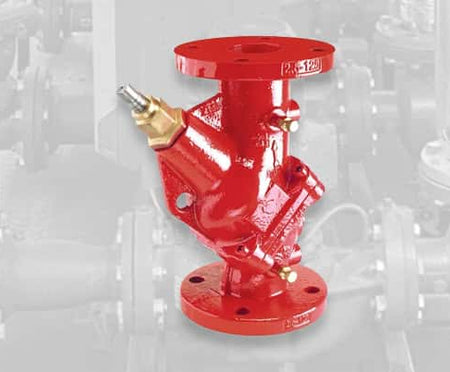

Armstrong Flo-Trex Valves
Armstrong Flo-Trex Valves are multi-function pump fittings for Armstrong commercial pumps. They are available in cast iron or ductile iron and with grooved, flanged, or threaded connections. When used together, Flo-Trex Valves and Suction Guides can eliminate up to nine different components from a pump system installation.
Learn more about Armstrong Flo-Trex Valves
Shop Armstrong Flo-Trex Valves

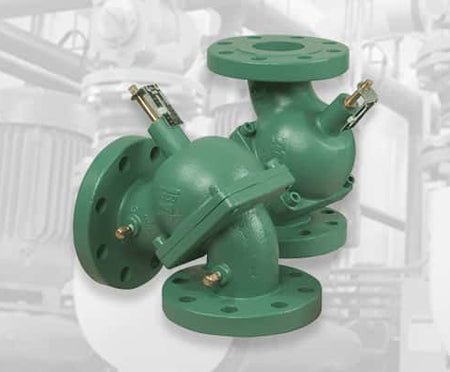

Taco Multi-Purpose Valves
Taco Multi-Purpose valves offer performance and convenience with low pressure drops and a replaceable stem seal packing even under full system pressure. The Plus Two Multi-Purpose Valve is ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1-1/2" through 14", with flanged connections (1-1/2", 2", and 2-1/2" units are threaded connections).
Learn more about Taco Multi-Purpose Valves
Shop Taco Multi-Purpose Valves

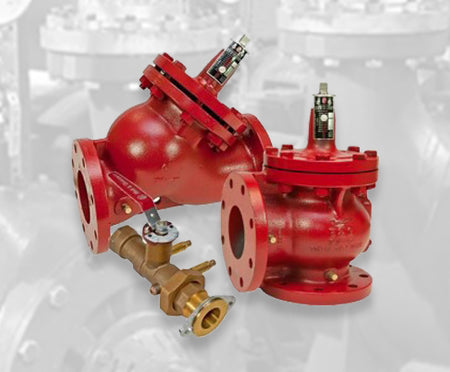

Bell & Gossett Triple Duty Valves
Bell & Gossett Triple Duty Valves combine three valves into one: a calibrated balance valve, a spring-loaded check valve, and an isolation/shut-off valve to provide all of the functions usually required on the discharge side of hydronic pump systems.
Learn more about Bell & Gossett Triple Duty Valves
Shop Bell & Gossett Triple Duty Valves

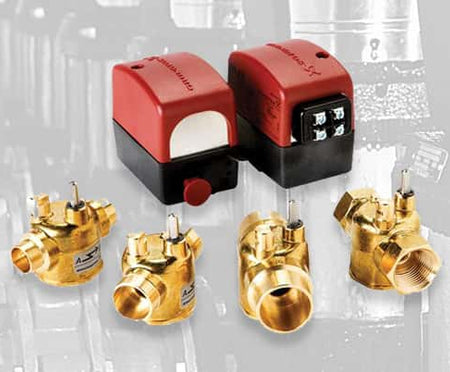

Grundfos Combination Valves
Grundfos Combination Valves combine three valves in one: shut–off, balancing, and check. Fitted between the discharge pipe and the discharge flange of a Grundfos pump, Combination Valves are an economical and space-saving choice.
Learn more about Grundfos Combination Valves
Shop Grundfos Combination Valves
When Should You Use a Triple Duty Valve?
A triple duty valve is often a good choice when a pump installation needs isolation, backflow prevention, and flow adjustment in a compact footprint. It is especially useful for commercial hydronic systems, where the pump's discharge side would otherwise require multiple separate valves and fittings.
A triple duty valve may be useful when:
- Mechanical room space is limited
- The pump discharge requires isolation
- Reverse flow or gravity circulation needs to be prevented
- System flow needs to be adjusted during balancing
- Installation time and component count need to be reduced
- A compact pump discharge package is preferred
A triple duty valve may not be the right choice if the system requires a highly specialized balancing device, a specific control valve arrangement, or a different check valve configuration. In those cases, the system design should be reviewed before replacement.
Frequently Asked Questions
A triple duty valve combines three pump discharge-side functions: shut-off, check, and balancing or throttling. It helps isolate the pump, prevent reverse flow, and adjust system flow.
The main triple duty valve function is to simplify pump discharge piping while supporting isolation, check valve protection, and flow adjustment. This helps reduce component count and saves space in mechanical rooms.
A triple duty valve is typically installed after the pump, on the discharge side. This position allows it to support pump isolation, backflow prevention, and discharge-side flow adjustment.
Chatter can occur when the valve is installed too close to the pump discharge, when flow is unstable, when the valve is incorrectly oriented, or when system conditions cause the check assembly to move rapidly. Proper spacing, orientation, and sizing are important.
Depending on the manufacturer, a triple duty valve may also be called a multi-purpose valve, pump discharge valve, Flo-Trex valve, or calibrated combination valve. The names vary, but the general purpose is similar: combining pump isolation, check, and balancing functions.
