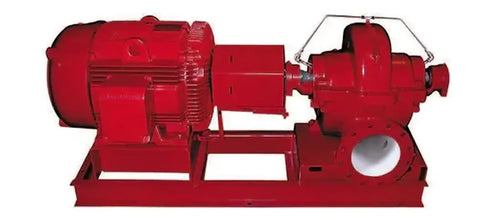

Bell & Gossett Series HSC-S double-suction, base-mounted pumps are available in 2" through 10" sizes, with motor sizes through 300 HP, and flows to 6500 GPM and heads up to 600 feet. They feature a bronze-fitted construction with working pressures up to 400 psi and 250# ANSI flanges. In addition, this pump features externally flushed mechanical seals—the closed-end steel baseplate with full seam welds provides strength and an open top for easy grouting. B&G Series HSC-S offers horizontal mounting (Model 150) or vertical mounting (Model 300).
The pump bearings and mechanical seals can be serviced without disturbing the piping or electrical motor connections. An ANSI-OSHA-compliant coupling guard shields the flexible coupler.
Series HSC-S Features:
- Long-coupled, base-mounted, single-stage, double-suction, horizontally-split case design
- Cast iron bronze-fitted construction for quiet operation
- Standard operations at 225°F (107°C) and 175 psi (12 BAR) working pressure
- Optional operations at up to 250°F (121°C) and 280 (19 BAR) or 400 psig (27 BAR) working pressures
- Working pressures shall not be de-rated at temperatures up to 250°F (121°C)
- Pump internals can be serviced without disturbing piping connections or electrical motor connections
