Circuit Setters vs. Balancing Valves

A Circuit Setter is a type of balancing valve, but not every balancing valve is a Circuit Setter. Circuit Setters are calibrated manual balancing valves used to set, measure, and verify flow in hydronic and plumbing systems.

Other types of balancing valves include manual throttling, fixed-orifice, automatic flow-limiting, pressure-independent, and thermal valves. The right approach depends on how the system operates, whether flow needs to be measured in the field, and whether flow should remain controlled as differential pressure changes.

The key distinction is therefore not simply “Circuit Setter versus balancing valve.” A Circuit Setter is already part of the balancing-valve category. The practical comparison is between calibrated manual balancing with a Circuit Setter and other methods of balancing or controlling system flow.

What is a Circuit Setter?

Circuit Setters are calibrated manual balancing valves designed for preset proportional system balancing. They allow a valve position to be established for the required design flow and provide pressure/temperature readout ports for measuring the differential pressure across the valve.

Cv is commonly used when describing valve flow characteristics. It represents the flow rate, in GPM of water at standard conditions, that produces a pressure drop of 1 psi across a valve. For a calibrated balancing valve, however, actual field flow should be determined using the manufacturer’s data for the specific valve size and setting rather than relying on a nominal Cv alone.

For a deeper look at operation, flow measurement, valve adjustment, and application, see Liberty Supply’s What Is a Circuit Setter? guide.

Other Types of Balancing Valves

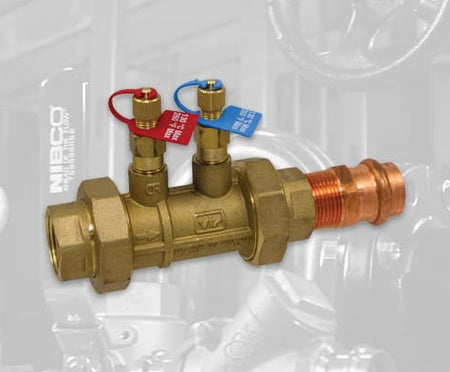

Automatic Balancing Valves: Use an internal flow-regulating mechanism to maintain a specified flow within the valve’s operating differential-pressure range.

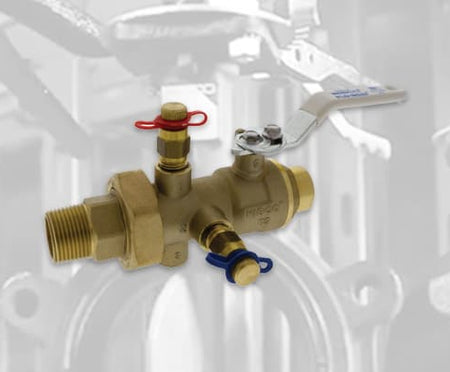

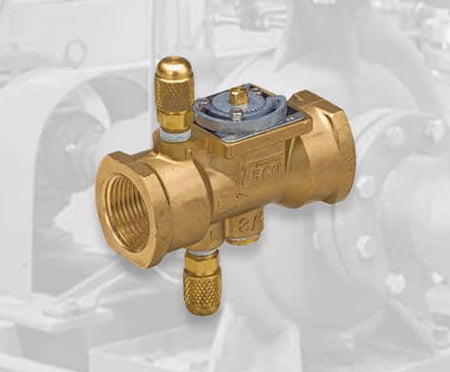

Manual Balancing Valves: Use an adjustable restriction that is manually set during balancing. Depending on the valve design, pressure/temperature ports or calibrated position indicators may also be provided for measurement and commissioning.
Fixed-Orifice Balancing Valves: Static balancing valves that use a known fixed restriction, such as a Venturi element, with pressure/temperature ports. Differential pressure across the metering element can be used to determine flow.
Direct-Reading Balancing Valves: Incorporate a flow-indication method that allows the technician to determine flow without calculating it solely from a separate differential-pressure reading.
Pressure-Independent Control Valves (PICVs): Combine flow regulation with control-valve functionality and differential-pressure regulation. They are commonly applied where the system must control coil or terminal-unit flow as differential pressure varies.

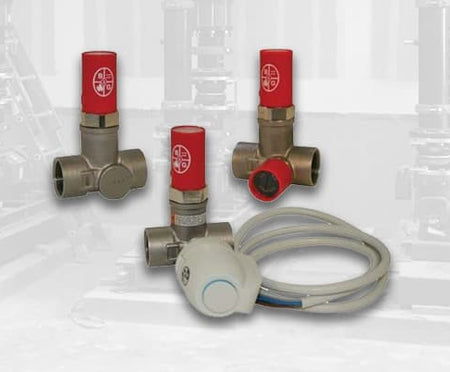

Thermal Balancing Valves: Used primarily in domestic hot-water recirculation systems. Rather than balancing based solely on hydronic pressure relationships, these valves modulate flow in response to temperature.

For additional context on balancing terminology and valve operation, see Liberty Supply’s What Is a Pressure Balancing Valve? article.

Circuit Setter vs. Other Balancing Valves

The most important difference between balancing approaches is how the required flow is established and what happens when system conditions change after balancing.

Balancing approach	How flow is established or controlled	Auto-compensates for changing ΔP?	Field flow verification	Typical reason to use
Circuit Setter / calibrated manual balancing valve	Valve is manually preset or adjusted using calibrated manufacturer data	No	Yes, using P/T ports and manufacturer data	Commissioning, flow verification, repeatable manual balancing and troubleshooting
Manual balancing valve	Adjustable restriction is manually positioned during balancing	No	Depends on valve design	Straightforward static balancing where automatic flow regulation is not required
Fixed-orifice balancing valve	Differential pressure is measured across a fixed metering element	No	Yes	Applications where a stable metering characteristic is useful for measuring flow
Automatic flow-limiting valve	Internal mechanism maintains a selected flow within its operating range	Yes	Product-dependent	Systems where differential pressure changes and flow should remain limited automatically
Pressure-independent control valve	Combines differential-pressure regulation, flow limitation, and control-valve operation	Yes	Product-dependent	Variable-flow systems where terminal-unit flow and control must remain stable
Thermal balancing valve	Valve responds to water temperature	Not in conventional hydronic balancing sense	Different measurement method	Domestic hot-water recirculation systems

A Circuit Setter can be particularly useful when the commissioning or service process requires a technician to adjust the valve and verify actual system flow at the same location.

However, because it is a manual balancing device, it does not automatically maintain a constant flow when the differential pressure changes. In a variable-flow system where pumps and control valves continually change the system pressure conditions, an automatic balancing valve or a pressure-independent control valve may be more appropriate, depending on the system design.

That distinction matters because two valves that can both “balance” a system may respond very differently once the system begins operating at part load.

When Should You Use a Circuit Setter?

A Circuit Setter may be appropriate when:

The system requires manual hydronic balancing.
Design flow must be verified during commissioning.
Technicians need pressure/temperature measurement points at the balancing valve.
The valve needs to be closed for service and returned to a previously established balancing position.
The system design is compatible with static or proportional balancing.
Manufacturer performance data is available for the specific valve and operating conditions.
Other balancing technologies may be more appropriate when:
Differential pressure changes substantially during normal system operation.
A specified flow must be maintained automatically within an operating range.
Flow control and balancing need to be combined in the same terminal-unit valve.
The application is a domestic hot-water recirculation system where temperature-responsive balancing is required.

The balancing method should be selected based on system requirements rather than on pipe size or valve type alone.

What To Verify Before Replacing a Balancing Valve

Design flow rate (GPM)
Pipe size and connection type
Available differential pressure
Constant-flow or variable-flow system operation
Whether field flow measurement is required
Whether automatic flow regulation is required
System fluid and glycol concentration, if applicable
Operating temperature
Operating pressure
Required valve materials
Whether shutoff or control-valve functionality is required
Manufacturer flow range and calibration data for the selected valve

Fluid properties are particularly important when using differential pressure to determine flow. Glycol concentration, specific gravity, viscosity, and temperature can affect the relationship between differential pressure and actual flow, so manufacturer-specific correction data should be used when required.

Do not select a balancing valve based on pipe size alone. The valve must also be capable of operating at the required design flow and pressure conditions.

Bell & Gossett Circuit Setters

Bell & Gossett Circuit Setter Plus valves are calibrated manual balancing valves designed for preset proportional system balancing, flow measurement, and system commissioning.

The Circuit Setter method allows valves to be preset using system design information and Bell & Gossett performance data. During commissioning, integrated readout ports can also be used to measure differential pressure and verify actual system flow.

Valve settings can be determined using Bell & Gossett Circuit Setter performance data, balancing tools, and the System Syzer application.

Bell & Gossett - Circuit Setter Plus Valves

Bell & Gossett Circuit Setter Features

Lead-free brass models for smaller pipe sizes and cast/ductile-iron models for larger hydronic applications
Calibrated manual flow adjustment and measurement
Sizes from approximately 1/2 inch through 12 inches, depending on configuration
Ball-style and globe-style configurations depending on valve size
Multiple connection options depending on size and model
Integrated valved pressure/temperature readout ports
Preset proportional balancing capability
Memory-stop functionality on applicable configurations, allowing a valve to be closed for service and returned to its established setting
Positive shutoff capability on applicable configurations
Drain/purge provisions on applicable configurations

Lead-free brass Circuit Setter Plus models are available for potable-water applications. Always verify the pressure rating, temperature rating, connection, valve material, certification requirements, fluid compatibility, and performance range for the specific model being selected.

Circuit Setter Instructional Videos

How to Identify or Change Flow Rates on Xylem Bell & Gossett Circuit Sentry Valves

Sealant & Torque Requirements for Xylem Bell & Gossett Balancing Valves & Accessories

Bell & Gossett Flow Balancing Products featuring Temp Setter

Circuit Setter or Balancing Valve: Which Should You Choose?

A Circuit Setter is not an alternative to a balancing valve - it is one type of balancing valve.

Its primary advantage is the combination of manual adjustment, calibrated flow measurement, and repeatable valve positioning, making it useful for hydronic commissioning, flow verification, troubleshooting, and service.

Other balancing technologies solve different problems. Automatic balancing valves can compensate for changes in differential pressure; PICVs combine balancing with terminal-unit control; and thermal balancing valves are designed around temperature control in domestic hot-water recirculation systems.
The right choice therefore depends on the design flow, system pressure behavior, control strategy, fluid properties, operating conditions, and how the system will be commissioned and maintained.

When those conditions are known, the balancing method can be selected based on the system's hydraulic requirements rather than solely on the valve’s nominal pipe size or product category.
