Zone valves play an important role in hydronic HVAC systems. They help control when and how water moves through coils, terminal units, radiators, unit heaters, chilled beams, and other heating or cooling loads.

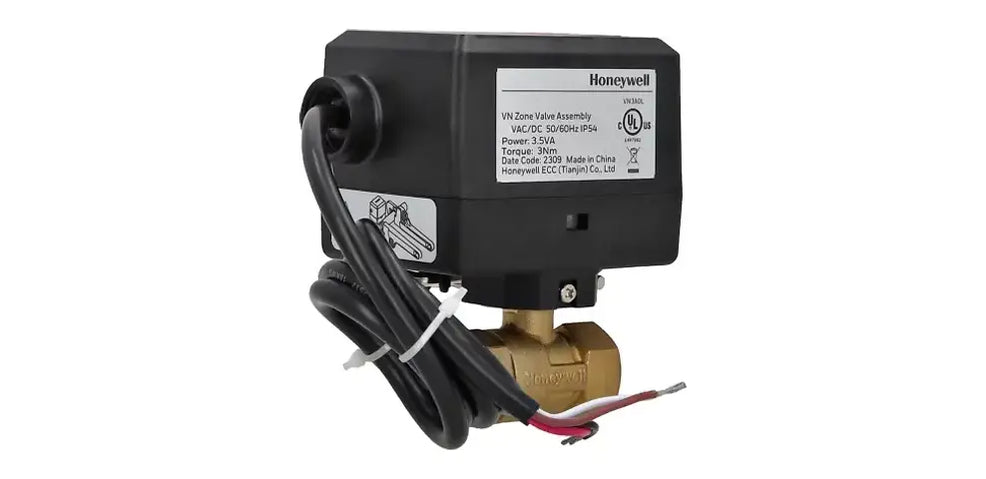

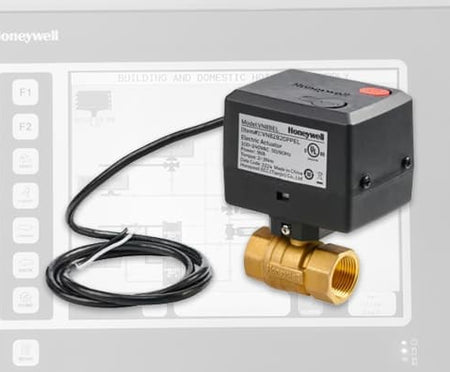

The Honeywell VN Series Zone Valves are compact valve-and-actuator assemblies designed for hot- and chilled-water control in residential and commercial HVAC equipment. They are available as 2-way or 3-way ball valves, factory assembled and tested with electronic rotary actuators. Depending on the model, VN Series valves can provide either two-position or modulating control, with fail-in-place or electronic fail-safe actuator options.
This guide explains what Honeywell VN Series zone valves are, how they work, where they are used, and what to check when selecting or replacing one.
What is a Zone Valve?
Zone Valves are compact hydronic control valves used to regulate water flow in HVAC systems, especially those designed for specific zone control.
The Honeywell VN Series is a compact, factory-assembled 2-way or 3-way ball valve. The actuators provide either 2-position or modulating control with position feedback for hot- or chilled-water systems, allowing water operations with up to 50% glycol.
In simpler terms, the VN Series combines two main parts:
- Valve body - the brass ball valve that controls water flow.
- Actuator - the electric motorized device that opens, closes, or modulates the valve position.
Modern systems rarely use manual valve operation for flow control: the included actuator receives a signal from a thermostat, controller, or building automation system, and, based on that signal, moves the valve to control water flow through the connected zone or coil.
What Does a Zone Valve Do in a Hydronic HVAC System?
A zone valve controls the flow of water to a specific part (or zone) of a heating or cooling system. In hydronic HVAC systems, water is used to move heat. Hot water may serve heating coils, radiators, unit heaters, or reheat coils. Chilled water may serve cooling coils, fan coil units, or chilled beams.
A zone valve helps control whether water flows through that load and, in modulating applications, how much water flows based on the heating or cooling demand of that specific part (or zone).
A zone valve may be used to:
- Turn the flow on or off to a heating or cooling zone.
- Modulate flow to match load demand.
- Divert or mix flow in a 3-way piping arrangement.
- Control water flow through coils and terminal units.
- Support comfort, energy efficiency, and building automation strategies.
In a basic on/off application, the valve opens when the zone calls for heating or cooling and closes when the call is satisfied. In a modulating application, the valve can move to intermediate positions, allowing more precise control of water flow.
Common Applications for Honeywell VN Series Zone Valves
The Honeywell VN Series is designed for closed-loop water systems. They are optimized for applications in several common types of terminal equipment.
- Fan coil units
- Variable air volume systems
- Unit heaters
- Reheat coils
- Radiators
- Chilled beams
- Commercial HVAC terminal units
- Residential and light commercial hydronic systems
Further, the applications listed above may demand different levels of control. and vale arrangement.
For example, a fan coil unit may need a small 2-way valve to open or close water flow based on thermostat demand. A reheat coil may use a modulating valve when more precise control of the discharge-air temperature is required. A 3-way valve may be selected where mixing or diverting flow is part of the system design.
Honeywell VN3 vs. VN8: Modulating vs. Two-Position Control
When selecting a replacement VN Series valve, it is important to note the difference between the VN3 and VN8 models.
In the Honeywell VN nomenclature, VN3 denotes modulating control, while VN8 denotes two-position control.
VN3 Modulating Control
VN3 modulating models accept analog control signals. Options of 0-10 VDC and 0-20 mA DC available. This makes VN3 models useful when the control system needs more than simple open/closed operation. Instead of fully opening or fully closing, the actuator can position the valve based on the control demand.
VN8 Two-Position Control
VN8 two-position models are used for on/off control. The actuator drives the valve open or closed based on the control wiring and signal. Several voltage options are available, including 24 VAC, 110 VAC, 230 VAC, 24 VAC/DC, and 100-240 VAC.
| Model | Control Type | What It Does | Best Fit |
| VN3 | Modulating | Position the valve between open and closed | Proportional flow control |
| VN8 | Two-Position | Drives the valve open or closed | On/Off flow control |
2-Way vs. 3-Way Honeywell VN Series Zone Valves
Honeywell VN Series valves are available in both 2-way and 3-way configurations.
2-Way VN Series Valves
A 2-way valve has one inlet and one outlet flow path.
It is typically used to control water flow through a load. In a heating or cooling coil application, the valve may open to allow water through the coil and close when the load is satisfied. In a modulating application, the valve may vary its position to control the amount of water passing through the coil.
The 2-way valves are marked with flow direction, and the flow arrow must point in the direction of the medium for proper operation.
3-Way VN Series Valves
A 3-way valve has three ports and can be used in mixing or diverting arrangements. Port B is the common port on 3-way valves and includes diagrams for both 3-way mixing and 3-way diverting flow orientation.
A 3-way valve may be used when the system design requires flow to be redirected or blended rather than stopped.
| Valve Type | Main Function | Common Use |
| 2-way valve | Opens, closes, and modulated flow | Controlling flow to terminal units |
| 3-way valve | Mixes or diverts flow between ports | Bypass, mixing, and diverting flow |
Fail-in-Place vs. Electronic Fail-Safe Actuators
Another important selection point is the actuator return behavior. Honeywell VN Series valves are available with fail-in-place and electronic fail-safe actuator options. The electronic fail-safe versions can be configured to return the valve to a closed or open position after power loss, depending on the model.
| Actuator Return Type | What It Means | Why It Matters |
| Fail-in-place | The actuator remains in its last position when power is lost | Useful when the system should hold the last commanded valve position |
| Electronic fail-safe closed | The actuator returns the valve to the closed position after power loss | Useful when the flow should stop during a power-loss condition |
| Electronic fail-safe open | The actuator returns the valve to the open position after power loss | Useful when the flow should continue during a power-loss condition |
Key Honeywell VN Series Specifications
Below are the specifications for the VN Series zone valve. Besides describing the valve, the information also matters for selection, replacement, and system compatibility.
| Specification | Honeywell VN Series Detail |
| Valve configurations | 2-way and 3-way |
| Valve sizes | 1/2", 3/4", and 1" |
| Connection type | Internal/female NPT |
| Suitable fluid | Water, up to 50% glycol |
| Medium temperature | 32°F to 200°F |
| Nominal pressure | PN20 / 290 psi |
| Close-off pressure | 87 psi |
| Leakage rate | 0.05% of Cv |
| Rangeability | 30:1 |
| Valve body material | Forged brass |
| Ball material | Nickel-plated brass |
| Stem material | Stainless steel |
| Ball sealing | PTFE |
| O-ring seal | EPDM |
| Protection rating | IP54 |
| Operating torque | 27 lb-in / 3 Nm |
| Open/close time | ≤40 seconds |
| Electronic fail-return | 45 seconds maximum |
How to Read Honeywell VN Series Model Numbers
Honeywell part number nomenclature breaks down the model number by valve series, control signal, valve pattern, voltage, valve size, connection type, and fail-safe behavior. The Honeywell zone valves VN Series model number logic can be checked using the tables below:
| Code Position | Meaning | Options |
| VN | Valve series | VN Series Zone Valves |
| 3 or 8 | Control signal | 3 = Modulating, 8 = Two-position |
| 2 or 3 | Valve pattern | 2 = 2-way, 3 = 3-way |
| A, B, or C | Voltage family | A = 24V family; B = 110V or 100–240V family depending on fail-safe type; C = 230V fail-in-place family. The exact voltage must be read together with the control type and return code (see next table) |
| 15, 20, or 25 | Valve size | 15 = 1/2", 20 = 3/4", 25 = 1" |
| NT | Connection type | NPT |
| 0L, EL, or FL | Return behavior | 0L = Fail-in-place, EL = Electronic fail-safe closed, FL = Electronic fail-safe open |
VN Series Voltage Code: A, B, and C
In the Honeywell VN Series model number, the letter after the valve pattern identifies the actuator voltage family. However, the meaning of that letter changes depending on the control type and return behavior.
| Voltage Code | Used With | Meaning |
| A | VN3 modulating models | 24 VAC/DC for both fail-in-place and electronic fail-safe modulating actuators |
| A | VN8 two-position models | 24 VAC for fail-in-place models, or 24 VAC/DC for electronic fail-safe models |
| B | VN8 two-position models | 110 VAC for fail-in-place models, or 100–240 VAC for electronic fail-safe models |
| C | VN8 two-position models | 230 VAC for fail-in-place models |
For example, in the model number VN82A15NT0L, the A indicates the 24-volt voltage family. Since the model is a VN8 two-position and ends in 0L fail-in-place, that means 24 VAC.
So, the voltage letter should always be read together with the control type and return code:
- VN3 + A = 24 VAC/DC modulating
- VN8 + A + 0L = 24 VAC two-position fail-in-place
- VN8 + A + EL/FL = 24 VAC/DC two-position electronic fail-safe
- VN8 + B + 0L = 110 VAC two-position fail-in-place
- VN8 + B + EL/FL = 100–240 VAC two-position electronic fail-safe
- VN8 + C + 0L = 230 VAC two-position fail-in-place
The exact voltage depends on the control type and return code.
For example, the valve PN VN82A15NT0L will have the following specifications:
| Code Section | Specification |
| VN | VN Series zone valve |
| 8 | Two-position control |
| 2 | 2-way valve |
| A | 24 VAC two-position fail-in-place |
| 15 | 1/2" valve size |
| NT | NPT connection |
| 0L | Fail-in-place |
Installation and System Water Considerations
The VN Series is intended for hot and cold water closed-loop applications with a temperature range of 32°F to 200°F and a nominal pressure up to 290 psi.
Water should be filtered, treated, and conditioned to ensure good operating performance and to avoid damage in the ball seals. Strainers or filters are recommended (50-micron or finer, system-side stream filter). Good flushing and chemical water treatment practices are recommended.
Important installation considerations include:
- Use only in closed-loop hot or cold water systems
- Confirm that the system pressure and temperature are within ratings.
- Flush the system before installation
- Clean upstream lines of welding slag, pipe scale, sand, and other suspended particles
- Use approved pipe sealant on NPT connections
- Hold the valve by the hexagonal fitting only when tightening
- Do not handle the valve body with a pipe wrench
- Install the valve so the actuator/bracket is above the valve body
- Do not install the valve with the stem below horizontal or upside down
- Eliminate air from the system
- Follow proper flow direction on 2-way valves
- Confirm Port B as the common port on the 3-way valves
Wiring and Control Considerations
VN Series wiring depends on the actuator type.
Modulating actuators use 24 VAC/DC power and accept analog input signals such as 0-10 VDC, 2-10 VDC, 0-20 mA, or 4-20 mA, depending on DIP switch configuration.
Two-position fail-in-place actuators use 3-wire control; electronic fail-safe two-position actuators use 2-wire control.
All the wiring diagrams available from Honeywell, including all the variations, can be found below:
Frequently Asked Questions
A Honeywell VN Series zone valve is a compact hydronic ball-valve-and-actuator assembly used to control hot or chilled water flow in HVAC systems.
VN3 models are modulating valves. VN8 models are two-position valves. VN3 valves can position between open and closed based on an analog control signal, while VN8 valves operate open or closed.
They are available in both 2-way and 3-way configurations.
Honeywell VN Series valves are available in 1/2", 3/4", and 1" sizes with internal/female NPT connections.
Fail-in-place means the actuator remains in its last position if power is lost.
An electronic fail-safe means the actuator returns the valve to a defined position after power loss, either closed or open, depending on the model.
In some cases, yes. Honeywell provides replacement actuator model numbers. However, the replacement actuator must match the control type, voltage, return behavior, and valve assembly.
