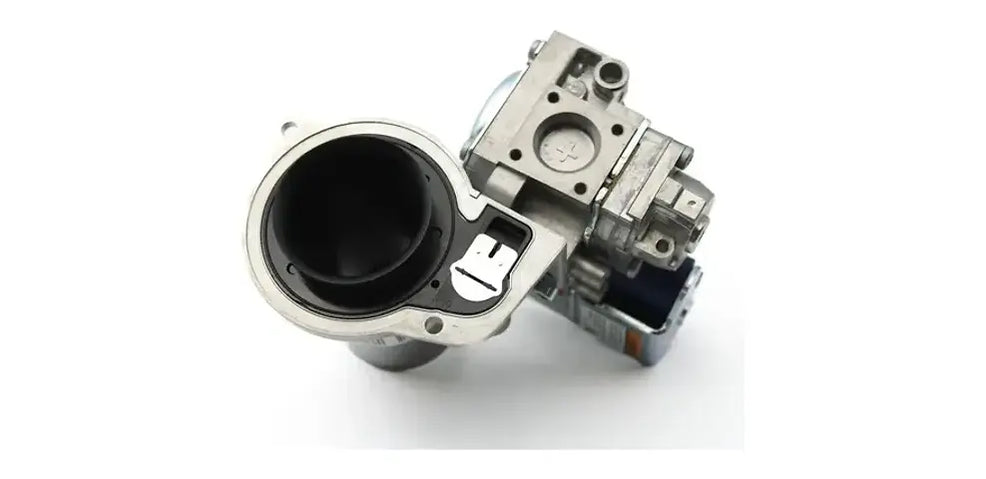

A venturi gas valve is a common field term for a gas valve and venturi assembly used in gas-fired equipment such as boilers, water heaters, premix burners, and some combustion systems. In many applications, the gas valve controls fuel delivery. At the same time, the venturi section helps create the pressure relationship needed to mix fuel gas with combustion air before the mixture reaches the burner.
The term “Venturi Gas Valve” can confuse some engineers and technicians because the venturi is not always a “valve” by itself. In many boiler parts catalogs and service documents, the component may be described as a gas valve/venturi kit, gas valve and venturi assembly, venturi mixing unit, or gas/air mixing assembly. The exact wording depends on the manufacturer and the equipment design; in summary, it is used to identify a gas valve fitted with a venturi assembly during operation.
Video credit: Rinnai
The important point is this: a venturi gas valve is not the same thing as a manual gas shutoff valve, a standard gas cock, or a general-purpose control valve. It is part of the combustion system.
That means replacement is not just about matching pipe size or appearance. It must match the equipment model, fuel type, burner design, and OEM specifications.
What Does a Venturi Gas Valve Do?
A venturi gas valve helps manage the relationship between fuel gas and combustion air.
In a gas-fired boiler or burner, to ensure optimal combustion, it's important to control the mixture of gas and air. Too much gas, not enough air, or unstable mixing can affect ignition, flame quality, efficiency, emissions, and safety.
The gas valve regulates gas flow, while the venturi helps create the pressure drop and mixing condition needed for the burner system.
Image credit: Glass Service
In most of the premix combustion systems, the fan moves combustion air through the venturi. As air passes through the narrowed venturi throat, velocity increases and pressure decreases. That low-pressure area helps draw gas into the air stream. The result is a controlled gas/air mixture before the burner.
This is why the term “venturi gas valve” often appears in replacement-part searches. The customer may see the gas valve, venturi body, adapter, gasket, or manifold as one connected assembly, even though each part has a specific role.
Venturi Gas Valve Principle of Work
A venturi gas valve assembly works through the venturi effect. The simplified flow path looks like this:
- Combustion air enters the fan or inlet side.
- Air passes through the venturi throat.
- Velocity increases through the restriction.
- Static pressure drops at the throat.
- Fuel gas is introduced into the low-pressure area.
- The gas-and-air mixture moves toward the burner.
The gas valve does not simply dump gas into the burner. Some other components must work in conjunction with that to maintain the correct operating condition across the appliance’s firing range. They are: the venturi, fan, pressure signals, and combustion controls.
The Venturi Differential
Although a venturi gas valve has the same components as a standard gas valve, they are not the same thing.
A standard gas valve controls fuel flow.
A venturi gas valve assembly controls or supports fuel delivery and uses a venturi section to create the pressure conditions needed for better gas/air mixing.
| Component | Main Function | Key Difference |
| Standard Gas Valve | Controls, opens, closes, or regulates gas flow to the appliance or burner. | It manages fuel delivery, but it may not include the venturi section needed for optimized gas/air mixing. |
| Venturi Gas Valve | Creates a pressure drop as combustion air passes through a narrowed throat. | It improves the air/gas mixing into the combustion air stream. |
Why the Venturi Matters in Premix Combustion
Many modern high-efficiency gas boilers use premix combustion. In a premix system, gas and air are mixed before reaching the burner surface. This helps support cleaner, more controlled combustion across different firing rates, in other words, more efficient operation.
The venturi helps to create the pressure condition that allows gas to be drawn and mixed with combustion air predictably, which is why your usage is so important. When paired with the correct fan and gas valve, the venturi assembly helps maintain the intended fuel-to-air relationship.
Any small differences in geometry, sealing, or gas-path configuration can affect the Venturi Gas Valve's performance. If it's damaged or incorrectly installed, the appliance may not fire correctly.
That is why a Venturi gas valve replacement should be treated as a combustion repair rather than a simple plumbing part swap.
Venturi Gas Valve vs. Gas Shutoff Valve and Gas Regulator
A venturi gas valve is often confused with other gas-train and combustion components, but each part has a different job. The easiest way to understand the difference is to separate gas isolation, gas pressure control, and combustion-specific fuel delivery.
| Component | Main Purpose | Key Difference |
| Manual gas shutoff valve | Manually stops or allows gas flow to the appliance. | A shutoff valve is used for gas isolation. It does not regulate combustion, mix gas and air, or function as part of the burner’s gas/air mixing system. |
| Gas regulator | Reduces or controls gas pressure before it reaches the appliance or gas train. | A regulator manages gas pressure. It does not create the venturi pressure drop or perform gas/air mixing on its own. |
In summary:
- A manual gas shutoff valve is for isolation.
- A gas regulator is for pressure control.
- A venturi gas valve is a specific combustion component that may combine gas control and venturi-based mixing functions into a single matched assembly.
This distinction matters when sourcing replacement parts. A part that looks similar or has the same pipe size may still be wrong if it does not match the equipment model, fuel type, firing rate, burner design, and manufacturer specifications.
Where Are Venturi Gas Valves Used?
Venturi gas valves are commonly found in equipment that uses premix or fan-assisted combustion.
Common applications include:
- Gas-fired condensing boilers
- Commercial and residential boilers
- Gas-fired water heaters
- Modulating premix burners
- Unit heaters and combustion appliances
- Gas engines and industrial combustion systems
- OEM burner assemblies
The most common customer search intent will usually be boiler and water heater replacement parts. Searches such as venturi gas valve, gas valve venturi kit, boiler venturi valve usually come from technicians and engineers trying to identify or replace an OEM combustion-related part.
Common Signs of Venturi Gas Valve Problems
A failing or incorrectly assembled gas valve/venturi assembly can create several symptoms, but those symptoms can overlap with other combustion problems.
Possible signs include:
- Ignition failure
- Burner lockout
- Poor flame signal
- Rough light-off
- Combustion noise
- Unstable flame
- Abnormal O2 or CO2 readings
- Gas odor or leak concern
- Cracked venturi body
These symptoms do not automatically prove the venturi gas valve is not working as it should. The venturi gas valve should be diagnosed as part of the entire combustion system.
Note: Similar problems can come from the igniter, flame sensor, gas pressure, blower, a blocked intake or exhaust, the control board, wiring, condensate issues, or an incorrect setup.
Replacement Considerations for a Venturi Gas Valve
When replacing a venturi gas valve, it's especially important to pay attention to the model identification; this is the only way to ensure proper performance afterward.
The most important details to be collected are:
- Equipment manufacturer
- Boiler or water heater model
- Serial number
- Fuel type
- Gas valve model
- Venturi or manifold configuration
- BTU input range
- Combustion setup procedure
Note: A common mistake in the field is selecting the replacement valve based only on pipe size. Two assemblies may look similar and still have different internal geometry, pressure characteristics, firing-rate compatibility, or included parts.
Venturi Gas Valve Installation and Safety Notes
A venturi gas valve is part of the combustion system, so installation should follow the appliance manufacturer’s instructions and applicable codes.
Important service considerations include:
- Shut off gas and power before service.
- Inspect gaskets, O-rings, and seals.
- Do not reuse damaged sealing components.
- Check for proper orientation.
- Confirm all electrical connections.
- Verify gas piping and unions are properly sealed.
- Perform leak testing according to approved procedures.
- Carry out complete combustion analysis.
- Confirm proper operation through the full firing range when applicable.
This is not an area where “close enough” is acceptable. A venturi gas valve that is physically installed but not properly verified can still create unsafe or inefficient combustion.
Frequently Asked Questions
A venturi gas valve is a field term for a gas valve and venturi assembly used in gas-fired equipment. It helps regulate gas delivery and supports air/fuel mixing before combustion.
Combustion air moves through the venturi throat, increasing velocity and reducing pressure. That low-pressure area helps draw gas into the air stream. The mixed gas and air then move toward the burner.
Not exactly. A gas valve controls gas flow. A venturi gas valve assembly includes or connects to a venturi section that helps mix gas and combustion air. In many boilers, the two are supplied as a matched kit.
Yes, but the part and setup may differ by fuel type. Always confirm whether the appliance is natural gas or LP and whether any conversion parts or specific adjustments are required.

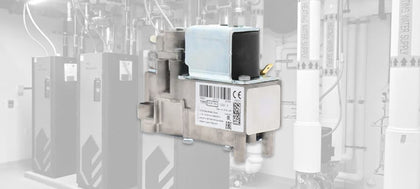

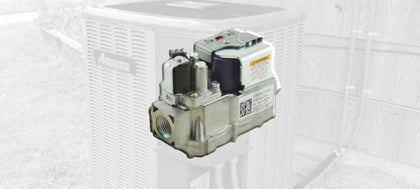

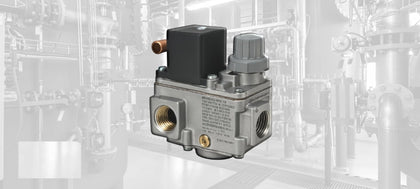

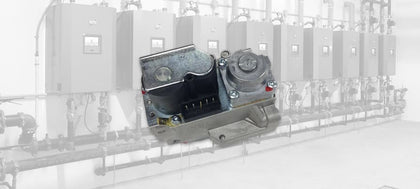

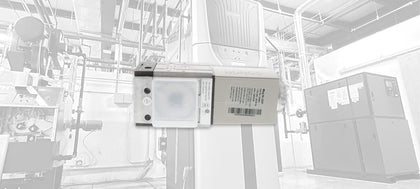

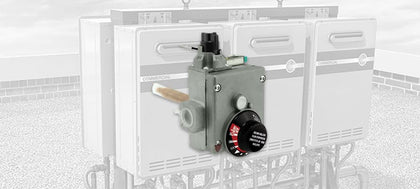

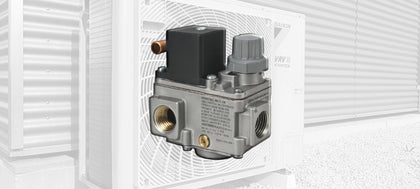

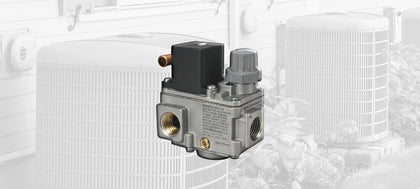

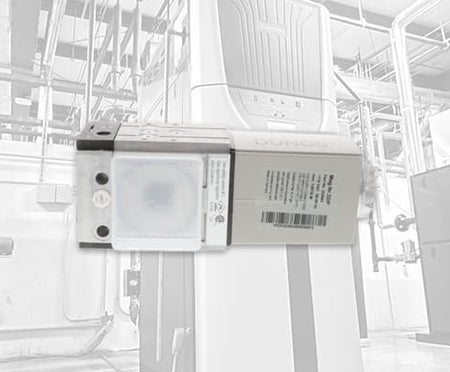

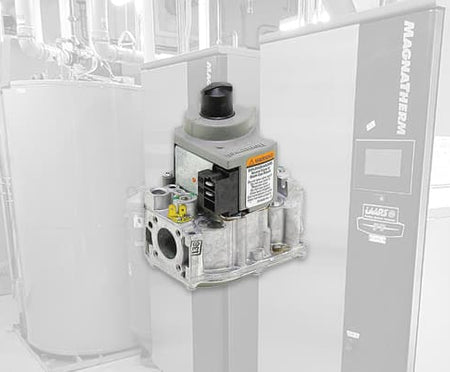

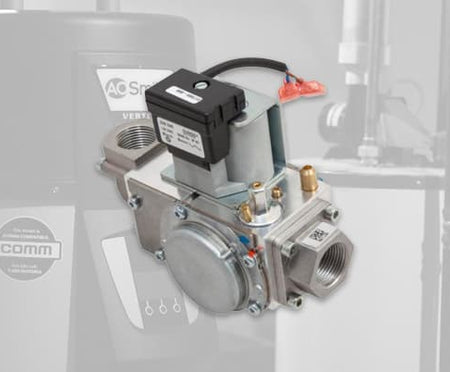

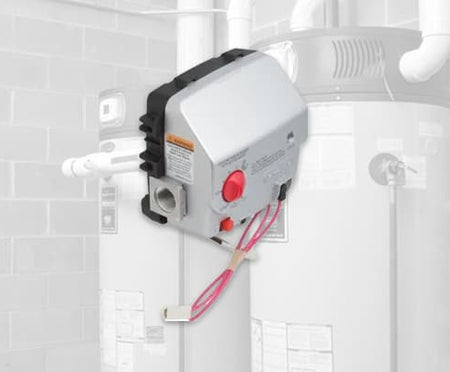

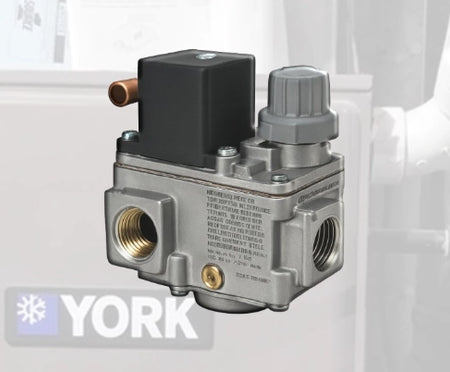

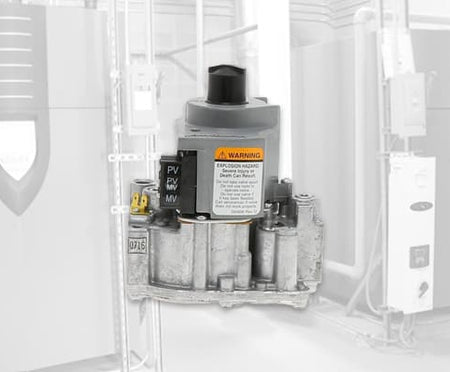

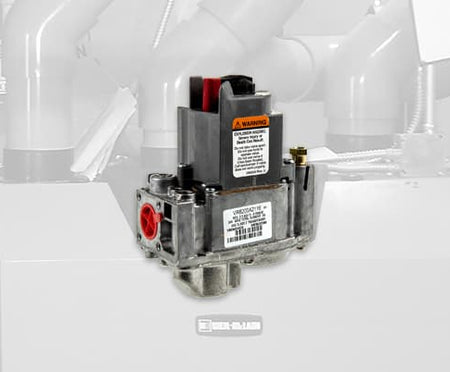

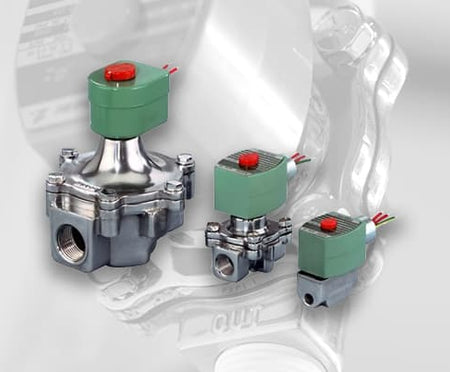

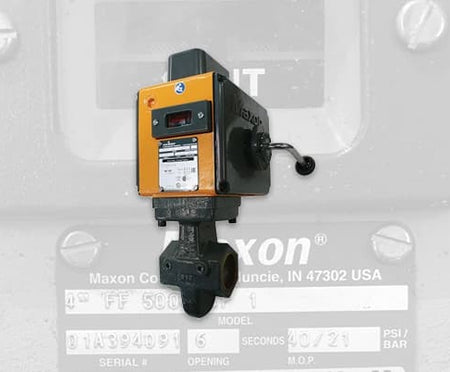

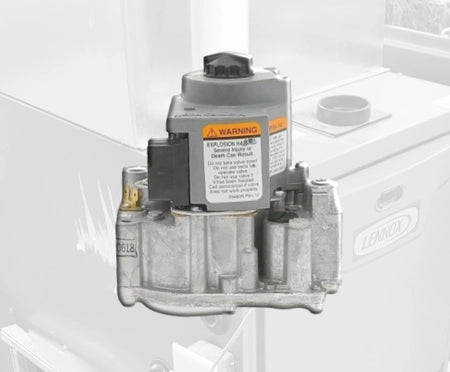

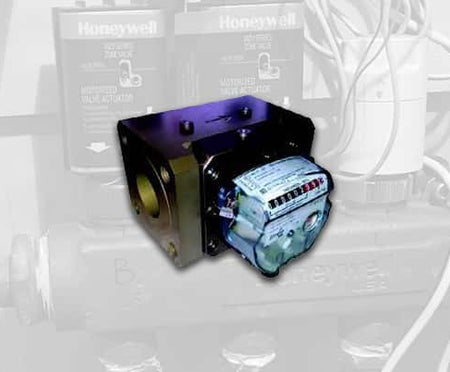

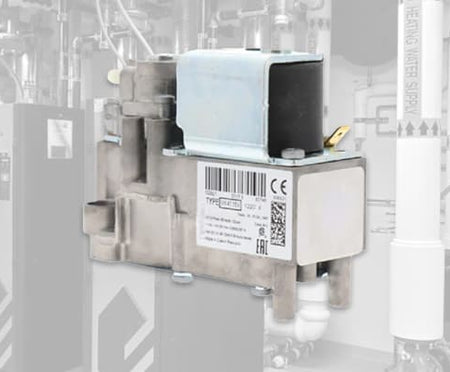

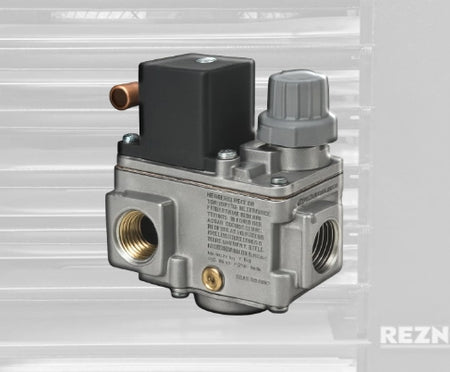

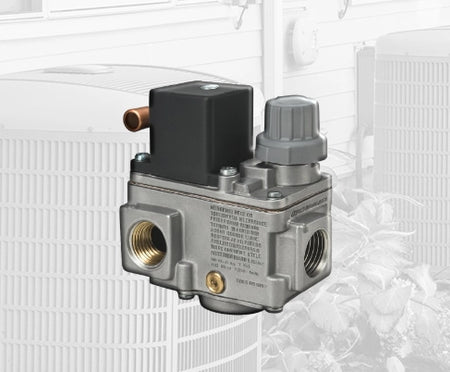

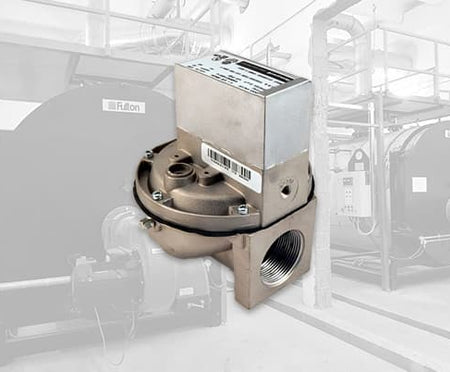

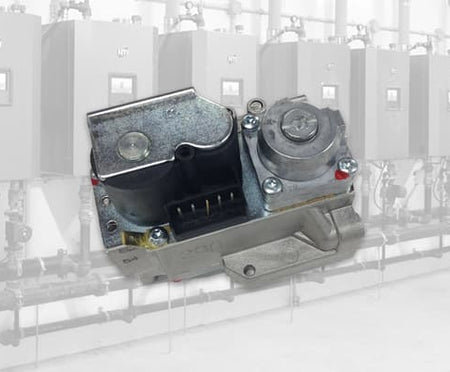

Venturi Gas Valves Available at Liberty Supply
