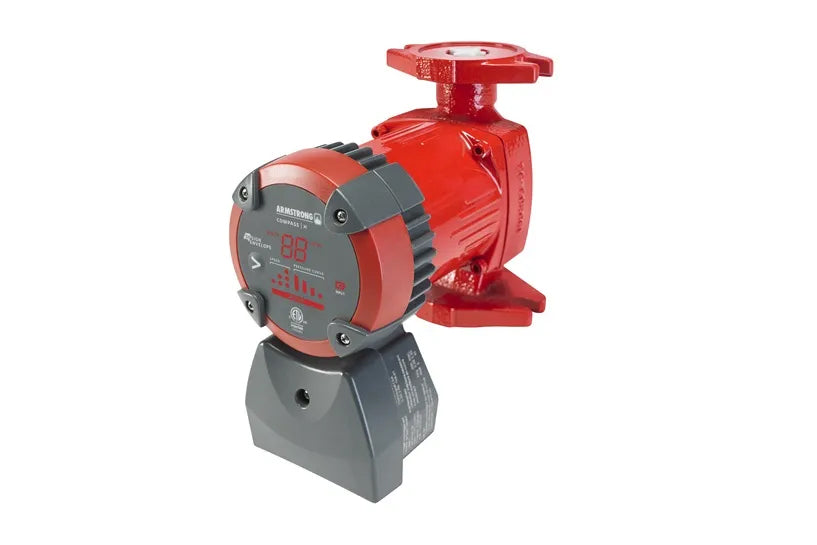

Armstrong Compass H pumps are energy-efficient variable-speed wet-rotor circulators designed to replace existing fixed-speed circulators. With popular flange-to-flange dimensions, Compass H pumps can be universal replacements for all circulators in their capacity range. As a result, they are suitable for residential heating and cooling and potable water supply applications.
The Compass H offers a wide performance range, a large wiring chamber, and a front-mounted terminal block for much easier and faster installation than any other current circulator. Energy-saving features of the Compass H include eight operation modes with a patented “auto” algorithm, two Sensorless modes, two constant pressure modes, and three fixed speed modes. In addition, Design Envelope Intelligent Variable Speed technology, combined with ECM motors, saves 50% or more in electrical energy and related carbon emissions over fixed speed circulators.
Armstrong Design Envelope Compass H Circulator Pump Features
- Cast iron and stainless steel volutes
- 8 operation modes with a patented “auto” algorithm
- 4 Sensorless modes
- 3 fixed speed modes
- 50 Hz and 60 Hz designs
- Up to 20 US GPM (1.26 L/s) flow; up to 20 ft (6.1 m) head
- Maximum ambient temperature: 40°C
- Maximum water temperature: 110°C
- 5 W to 45 W
- 1"
