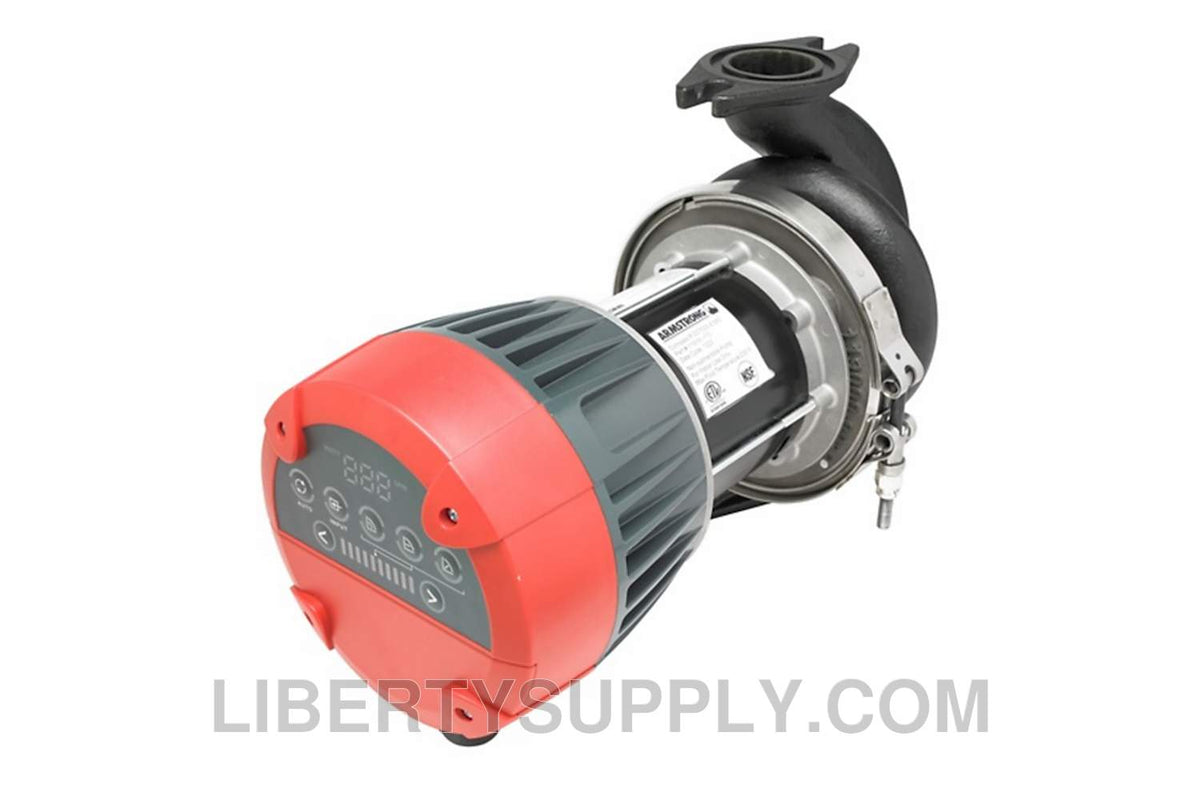

Armstrong Compass R pumps are energy-efficient variable-speed dry-rotor circulators designed to replace existing fixed-speed circulators. With popular flange-to-flange dimensions, Compass R pumps can be universal replacements for all circulators in their capacity range. As a result, they are suitable for residential heating and cooling and potable water supply applications.
The Compass R offers a wide performance range, a large wiring chamber, and a front-mounted terminal block for easier and faster installation than any other circulator. Energy-saving features of the Compass R include eight operation modes with a patented “auto” algorithm, three Sensorless modes, four constant pressure modes, and three fixed speed modes. In addition, Design Envelope Intelligent Variable Speed technology, combined with ECM motors, saves 70% or more in electrical energy and related carbon emissions over fixed speed circulators.
Armstrong Design Envelope Compass R Circulator Pump Features
- Cast iron and stainless steel volutes
- 8 operation modes with a patented “auto” algorithm
- 4 Sensorless modes
- 3 fixed speed modes
- 50 Hz and 60 Hz designs
- 0 to 140 US GPM (8.8 L/s) flow; 0 to 40 ft (12.2 m) head
- Maximum ambient temperature: 40°C
- Maximum water temperature: 110°C
- 1/6 HP and 1/2 HP
- 2 and 4 bolt
