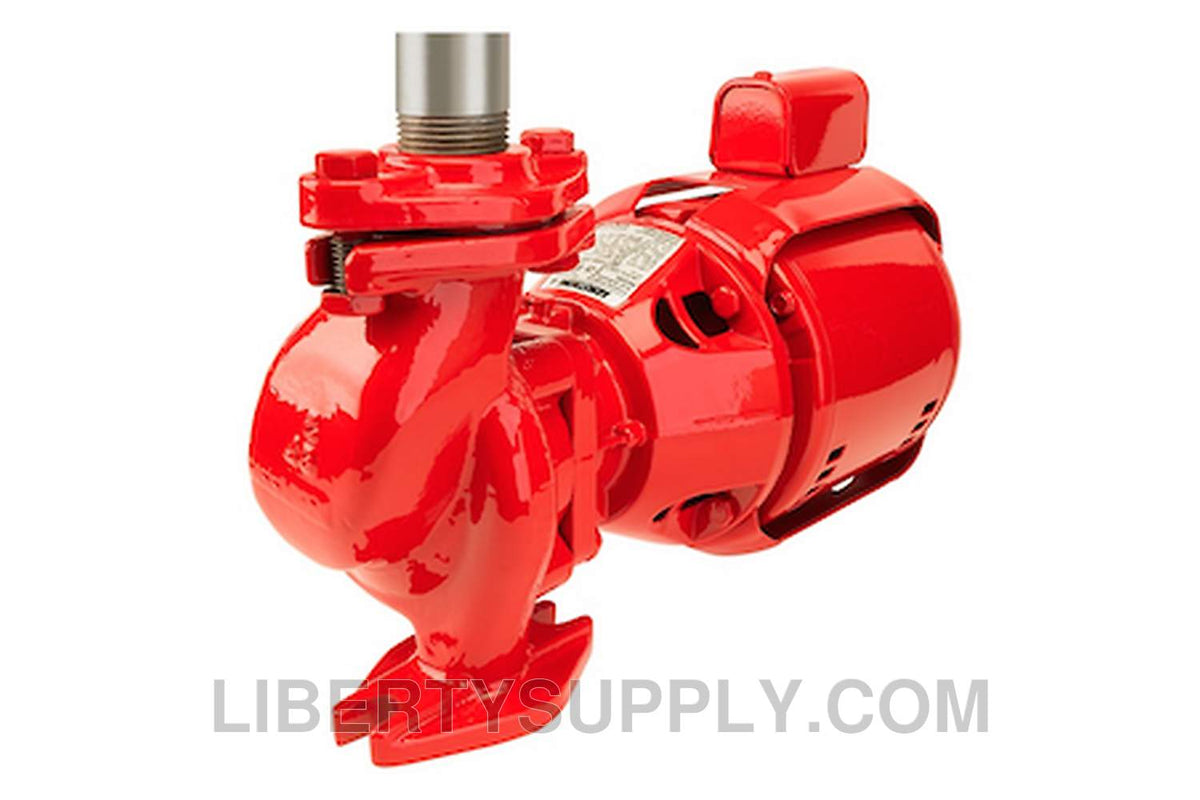

Armstrong S&H circulators include an ECM motor option and deploy a proven fixed-speed design, both cost-effective, durable, and easy to maintain. Models are available in the traditional sleeve-bearing design and the new, permanently-lubricated, maintenance-free design. They are suitable for HVAC systems and general-purpose applications.
Their proven seal design is made from strong, long-lasting materials for extended heavy-duty operation. Maintenance-free models eliminate periodic oiling. The S&H's three-piece modular construction uses a universal replacement shaft and bearing module, while the back pull-out design allows for easy replacement of wear components.
Armstrong S&H 3-Piece Circulator Pump Features
- Cast iron and lead-free bronze volutes
- 50 Hz and 60 Hz designs
- 160 US GPM flow; 57 ft head
- Maximum fluid temperature: 225oF
- 1/12 HP to 1-1/2 HP (.06 kW - 1.12 kW)
- 3/4" - 3"
Armstrong S&H 3-Piece Circulator Pump Seal Bearing Replacement
Armstrong S&H 3-Piece Circulator Pump Documentation
Armstrong S&H Series Graphs Sheet
Armstrong S&H (ECM) Series Submittal
Armstrong S&H (ECM) Series Installation
Armstrong S&H and PLV Series Submittal
Armstrong 1050/1060 Series and S&H Instructions
