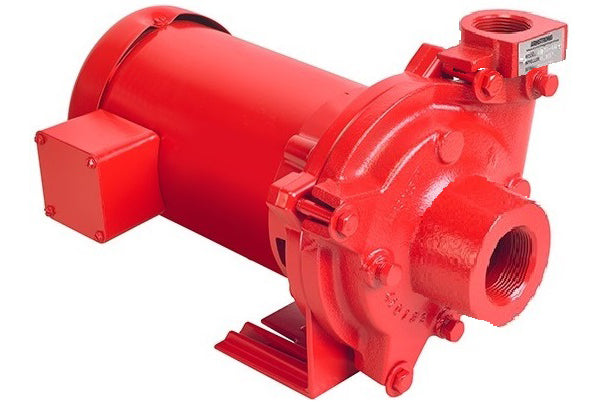

Armstrong 4270 Series close-coupled horizontal pumps are motor mounted and designed for long service life and easy maintenance. They are suitable for building services, cooling towers, HVAC, and general-purpose applications. The high-strength resin impeller on 4270 Series pumps minimizes axial thrust, ensuring smooth performance and long life. Their permanently lubricated, heavy-duty motor ball bearings accommodate radial loads and residual hydraulic thrusts. The self-lubricating mechanical seal prevents liquid seepage. An aluminum die-cast adaptor with an integral support foot delivers lightweight and durable construction. The radially-split volute can be left in the line while servicing the pump, eliminating needless disconnecting of pipes. A back pull-out design eliminates the need to break piping connections when servicing the pump.
Armstrong 4270 Series Features
- Cast iron body with ULTEM impeller
- 416 stainless steel shaft
- Inside single-spring mechanical seal
- Bronze-fitted design
- 3,600 RPM (1,800 RPM optional)
- Up to 3,600 US GPM (227 L/s) flow; up to 130 ft (40 m) head
- 275°F (135°C) maximum temperature
- 0.33 HP to 60 HP (0.25 kW to 45 kW)
- 1.25", 1.5", 2" (32 mm, 38 mm, 51 mm) sizes
