Bell & Gossett ecocirc e³ Whole House Potable Water Circulators

Energy-Efficient Potable Water Circulation in a Compact Design

Bell & Gossett ecocirc e³ circulators are energy-saving domestic hot water pumps designed specifically for potable water applications. Built with permanent magnet ECM motor technology, these lead-free circulators provide efficient, reliable performance while using significantly less electricity than standard circulating pumps.

The ecocirc e³ is designed for whole-house potable water circulation and operates with power consumption as low as 5 to 28 watts. Select models use only 10 watts, which is about the same as a small night light, helping reduce energy use while maintaining dependable hot water circulation.

The high-efficiency ECM design uses microprocessor technology to provide the motor with the proper frequency and voltage for optimized performance. A permanent magnet motor eliminates the need for additional input power to magnetize the rotor, helping maximize efficiency while delivering strong starting torque compared to traditional induction motor pumps.

Designed for easy installation and flexible use, ecocirc e³ circulators are lightweight, compact, and available with multiple configuration options, including built-in thermostat, plug-in timer, plug and cord, temperature sensor, and different body styles. Connection options include 1/2" UltraCirc, 1/2" sweat, and 1/2" FNPT threaded connections.

The shaft-free spherical motor design helps improve reliability and simplify operation. The bearing is self-realigning, automatically lubricated, and cooled by the system fluid. The rotor is magnetically centered on the bearing and can tilt to help avoid blockage from small dirt particles, supporting reliable start-up even after extended periods of inactivity.

Product Features

• Designed specifically for potable water circulation

• Lead-free construction for domestic hot water applications

• Energy-efficient ECM permanent magnet motor technology

• Low energy consumption from 5 to 28 watts

• Select models operate at only 10 watts

• Helps reduce electricity use compared to standard circulator pumps

• ECM spherical motor design

• Strong starting torque compared to standard induction motor pumps

• Automatic overload protection

• Low in-rush current

• Lightweight, compact design

• Small footprint for easier installation

• Variable speed operation on select models

• Adjustable speed switch on models without temperature sensor

• Adjustable temperature sensor on fixed-speed models

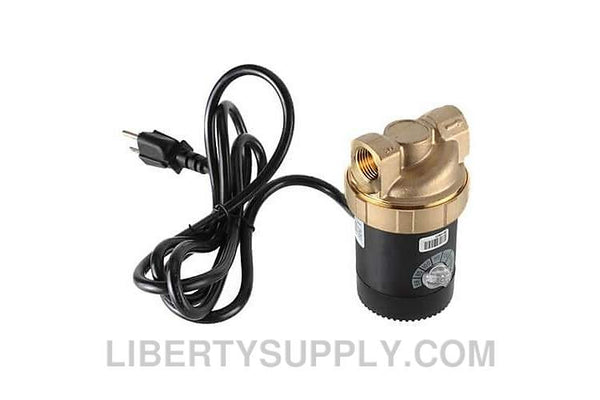

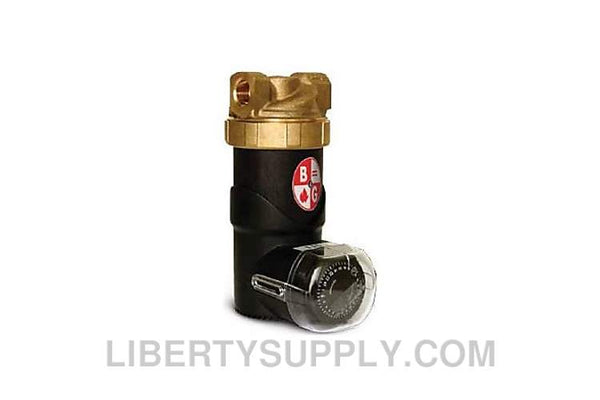

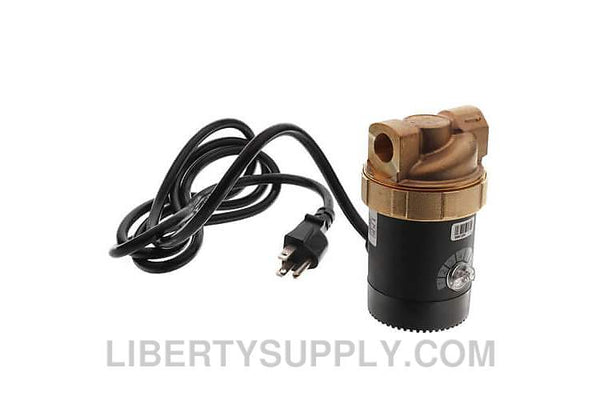

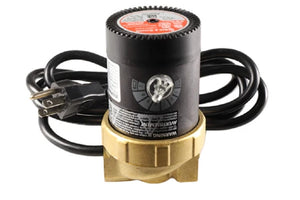

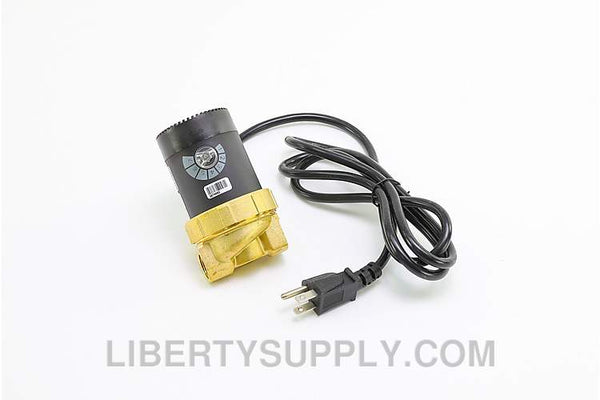

• Available with built-in thermostat, plug-in timer, plug and cord, and other options

• Self-realigning bearing is lubricated and cooled by system fluid

• Rotor design helps avoid blockage from small dirt particles

• Designed for reliable start-up after long shut-off periods

• Easy to clean if scale deposits occur

Operating Data

• Maximum working pressure: 150 PSI / 10.3 bar

• Maximum working temperature: 203°F / 95°C

• Minimum working temperature: 50°F / 10°C

• Electrical rating: 100–140V, 60 Hz

• Power consumption: 5 to 28 watts

Connection Options

• 1/2" UltraCirc

• 1/2" sweat

• 1/2" FNPT threaded

Common Applications

• Domestic hot water recirculation

• Whole-house potable water circulation

• Residential plumbing systems

• Energy-efficient hot water circulation
