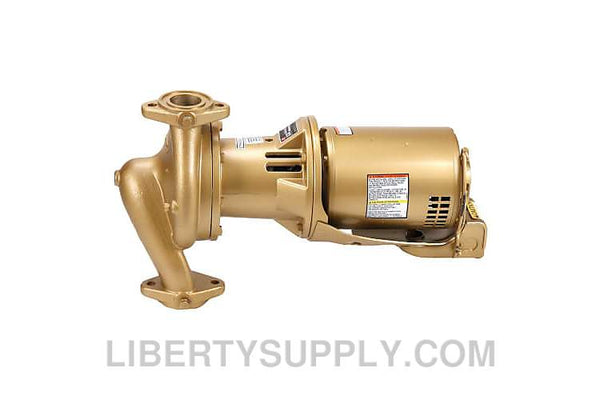

Bell & Gossett Series e-60 pumps are three-piece centrifugal in-line pumps designed for HVAC, potable water, and other clean water applications in residential and commercial markets. Series e-60 pumps offer great value with class-leading hydraulic efficiency, long pump life, and easy serviceability. In addition, quiet operation, a robust mechanical seal, and maintenance-free bearings make Series e-60 pumps a genuinely worry-free, install-and-forget solution.
Bell & Gossett Series e-60 Pump Features:
- Class-leading hydraulic efficiency
- Upgraded unitized mechanical seal
- Permanently lubricated pump and motor bearings
- Space-saving in-line mounting
- Dimensionally interchangeable with legacy Series 60 pumps
- Bronze-fitted or all bronze
- 1" to 3" pipe sizes
- 0.25-3 HP motors at 1750 RPM
- 250° maximum fluid temperature
- 175 psi maximum working pressure
- 215 GPM maximum flow
- 55 ft maximum head
Bell & Gossett e-60 Pumps Brochure
Bell & Gossett e-60 Pumps Instruction Manual
Bell & Gossett e-60 Pump Curves
A pump performance curve indicates how a pump will perform against specific pressure head and flow rates and is defined for a particular operating speed (RPM) and inlet/outlet diameter. The pump curve chart gives you the information you need to determine a pump’s ability to produce flow under the conditions that affect pump performance.
Bell & Gossett e-60 Pump Curves
Bell & Gossett e-60 Pump Parts
Replacement parts for Bell & Gossett Series e-60 pumps include:
- Volutes
- Impellers
- Bearing assemblies
- Gaskets
- Seal kits
- And more
Bell & Gossett e-60 Pump Parts

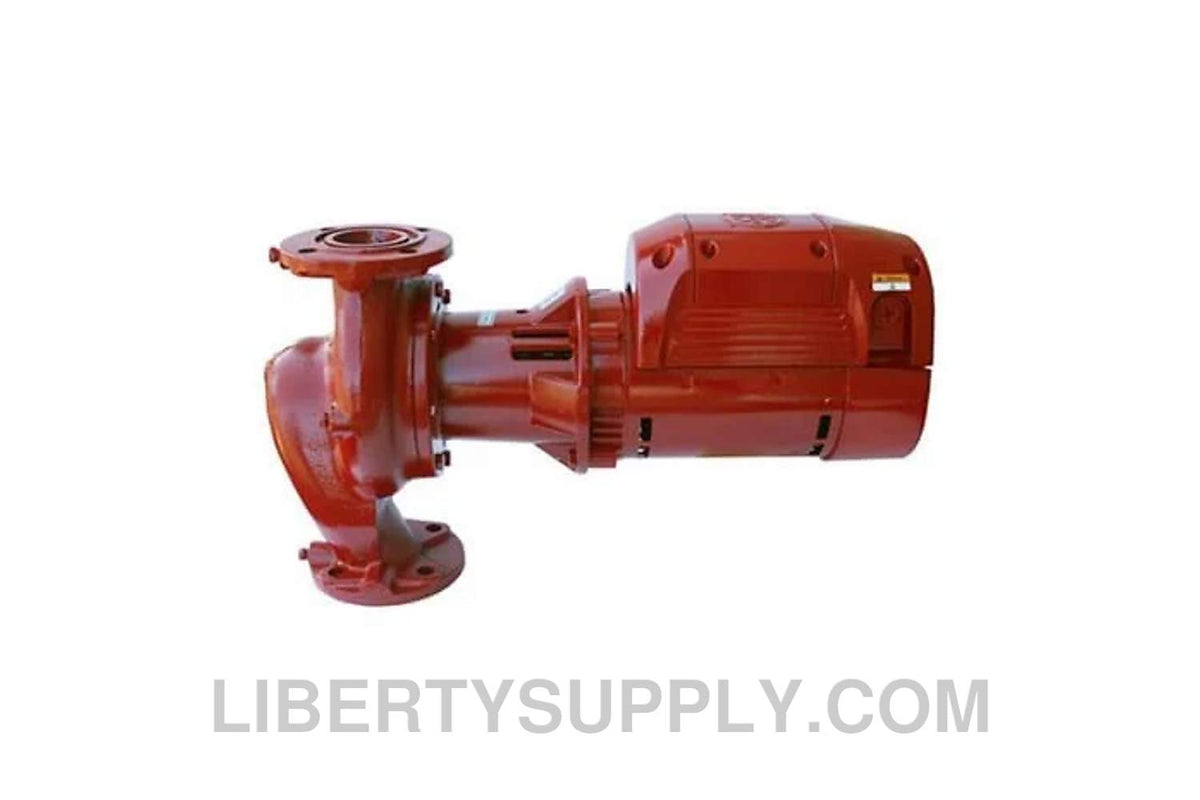

Bell & Gossett Series e-60 ECM Pumps
Bell & Gossett Series e-60 ECM pumps are three-piece centrifugal in-line pumps designed for HVAC and potable water, featuring the high efficiency and variable speed capability of ECM technology. In addition, Series e-60 ECM pumps come with an Electronically Commutated Motor, which features a simple user interface that allows for manual speed adjustment or automatic speed control via a 10VDC input signal. As a result, Series e-60 ECM pumps are more efficient, quieter, and have a lower total cost of ownership than their standard induction motor counterparts over the lifetime of the pumps.
Bell & Gossett Series e-60 ECM Pump Features:
- Class-leading hydraulic efficiency
- Building Automation System control via 10VDC signal
- Upgraded EPR/Carbon/SiC unitized mechanical seal
- Permanently lubricated pump and motor bearings
- Space-saving in-line mounting
- Bronze-fitted or all-bronze construction
- 1" to 3" pipe sizes
- 0.5 or 1 HP ECM motors
