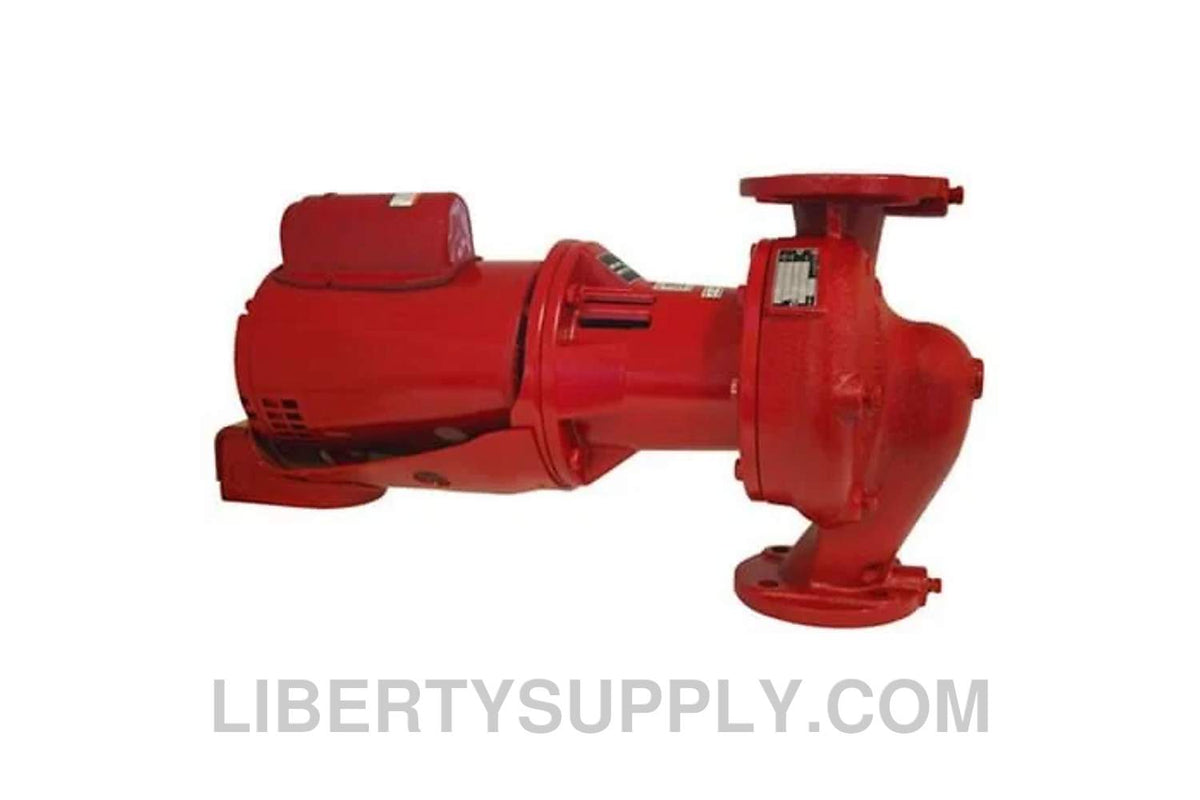

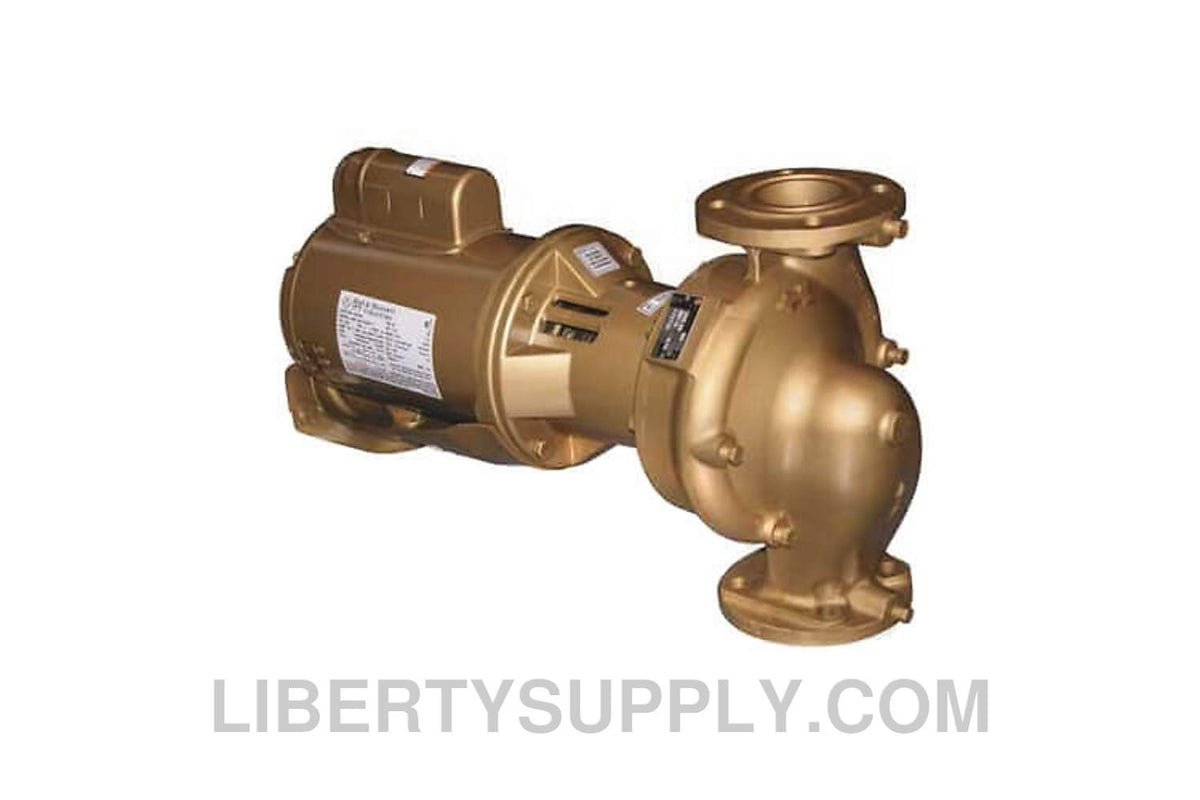

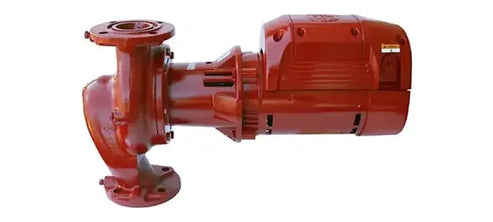

Bell & Gossett Series e-60 Small Flex-Coupled In-Line Circulator Pumps

Maintenance-Free In-Line Pumping for Heating, Cooling, and Fluid Transfer

Bell & Gossett Series e-60 pumps are three-piece in-line centrifugal pumps designed for dependable performance in heating, cooling, potable water, and general fluid transfer applications. Built as a modern replacement for legacy Series 60 pumps, the Series e-60 offers improved efficiency, easier service, and true maintenance-free operation.

With dimensional interchangeability to legacy Series 60 models, the Series e-60 is a strong drop-in replacement option for retrofit projects. Matching flange-to-flange and intake/suction dimensions helps simplify installation while minimizing piping changes. The in-line design mounts directly to system piping through bolted flange connections, saving valuable floor space and providing design flexibility.

Series e-60 pumps are available in 9 sizes, with 144 stock models and additional built-to-order configurations. Pumps can be easily selected using Bell & Gossett pump selection and e-order software, making it easier to match the right pump to the application.

Built with high-quality components, the Series e-60 is designed for smooth operation, long pump life, and reduced maintenance. Permanently lubricated rotating bearings are fully enclosed in Polyrex™ grease, while the upgraded unitized mechanical seal helps improve performance and extend seal life.

For applications requiring variable speed control, the Series e-60 ECM option provides simple speed adjustment, quieter operation, and improved motor efficiency.

Product Features

• Three-piece in-line centrifugal pump design
• Maintenance-free operation
• Designed for heating, cooling, potable water, and fluid transfer applications
• Dimensional interchangeability with legacy Series 60 pumps
• Drop-in replacement option for equivalent legacy Series 60 models and select competitor pumps
• Bolted flange connections allow direct mounting to system piping
• Compact in-line design helps save floor space
• Available in 9 sizes

• Upgraded unitized mechanical seal for improved performance and longer life

• Permanently lubricated rotating bearings enclosed in Polyrex™ grease

• State-of-the-art vacuum cast impellers support smooth, quiet operation

• High hydraulic efficiency across each pump size

• Wide efficiency range supports energy savings in variable load systems

• Three-piece design allows service without removing the pump from the piping

• Motor, coupler, seal, and impeller can be repaired or replaced in place


Motor Options

• Bell & Gossett power pack and C-face motors

• 1/3 to 3 HP

• 1725 RPM

• Standard ODP motors

• Optional TEFC motors

• Permanently greased motor bearings

Series e-60 ECM Features

• Variable speeds from 300 to 1725 RPM
• On-board dial for manual speed control
• 0-10V DC signal input for automatic control

• Quieter operation than standard induction motors

• ECM motor efficiency up to 82% at constant speed

• Series e-60 with ECM motor is approximately 5% quieter than the standard Series e-60 pump

Mechanical Seal Design

The Series e-60 uses an internally self-flushing, unitized mechanical seal with a stainless steel drive mechanism. This design helps reduce torsional stress on the seal bellows while simplifying seal replacement.

An open seal chamber provides strong fluid circulation at the seal face, helping reduce heat buildup and remove particles. This supports longer seal life and dependable performance over the life of the pump.

Common Applications

• Hydronic heating systems
• Hydronic cooling systems
• Potable water applications
• General fluid transfer
• Replacement of legacy Series 60 pumps
• Variable speed pumping applications with ECM models
