High-Capacity Performance for Demanding Water Applications

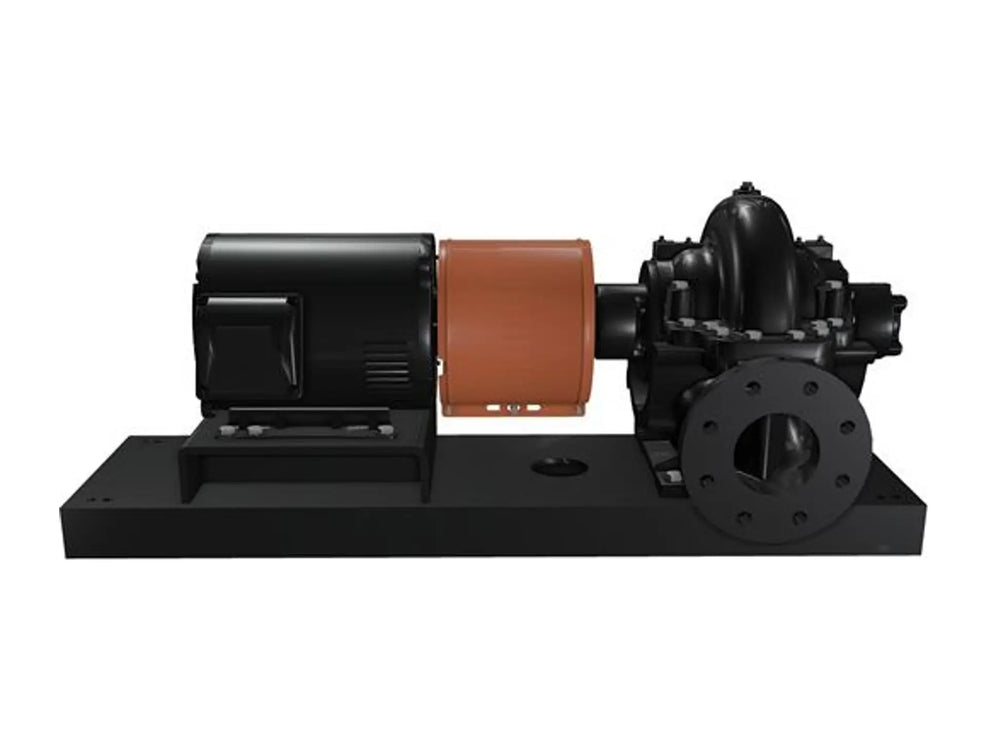

The KP horizontal split-case pump is a single-stage, non-self-priming, between-bearing centrifugal pump designed for high-flow applications and dependable long-term performance. Built with an axially split casing, the KP allows the top casing to be removed for quick access to key internal components, including the bearings, wear rings, impeller, and shaft seal—without disturbing the motor or pipework.
Its double volute hydraulic design helps reduce radial load on the shaft, minimizing vibration, lowering internal recirculation and turbulence, and helping extend pump life. The result is a smoother, quieter operation with improved efficiency in demanding commercial and industrial systems.
The KP is engineered for serviceability, efficiency, and flexibility. Its independent bearing housing allows maintenance access without removing the top half of the casing, while standard bronze wear rings help protect against erosion and simplify the process of maintaining proper running clearances. A compact horizontal configuration also helps save space and reduces the clearance needed around the pump for maintenance.
Designed to deliver flow rates up to 20,000 gallons per minute, the KP pump is well suited for high-capacity water movement applications. Its Francis vane impeller design, extended vanes, enlarged eye, integrally cast suction baffles, and optimized suction chamber configuration help improve hydraulic efficiency, reduce noise and vibration, and lower net positive suction head requirements.
With a wide range of material, impeller, and shaft seal options available, the KP horizontal split-case pump can be customized for specialized and challenging applications.
Key Features and Benefits
- Single-stage, non-self-priming, between-bearing centrifugal volute pump design
- Axially split casing allows quick access to internal components without disturbing the motor or pipework
- Independent bearing housing provides access to pump components without removing the top half of the casing
- Double volute hydraulic design helps reduce radial loads, internal recirculation, and turbulence
- Designed to improve efficiency, reduce vibration, and support longer pump life
- Standard bronze wear rings help protect the pump from erosion and allow easy maintenance of running clearances
- Horizontal, space-saving design helps reduce maintenance clearance requirements
- Highly customizable construction with multiple case material, impeller, and shaft seal options
- Integrally cast suction baffles help reduce suction recirculation loss and support even flow distribution
- Suction chamber design improves hydraulic efficiency and lowers net positive suction head requirements
- Francis vane impeller with extended vanes and enlarged eye helps increase efficiency while reducing vibration and noise
- Compact, robust bearing housing with 360-degree machined register fit helps limit shaft deflection and optimize alignment
- Extended pump range up to 20,000 GPM for high-flow applications
- NSF/50 certification available upon request
Common Applications
- Chilled water systems
- Condensed water systems
- Service water
- District energy
- Water distribution
- Central plant heating and cooling
