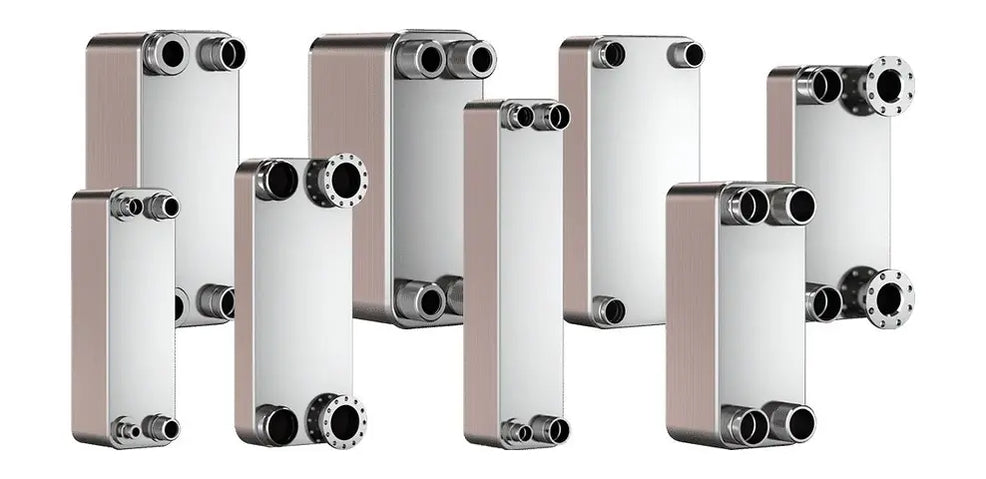

Taco Brazed Plate Heat Exchangers

Taco Brazed Plate Heat Exchangers for Domestic Hot Water, Radiant Heating, Snowmelt, Pool, Spa, and Compact HVAC Heat Transfer

Taco TB Series Brazed Plate Heat Exchangers are compact, high-performance heat exchangers designed for efficient heat transfer in domestic hot water, in-floor radiant heating, snowmelt, pool, spa, and hydronic system applications. Built as a space-saving alternative to larger plate-and-frame or shell-and-tube heat exchangers, Taco brazed plate heat exchangers provide strong thermal performance in a smaller footprint.

These heat exchangers use stainless steel plates with copper-brazed construction to create a rugged, reliable unit with efficient heat transfer and low fouling characteristics. Their compact design makes them useful in mechanical rooms, equipment skids, radiant heating systems, domestic water heating packages, and other applications where available space is limited.

Taco TB Series Brazed Heat Exchangers are designed for liquid-to-liquid heat transfer and can be used in a variety of heating and cooling applications where two fluid streams need to exchange heat while remaining separated. Male pipe thread fittings are included, and mounting stud bolts are standard on most models, helping simplify installation and support secure mounting.

Features

• Brazed plate heat exchanger design
• Compact alternative to plate-and-frame and shell-and-tube heat exchangers
• Designed for efficient liquid-to-liquid heat transfer
• Stainless steel plate construction
• Copper-brazed design for rugged, reliable performance
• High-efficiency heat transfer in a small footprint
• Low fouling heat transfer surface
• Suitable for domestic hot water applications
• Suitable for in-floor radiant heating and snowmelt systems
• Suitable for pool and spa applications, except salt water
• Male pipe thread fittings
• Mounting stud bolts standard on most models
• Practical for mechanical rooms, packaged systems, and retrofit installations
• Available in multiple TB Series model sizes

Applications

• Domestic hot water systems
• In-floor radiant heating
• Snowmelt systems
• Hydronic heating systems
• Pool heating applications
• Spa heating applications, except salt water
• Compact HVAC heat transfer
• Boiler loop heat transfer
• Process water heating
• Equipment skid packages
• Mechanical room heat exchanger installations
• Retrofit heat exchanger replacements
