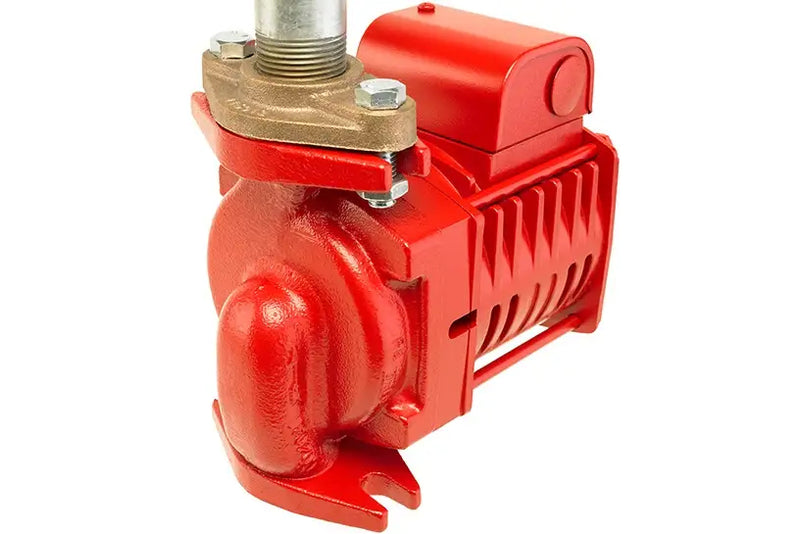

E8.2B 1/6 HP, single phase dry motor cast iron circulator pump that features a stainless steel shaft, permanently lubricated bearings, and a bellows-style mechanical seal with silicon carbide wear surface. Armstrong E.2 Series pumps can perform up to 140 gpm and 60 feet of head. They feature an easy to access mechanical seal and compact design that minimizes flange-to-flange dimensions. The E.2 Series is ideal for heating or cooling systems, such as hot water, geothermal, radiant panel, and snow melt in large residential and light commercial installations.
|Manufacturer||Armstrong Fluid Technology|
|Application||Heating & Cooling|
|Body Material||Cast Iron|
|Flange Connection Size(s)||1", 1-1/2", 1-1/4", 3/4"|
|Horse Power||1/6 HP|
|Maximum Working Pressure||150 PSI|
