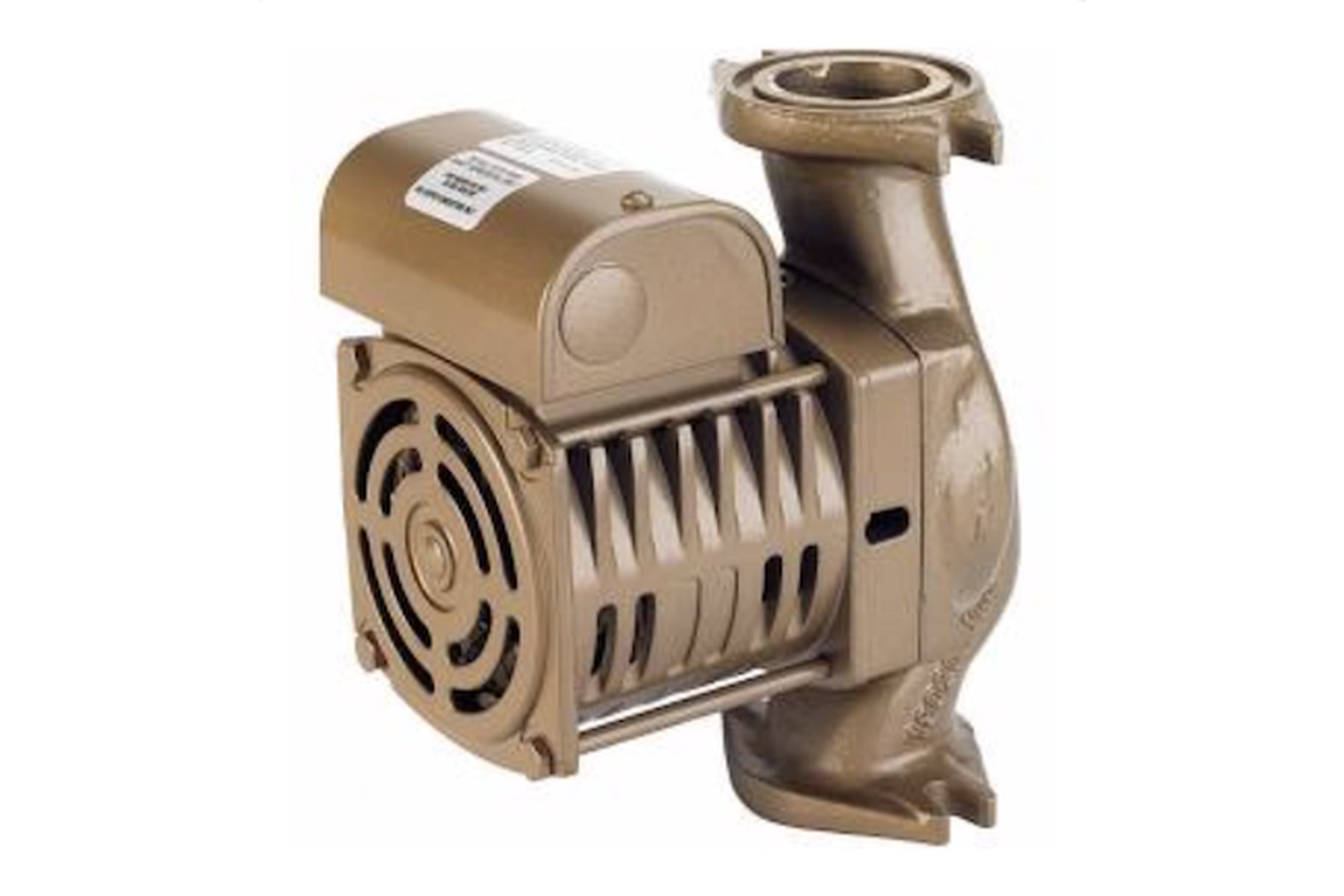

Armstrong Series E.2 2/5HP, 3450RPM, 120v, 1PH In-Line Booster Pump 182212-650

SKU: AMC01-0630 Part Number: 182212-650 Model: E19.2B

Price:
Sale price$2,847.95 Regular price$3,581.00

Save 20% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

E19.2B 2/5 HP, single phase dry motor bronze circulator pump that features a stainless steel shaft, permanently lubricated bearings, and a bellows-style mechanical seal with silicon carbide wear surface. Armstrong E.2 Series pumps can perform up to 140 gpm and 60 feet of head. They feature an easy to access mechanical seal and compact design that minimizes flange-to-flange dimensions. The E.2 Series is ideal for heating or cooling systems, such as hot water, geothermal, radiant panel, and snow melt in large residential and light commercial installations.

Specifications

Manufacturer Armstrong Fluid Technology
Part Number 182212-650
Model E19.2B
Series Series E.2
Application Heating & Cooling
Pump Type Booster
Body Material All Bronze
Connection Type Flanged
Flanges Included? No
Flange Connection Size(s) 1", 1-1/2", 1-1/4"
Mounting Type In-Line
Motor Included Yes
Horse Power 2/5 HP
RPM 3450 RPM
Voltage 120v
Phase Single
Hertz 60Hz
Enclosure Type ODP
Maximum Temperature 230°F
Maximum Working Pressure 150 PSI

About Armstrong Fluid Technology

Armstrong Fluid Technology is a global leader and innovator in intelligent fluid-flow solutions for HVAC, plumbing, and fire safety applications. Armstrong combines high-quality hardware, controls intelligence, and related services into fully integrated building energy solutions.
