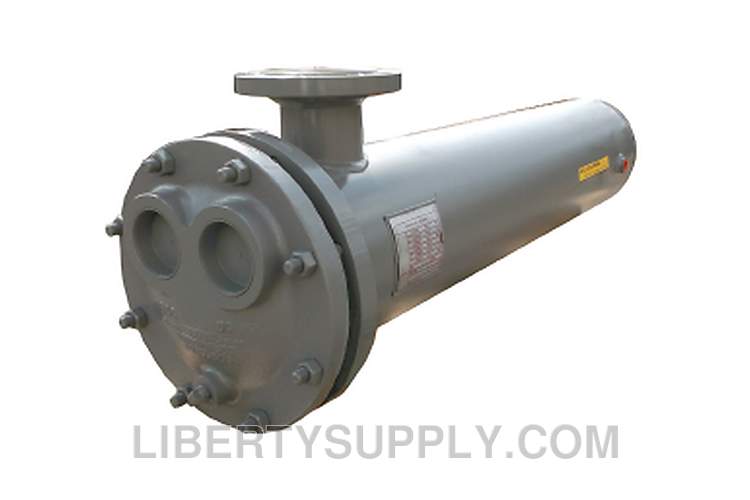

96" four-pass u-tube heat exchanger with a 10" shell diameter - water in the shell, water in the tubes - with a tube side pressure of 150 psi, tube test pressure of 300 psi, cast iron head, steel tube sheet, steel shell, and 3/4" O.D. copper tubes. Bell & Gossett WU heat exchangers provide instanteous water-to-water heat transfer with pumped boiler water circulation to produce large volumes of hot water.
Specifications
Manufacturer
Bell & Gossett
Part Number
5-265-10-096-002
Model
WU108-45
Series
Series WU
Heat Exchanger Type
Water-in-Shell, Water-in-Tube
Application
Hydronic Heating
Head Material
Cast Iron
Body Material
Steel
Tube Bundle Length
96"
Number of Passes
4
Tube Bundle Material
Copper
Tube Outside Diameter
3/4"
Tube Side Pressure
125 PSI
Tube Test Pressure
300 PSI
About Bell & Gossett
Bell & Gossett, a Xylem brand, is a world leader in HVAC, wastewater, and plumbing system solutions for the commercial building services industry. They offer numerous energy-efficient pumps, boosters, drives, valves, heat exchangers, controllers, and water systems for multiple applications, including steam and heat t... Learn more
