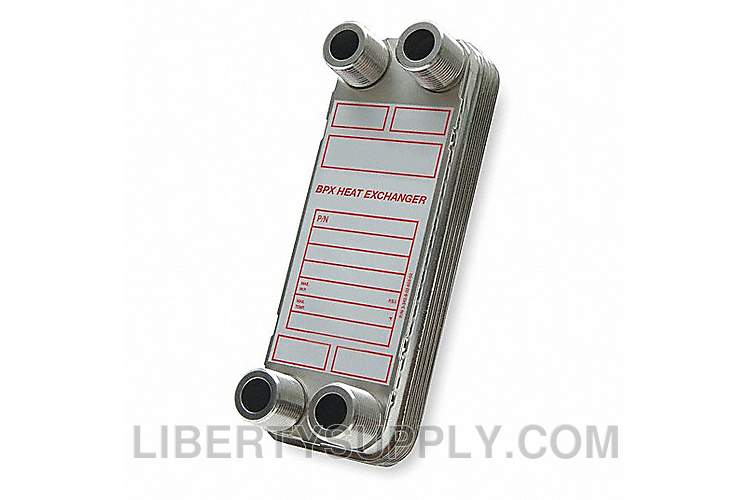

30-plate (0.281 SF surface area per plate) low pressure BPX brazed heat exchanger with 1" MNPT connection, stainless steel ASTM 316L cover and channel plates, copper brazing material, 150 psig design pressure, -40°F a minimum temperature, 250°F design temperature. Bell & Gossett brazed plate heat exchangers offer high heat transfer coefficients in a compact design. Stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature. These units are ideal for industrial oil cooling, refrigerant evaporators and condensers, and residential and light commercial HVAC hydronic systems.
|Manufacturer||Bell & Gossett|
|Heat Exchanger Type||Brazed Plate|
