Name: Grundfos 97778430, Compact Submersible Pump for Ground Water Intake
Brand: Grundfos
SKU: LSI0DOYRNF
Price: 3865.0 USD
Availability: OutOfStock

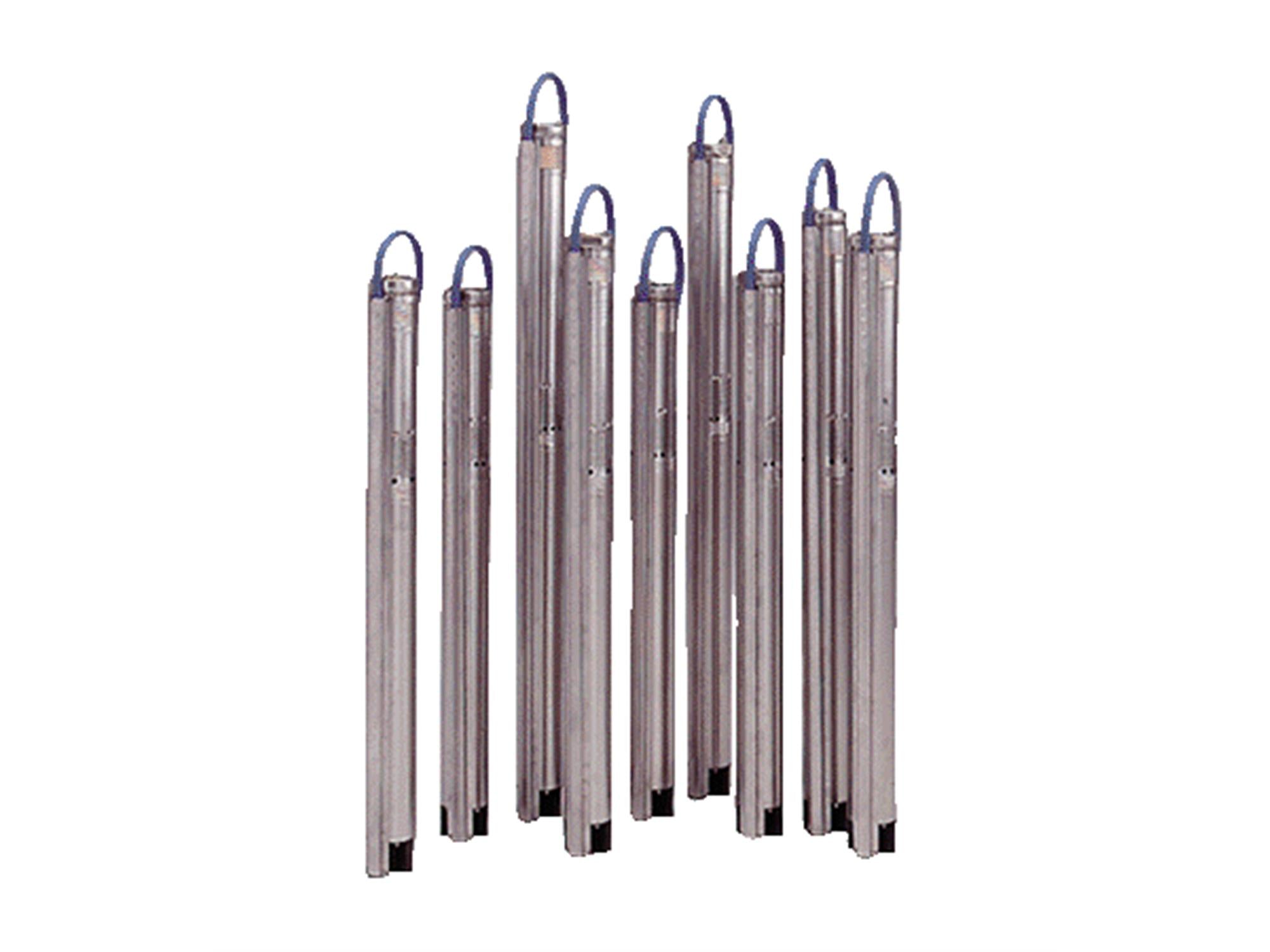

Grundfos 97778430, Compact Submersible Pump for Ground Water Intake

Roll over image to zoom in Click on image to zoom

This submersible pump is compact and designed for remedial pumping and liquid sampling from areas with contaminated groundwater.

Manufacturer	Grundfos
Part Number	97778430
Pump speed on which pump data is based	10700 rpm
Rated flow	22 US gpm
Rated head	101.7 ft
Stages	3
Approvals	cULus
Curve tolerance	ISO9906:2012 3B
Pump Number	96397451
Valve	pump with built-in non-return valve
Pump	Stainless steel, EN 1.4401, AISI 316
Impeller	Composite, SOLEF 8808/0902 PVDF-CF10
Motor	Stainless steel, DIN W.-Nr. 1.4401, AISI 316
Maximum operating pressure	217.56 psi
Pump outlet	1 1/2"NPT
Minimum borehole diameter	2.99 in
Pumped liquid	Water
Liquid temperature range	32 .. 95 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	MSE3-NE
Power input - P1	1.55 kW
Rated power - P2	1.54 HP
Main frequency	60 Hz
Rated voltage	1 x 200-240 V
Service factor	2.05
Rated current	8.4 A
Power factor	1.00
Rated speed	10700 rpm
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP68
Insulation class (IEC 85)	F
Built-in motor protection	Y
Thermal protec	internal
CU 300/CU 301	communication with CU 300/CU 301 possible
Net weight	11.2 lb
Gross weight	12.6 lb
Sales region	N-AMREG

SQ, SQE, SQE-NE - submersible pumps (Data booklet)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
