Description
This submersible wastewater pump is part of a range designed for pumping sewage and wastewater in various municipal and industrial applications. It has a free-flow channel impeller suitable for commercial wastewater, flood control, and industrial wastewater treatment and reuse.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 97660753 |
Maximum flow | 2540 US gpm |
Maximum head | 206.7 ft |
Actual impeller diameter | 12.9 in |
Type of impeller | 1-CHANNEL |
Free passage | 3.94 in |
Approvals on nameplate | FM |
Curve tolerance | ANSI/HI11.6:2017 3B |
Cooling jacket | with cooling jacket |
Lifting height class | M |
Pump housing | Cast iron, EN 1561 EN-GJL-250, ASTM A48 35B |
Impeller | Cast iron, EN 1561 EN-GJL-250, ASTM A48-30 |
Motor | Cast iron, EN 1561 EN-GJL-250, ASTM A48 35B |
Shaft seal | SIC |
Secondary shaft seal | SIC-CARBON |
Range of ambient temperature | 32 .. 104 °F |
Type of connection | ANSI |
Size of outlet port | 5 inch |
Pressure rating for connection | PN 10 |
Maximum installation depth | 65.6 ft |
Inst dry/wet | D/S |
Auto coupling | 97626242 |
Liquid temperature range | 32 .. 104 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Frame size | 62 |
Power input P1 | 88.5 HP |
Rated power - P2 | 79.1 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 460 V |
Voltage tolerance | +10/-10 % |
Max starts per. hour | 15 |
Rated current | 105/ A |
Maximum current consumption | 105 A |
Starting current | 579 A |
Rated current at no load | 41 A |
Rated driver speed | 1768 rpm |
Motor efficiency at full load | 90 % |
Motor efficiency at 3/4 load | 90 % |
Motor efficiency at 1/2 load | 88 % |
Number of poles | 4 |
Start. method | Y/D |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | H |
Explosion proof | yes |
Ex-protection standard | FM 3600, 3615 AND 3615.80 |
Built-in motor protection | KLIXON |
Power cable type | S1BC4N8-F |
Length of power cable | 49.2 ft |
Cable description | 2X4X16MM2+1X10X1,5MM2 |
Cable resistance | 9.55 mOhm/m |
Winding resistance | 0.121 Ohm |
Cos phi 1/1 | 0.79 |
Cos phi 1/2 | 0.61 |
Cos phi 3/4 | 0.72 |
Moisture sensor | with moisture sensors |
Water-in-oil sensor | with water-in-oil sensor |
Net weight | 1500 lb |
Gross weight | 1740 lb |
Sales region | NAMREG |
Country of origin | HU |
Custom tariff no. | 8413.70.29 |

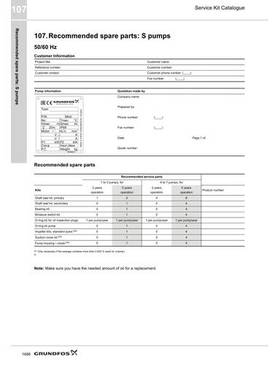

Documents
