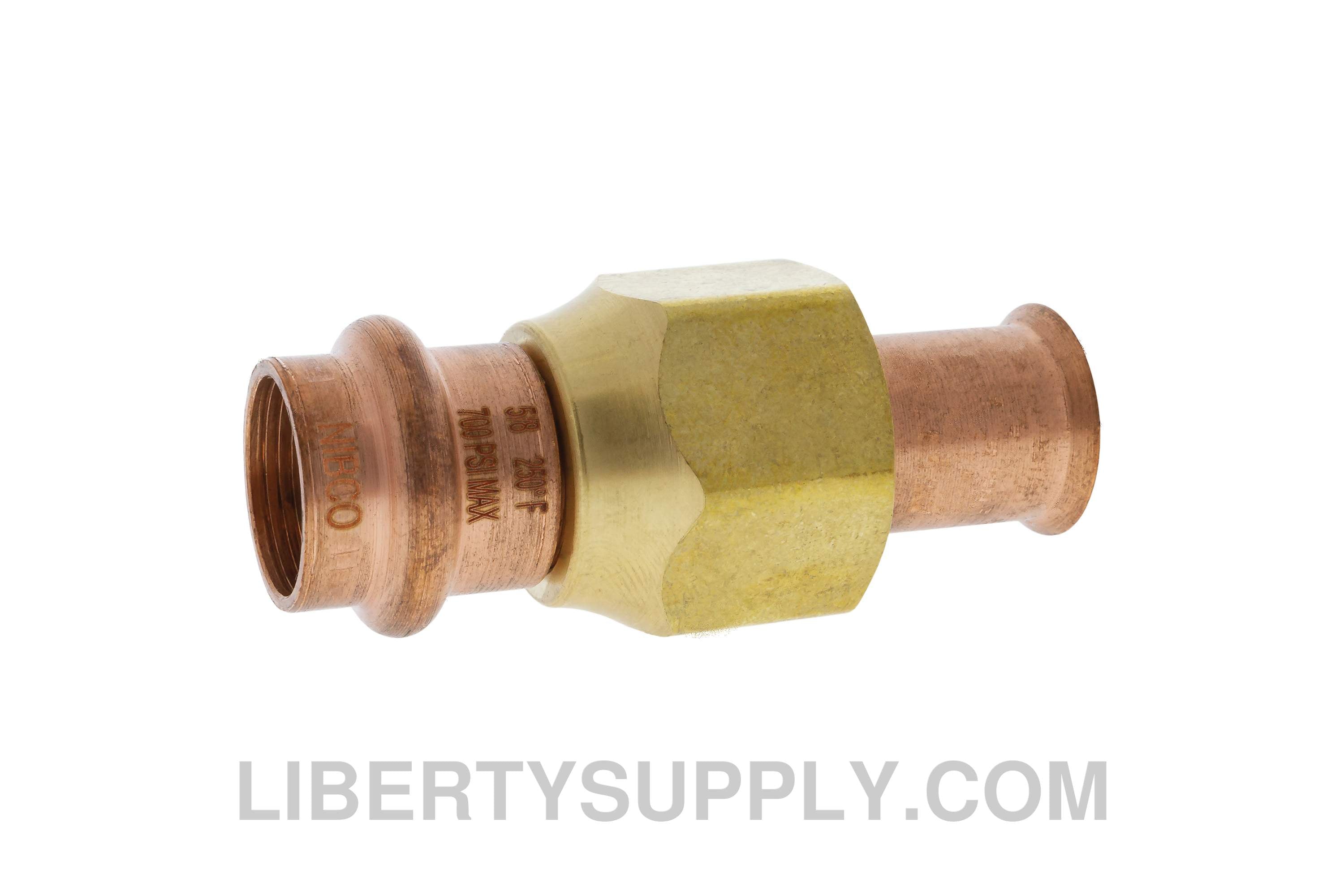

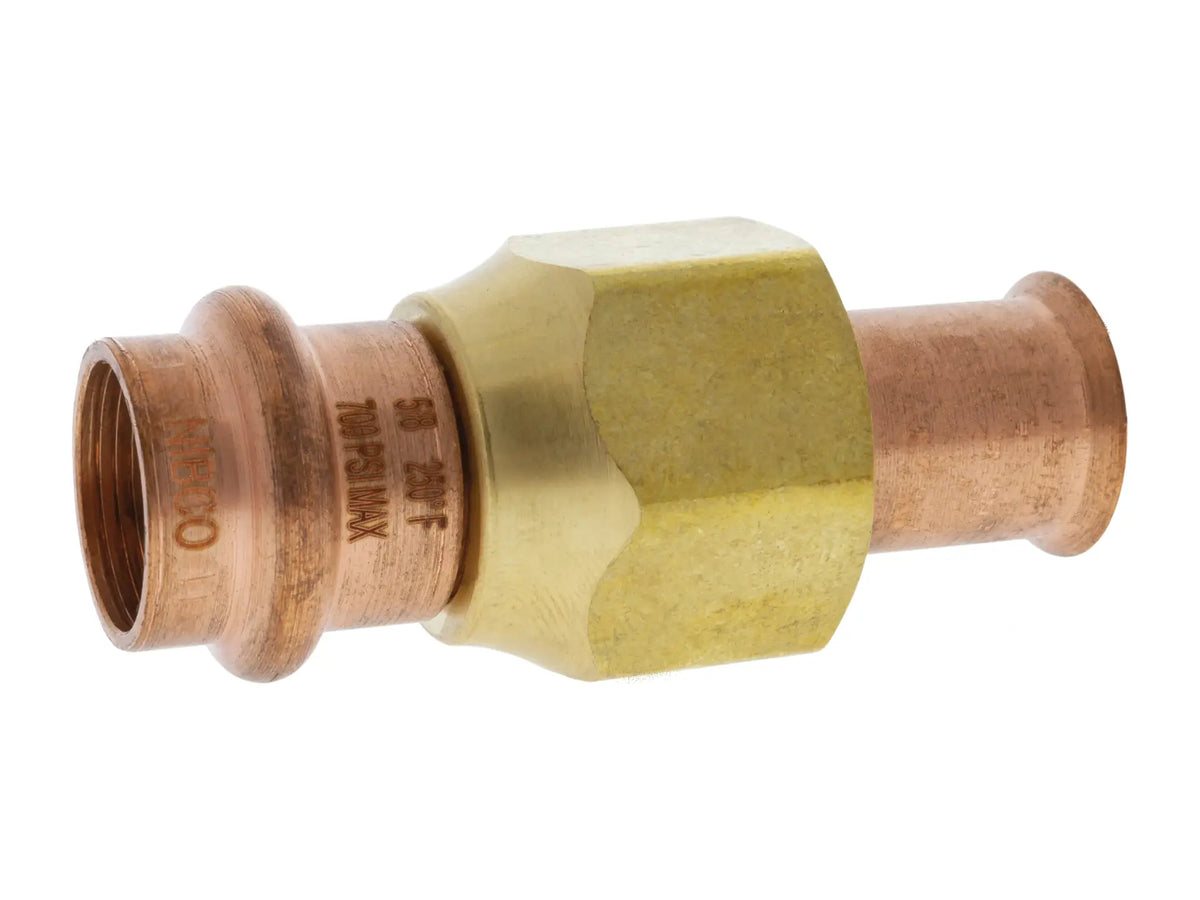

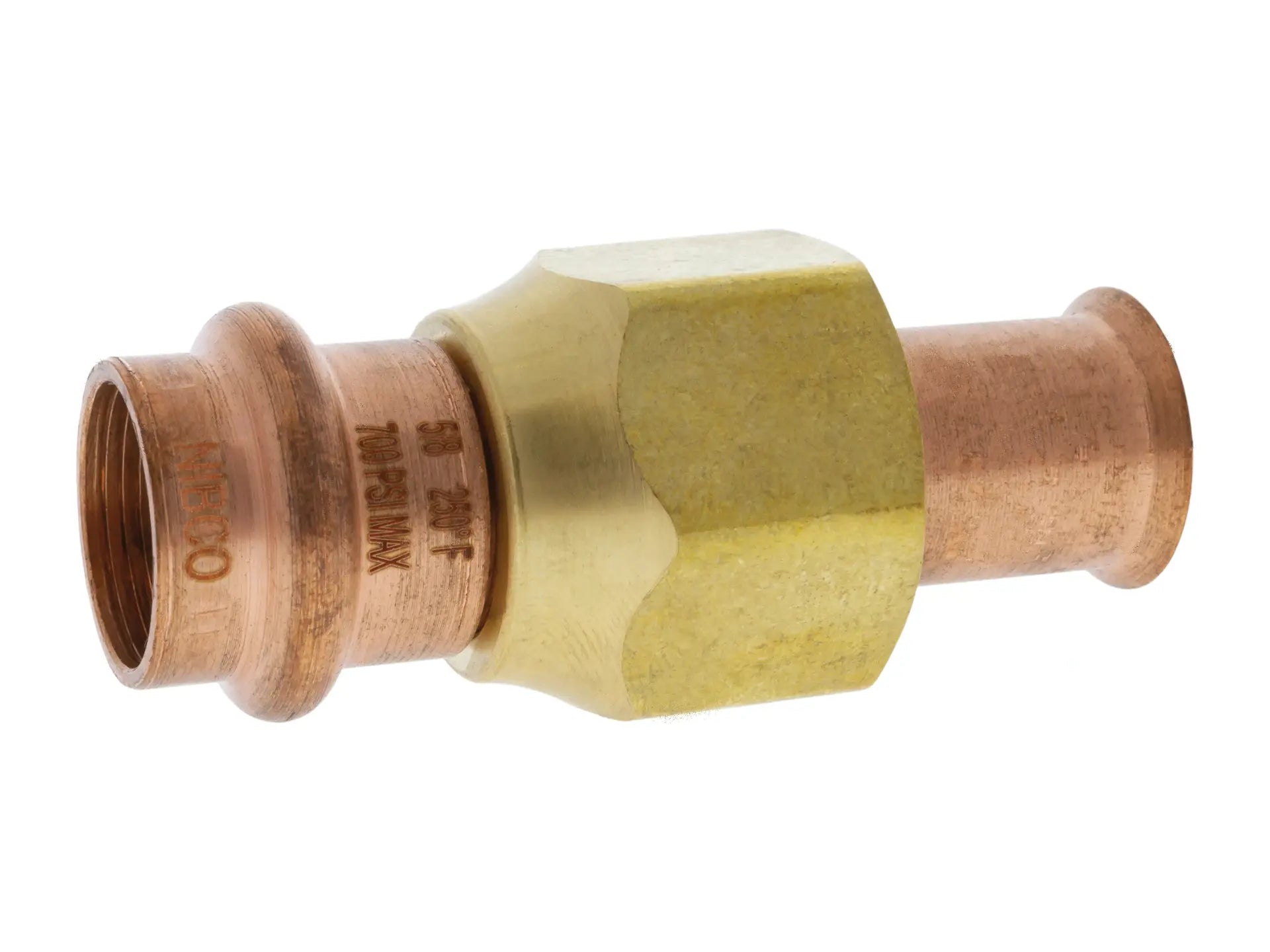

NIBCO PressACR SAE flare fittings feature an inboard bead and gray HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder, or flux. SAE flare fittings have a press and a flare connection. The fitting is used to adapt from a threaded flare connection to a press connection. NIBCO press fittings are the fastest, easiest way to join copper tubing. NIBCO PressACR fittings are the quickest, most straightforward way to join copper tubing systems. NIBCO PressACR fittings are designed to join with seamless copper water tubes in air conditioning and refrigeration applications systems. Press fittings can also be installed underground. NIBCO PressACR fittings are user-friendly, quick, and easy to install. When properly crimped, a unique "N" witness mark is visible.
Features
- Operating pressure 700 psi max
- Temperature range -40°F to 250°F
- Vacuum: 500mi
- Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
- Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
- UL 207 Recognized to 700 PSI
- Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
