Please note this item is assembled to order and additional lead-times may apply.

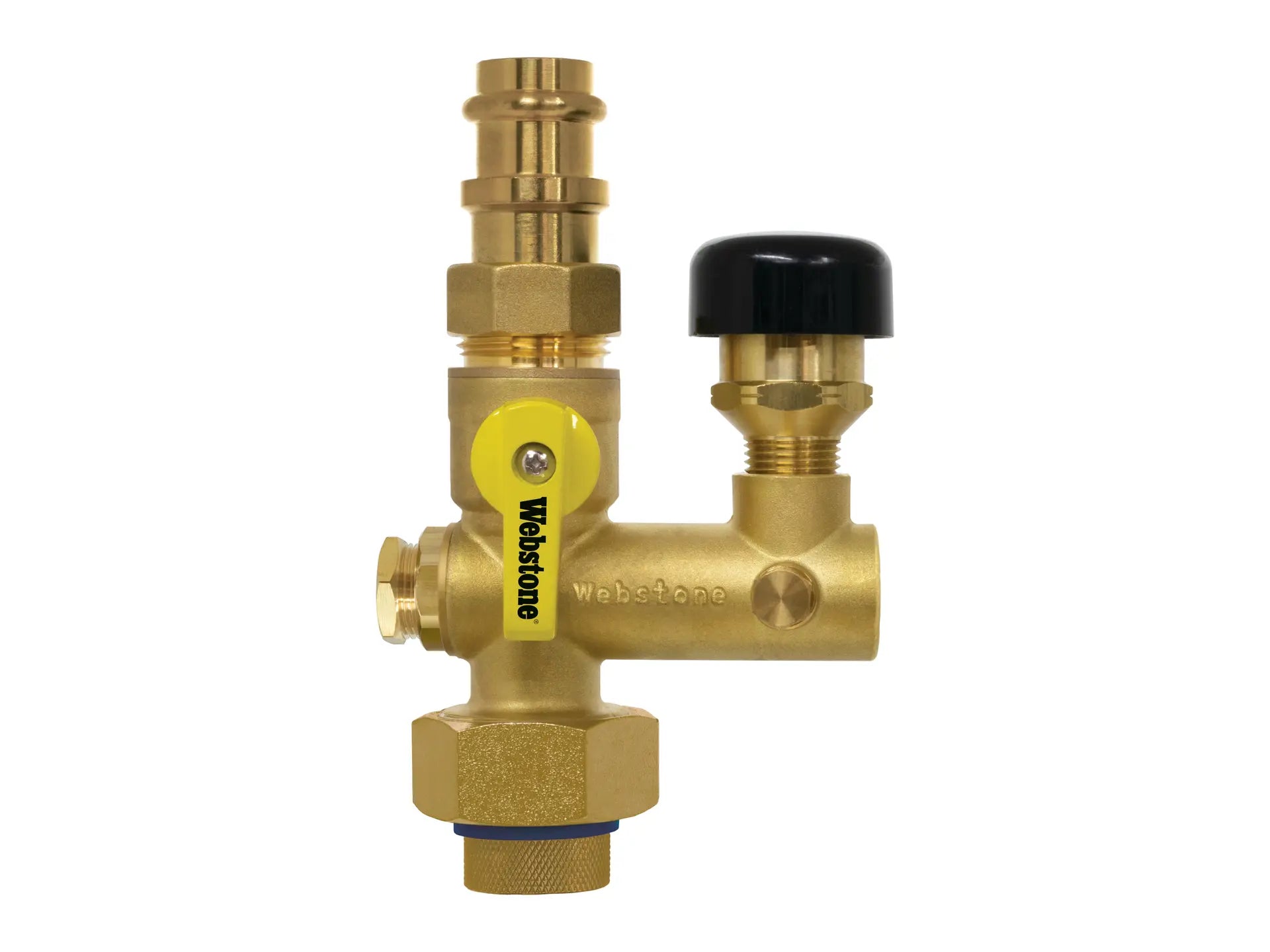

Pro-Pal water heater supply valve, full port dezincification-resistant brass ball valve, with union end, 1/2" FIP vacuum relief valve port, two plugged FIP ports (1/2" and 1/8"). Includes vacuum relief valve and mounting hardware Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal series valves. The dielectric water heater supply valve combines multiple components into a single, forged dezincification-resistant brass solution to upgrade your next water heater installation. Designed for use with water in residential or commercial plumbing systems. refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
Features
- Simplifies storage tank water heater installations
- FIP brass union for connection to the water heater
- Integrated valves isolate the water supply for service
- 1/2" FIP cold water tapping for water heater tempering valve
- 1/2" FIP port for installation of vacuum relief valve and 1/8" plugged gauge port
- Includes support hardware and vacuum relief valve
- Expansion tank service version available if required
- Saves time, replaces components, eliminates leak paths
- This valve is actuated by a blowout proof stem
- Double o-ring stem seals
- Models available to satisfy all state and federal low-lead laws
- Patents pending
- Available in FIP Union x SWT, FIP Union x PSH, FIP Union x PRS, FIP Union x MIP, FIP Union x FIP
- Certified to NSF/ANSI 61 & 372
