Description

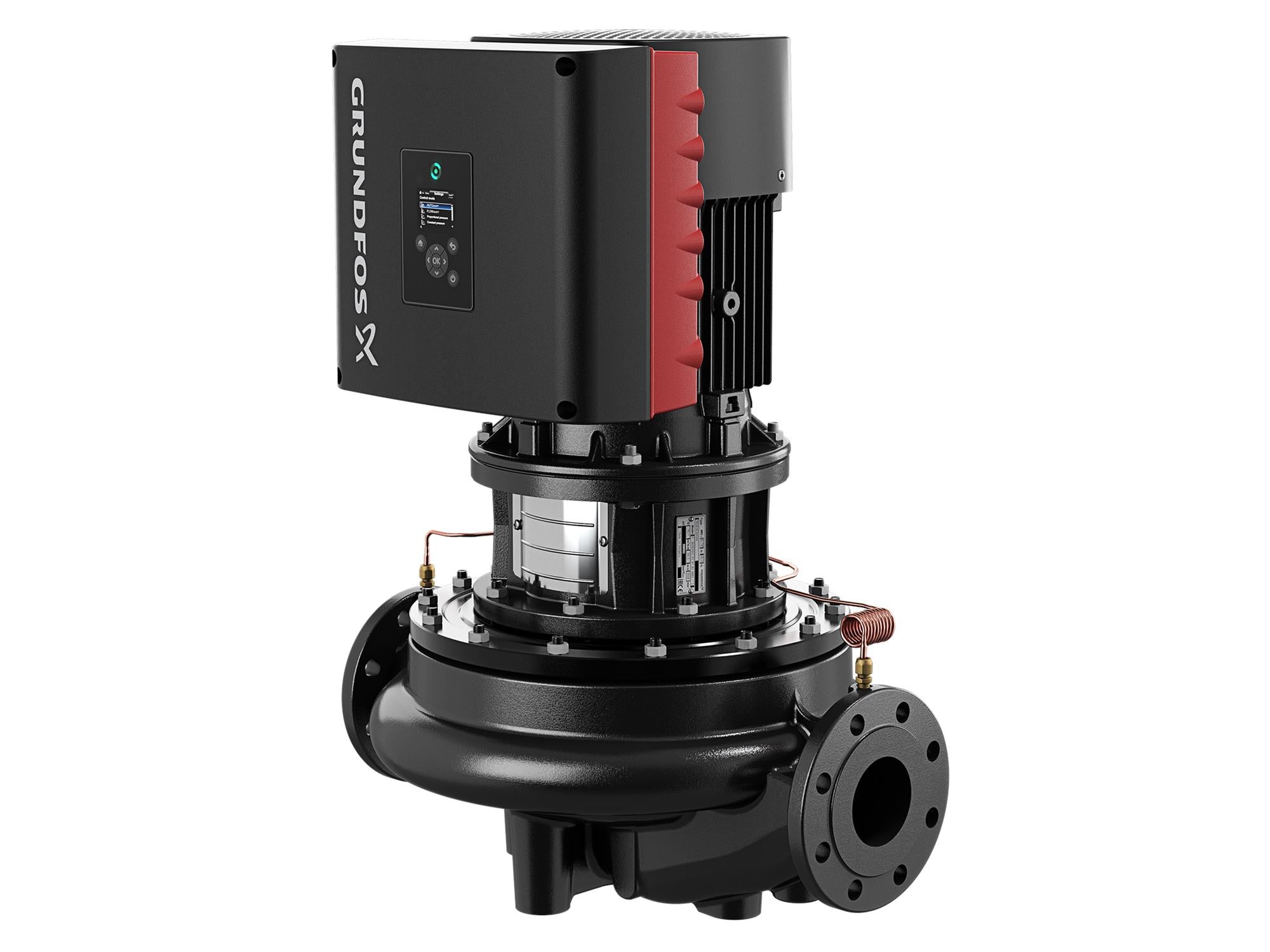

This inline single-stage pump is a TPE Series 2000 model designed for applications such as heating, cooling, and district energy. It is a single-stage, close-coupled in-line centrifugal pump with a mechanical shaft seal. The pump has frequency-controlled motors and includes a differential pressure transmitter, making it suitable for water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96774873 |
| Rated pump speed | 3450 rpm |
| Rated flow | 156 US gpm |
| Rated head | 51.51 ft |
| Maximum head | 78.74 ft |
| Actual impeller diameter | 4 in |
| Code for shaft seal | RUUE |
| Curve tolerance | ISO9906:2012 3B2 |
| Pump version | A |
| Pump housing | Cast iron, EN-JL1040, 25 B |
| Impeller | Stainless steel, 1.4301, AISI 304 |
| Material code | A |
| Range of ambient temperature | -4 .. 104 °F |
| Maximum operating pressure | 145.04 psi |
| Type of connection | ANSI |
| Size of connection | 3" inch |
| Pressure rating for connection | Class 125 |
| Connect code | G |
| Pumped liquid | Water |
| Liquid temperature range | -13 .. 140 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | 100A |
| Rated power - P2 | 3 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 200-240 V |
| Rated current | 7.90-6.60 A |
| Cos phi - power factor | 0.94 |
| Rated speed | 360-4000 rpm |
| IE efficiency | 88.7% |
| IE Efficiency class | IE5 |
| Motor efficiency at full load | 88.7 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Control panel | HMI300 - Advanced |
| Function Module | FM300 - Advanced |
| DOE Pump Energy Index VL | 0.41 |
| Gross weight | 116 lb |
