Grundfos 39DH0601, Vertical Multistage Centrifugal Pump for Machining

Roll over image to zoom in Click on image to zoom

Grundfos 39DH0601, Vertical Multistage Centrifugal Pump for Machining

Name: Grundfos 39DH0601, Vertical Multistage Centrifugal Pump for Machining
Brand: Grundfos
SKU: LSI10RBGJ3
Price: 2799.0 USD
Availability: OutOfStock

SKU: LSI10RBGJ3 Part Number: 39DH0601

Price:

$2,799.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump is designed for tank top mounting and is used for pumping cooling lubricants and cutting oils in machine tools, as well as condensate transfer and similar applications.

Manufacturer	Grundfos
Part Number	39DH0601
Pump speed on which pump data is based	2800 rpm
Rated flow	8.81 US gpm
Rated head	11.81 ft
Stages	19
Impellers	1
Primary shaft seal	AUUV
Approvals	CE,EAC,UKCA,Morocco
Approvals for motor	CE,EAC,UKCA,SEPRO,Morocco
Energy approvals for motor	CE,Singapore
Curve tolerance	ISO9906:2012 3B
Pump version	X
Drain holes	Open drain hole
Pump housing	Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Material code	A
Maximum ambient temperature	140 °F
Pipe connection	G 3/4
Flange size for motor	FT85
Connect code	W
Pumped liquid	Emulsion
Liquid temperature range	14 .. 194 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	71A
Rated power - P2	0.33 HP
Power (P2) required by pump	0.33 HP
Main frequency	50 Hz
Rated voltage	3 x 220-255D/380-440Y V
Rated current	1.12/0.65 A
Starting current	570-620 %
Cos phi - power factor	0.83-0.71
Rated speed	2840-2880 rpm
IE Efficiency class	IE3
Motor efficiency at full load	77.5-77.2 %
Motor efficiency at 3/4 load	76.8-74.5 %
Motor efficiency at 1/2 load	72.7-68.4 %
Number of poles	2
Enclosure class (IEC 34-5)	55 Dust/Jetting
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Frequency converter	None
Minimum efficiency index, MEI ≥	N/A
Net weight	26 lb
Gross weight	28.9 lb
Environmental approvals	WEEE

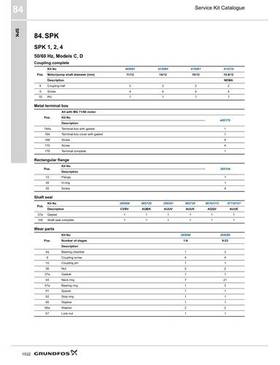

SPK (Service Kit Catalogue)

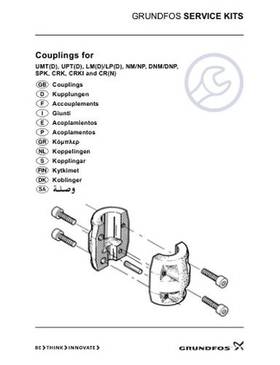

Couplings (Service kit instruction)

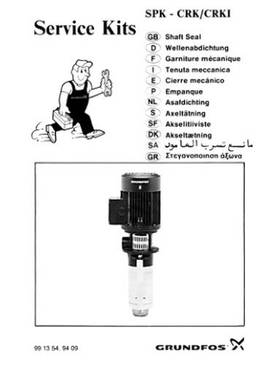

SPK - CRK/CRKI (Service Kit Instruction)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
