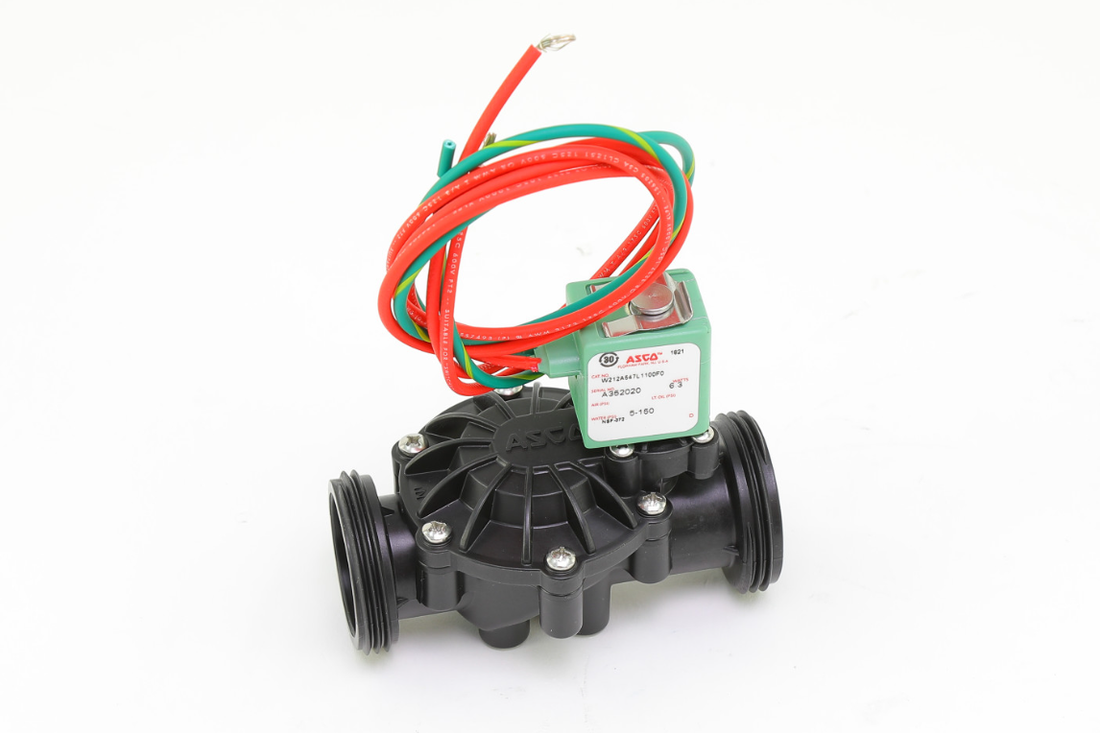

This ASCO solenoid valve is a high-quality, industrial-grade component designed for reliable performance in various applications. With a 3/4" solvent bond connection, it ensures secure and leak-free installation. The valve operates at 120 volts, making it compatible with most standard electrical systems. It features a normally closed (N/C) configuration, meaning the valve is closed when the power is off and opens when power is applied. This type of design is commonly used in systems where default safety position is 'closed.' The product's robust construction allows it to withstand demanding conditions, ensuring long-term durability and consistent performance.
ASCO 212 Composite Valves
ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market – up to 150 psi and 150°F – the 212 Series solves the breakdown and reliability problems in other composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system – the world's fastest, most secure valve connection technology.
Features
- Ideal for reverse-osmosis and misting systems for drinking water, restaurant equipment, and grocery store applications
- NSF 61 Annex G (drinking water), NSF 169 (special purpose food equipment and devices), NSF 372 (lead-free), and NSF Standard 42 certifications
- FasN universal connection system quickly connects to any fitting - NPT, quick-connect with Turn & Lock - for the most rapid assembly, lowest cost, and greatest design flexibility.
- Available in 1/2-inch, 3/4-inch, and 1-inch pipe sizes
Specifications
| Valve Actuation |
Solenoid |
| Body Material |
Engineered Plastics |
| Media |
Water |
| Pipe / Port Size |
1/2 "; 3/4 " ; 1 " |
| Port Type |
NPTF; Turn and Lock |
| Function |
2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open |
| Flow |
From 4.5 Cv to 13 Cv |
| Voltage |
12 DC and 24 DC; 24 AC; 110 AC; 120 AC; 220 AC; 240 AC – 50; 50/60; 60 |
| Max Differential / Max Operating Pressure |
Vacuum to 10.3 Bar; Vacuum to 150 PSIG |
| Operating Environment |
Indoor |
| Standards / Regulations |
CSA; IP65; NSF; UL |
