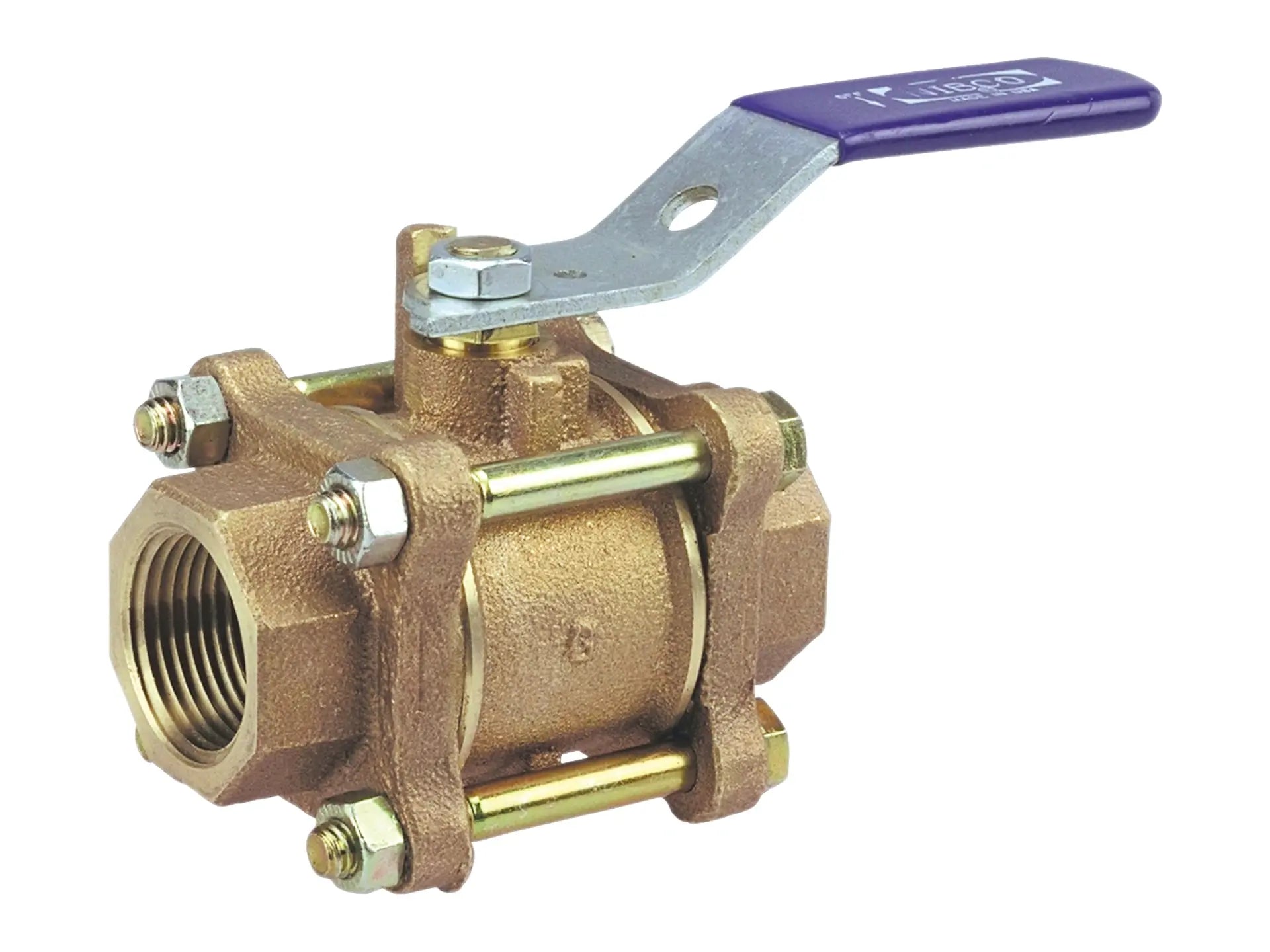

NIBCO T-595-Y-66 1" Bronze Bronze Ball Valve NL99H0A

SKU: LSI155UPCW Part Number: NL99H0A Model: T-595-Y-66

Price:
Sale price$232.95 Regular price$465.10

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

NIBCO bronze ball valve provides bubble-tight shutoff at 600 psi. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The valve is repairable in-line. NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The PTFE seat ring and stainless steel ball and stem exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features threaded ends for easy installation. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Full port
  • Stainless steel ball and stem
  • Blowout-proof stem
  • Vented ball
  • Standard lever handle, optional NIB-SEAL
  • Threaded end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110

Specifications

Manufacturer NIBCO
Part Number NL99H0A
Model T-595-Y-66
Basic Material Bronze
Nominal Pipe Size 1"
Type of Valve Ball
Ball Port Style Full Port
Ball Material Stainless Steel
Ball Stem Material Stainless Steel
Valve End Connection Type Female NPT Thread (FIPT)
End Connection Threaded
Ball Operator CS Standard Lever Handle
Turns Operations Quarter-Turn
Stem Material Stainless Steel
Seat Seal Material PTFE
Valve Trim Package Stainless Steel Trim
Valve Pressure Rating (CWP) 600 psi/41.4 Bar CWP
Valve Pressure Rating (SWP) 150 psi/10.3 Bar SWP
Old Material Number T595Y661
UPC 039923689474
Length 6.51"
Width 3.5"
Height 2.5"
Potable Water Code Not LL Comp not intend potable
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIB-SEAL is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
