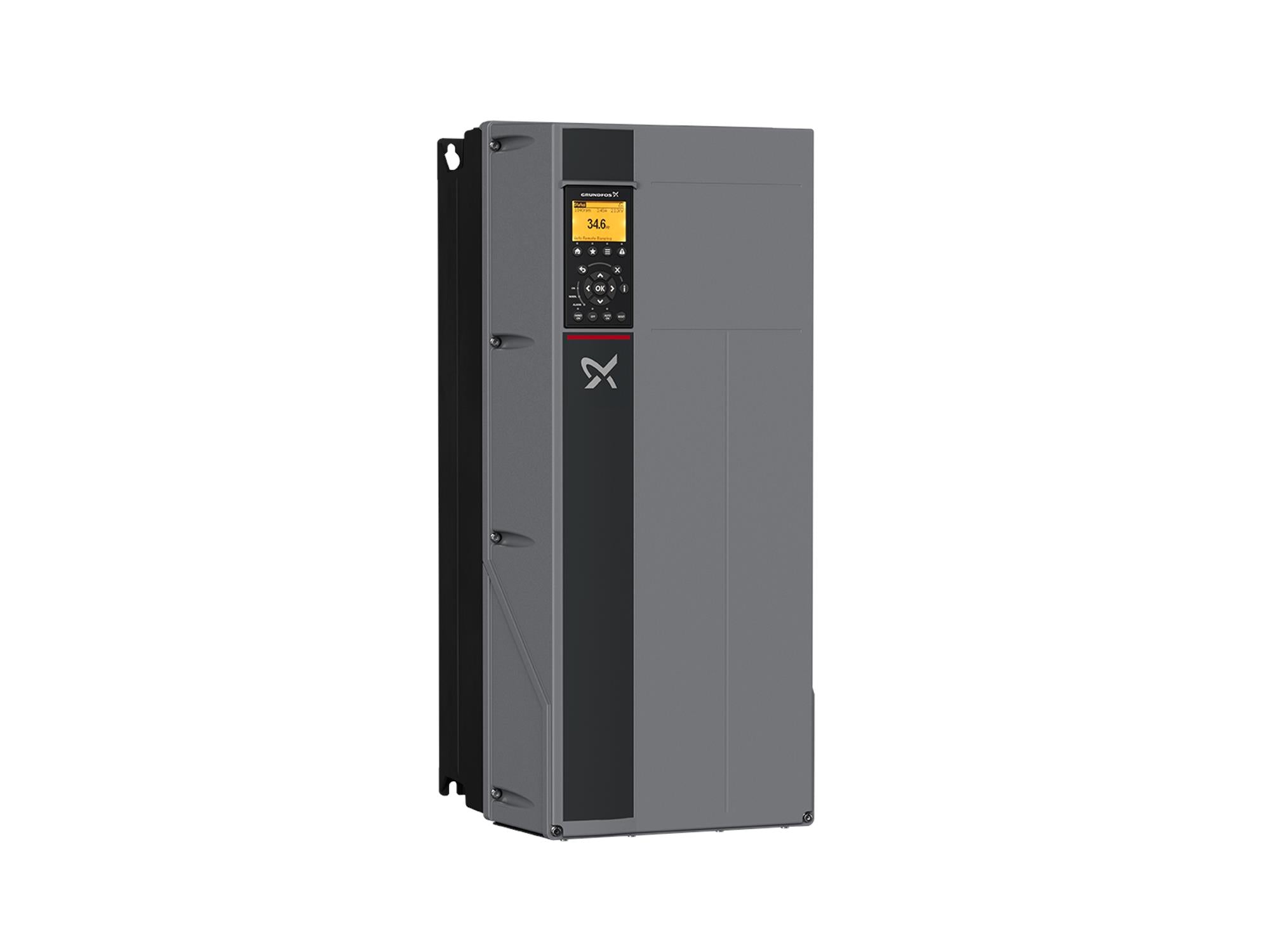

Grundfos 99616617, CUE 1x200-240V IP21 7.5kW Variable Frequency Drive

SKU: LSI17DC17C Part Number: 99616617

Price:
Sale price$3,415.95 Regular price$5,098.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This variable frequency drive is designed for effective speed control of pumps without integrated drives, suitable for water or wastewater networks, building services, and industrial pumping solutions. It includes pre-defined application control modes such as constant pressure and temperature, simplifying programming. The advanced HMI panel allows easy adjustments with a Favorites menu and password-protected main menu for troubleshooting. Compatible with various motor types, it offers additional input opportunities through an input/output add-on board.

Specifications

Manufacturer Grundfos
Part Number 99616617
Approvals CE, CULUS, C-TICK
Range of ambient temperature 32 .. 113 °F
Relative humidity 5-95 %
Mounted on Wall
Rated power - P2 10 HP
Main frequency 50 / 60 Hz
Rated voltage 1 x 200-240 V
Rated current 30.8 A
Maximum current consumption 30.8 A
Efficiency at full load 98 %
Enclosure class (IEC 34-5) IP21
Built-in motor protection YES
Thermal protec external
Cable length 150/300 m
Net weight 59.5 lb
Gross weight 60 lb
Danish VVS No. 382994275
Country of origin US
Custom tariff no. 8504.40.4000

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
