Please note this item is made to order and additional lead-times may apply.

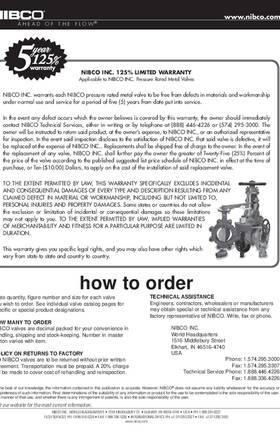

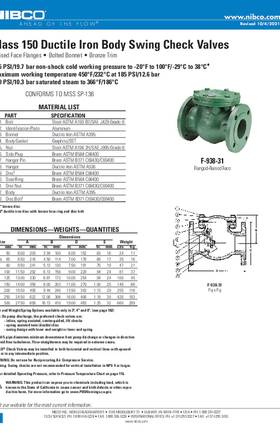

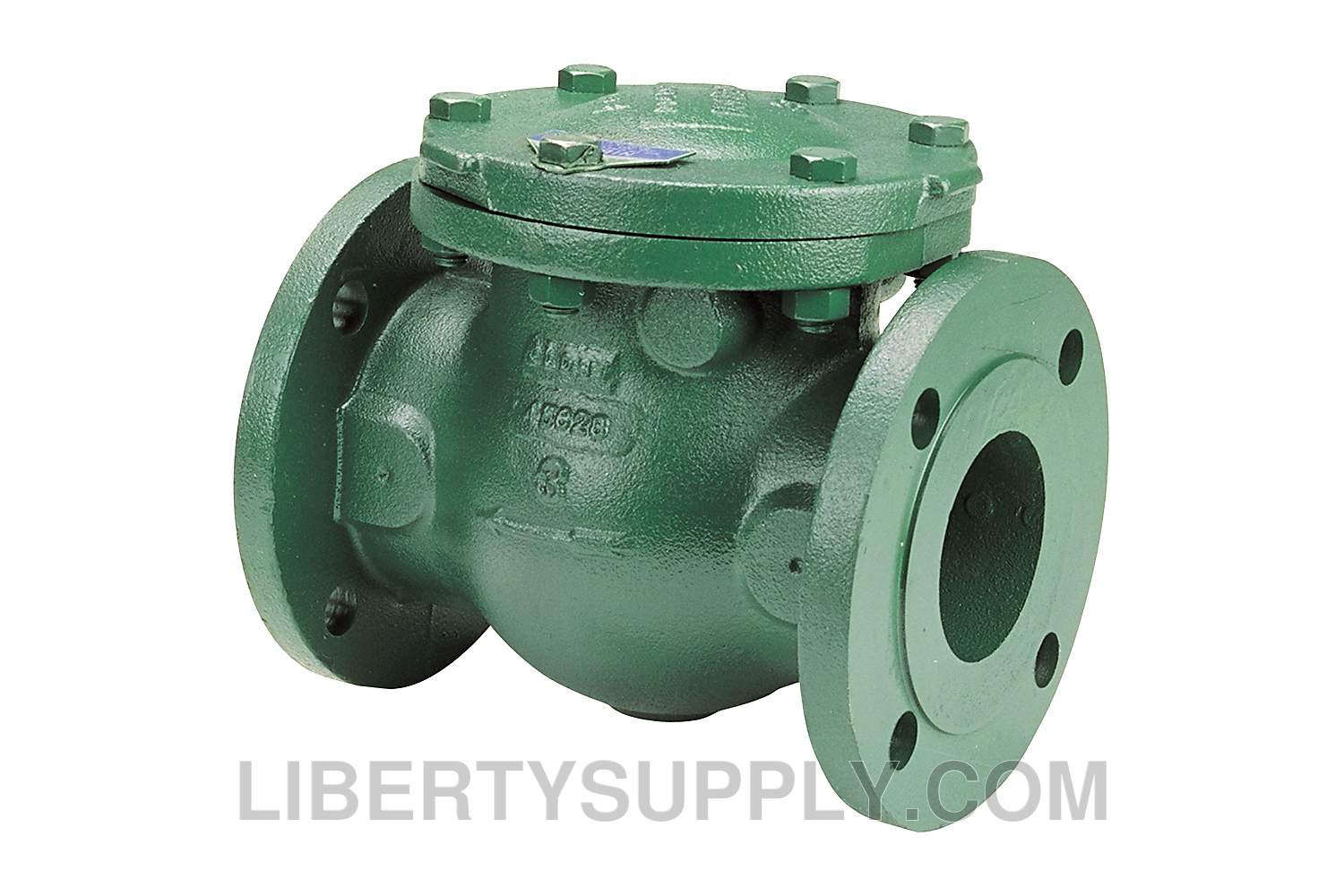

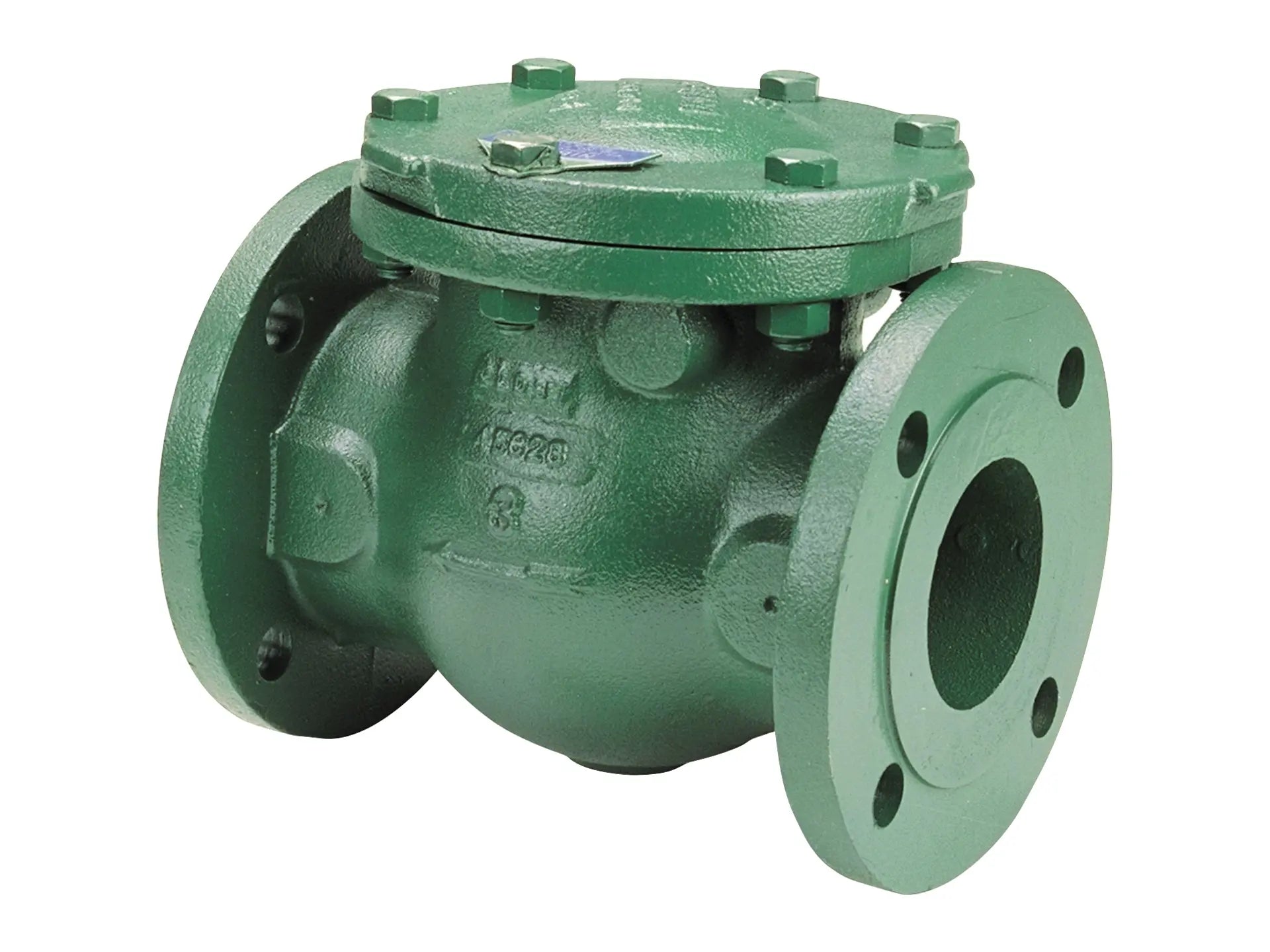

This NIBCO ductile iron horizontal swing check valve is designed with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The ductile iron Class 150 check valve features raised face flanged end connections for easy installation. It is equipped with a bolted bonnet for maintenance accessibility. The swing check valve includes a renewable cast bronze seat and disc. The check valve is recommended for commercial and industrial steam, water, oil and gas services. With its ductility, the valve displays higher physical properties than standard grey cast iron. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 250 psi/17.2 bar non-shock cold working pressure
- 150 psi/10.3 bar saturated steam to 366°F/185°C
- Iron body, bronze mounted (IBBM)
- Bolted bonnet
- Renewable seat and disc
- Bronze mounted trim
- Class 150 flanged end connections
- Conforms to MSS SP-136
