Description

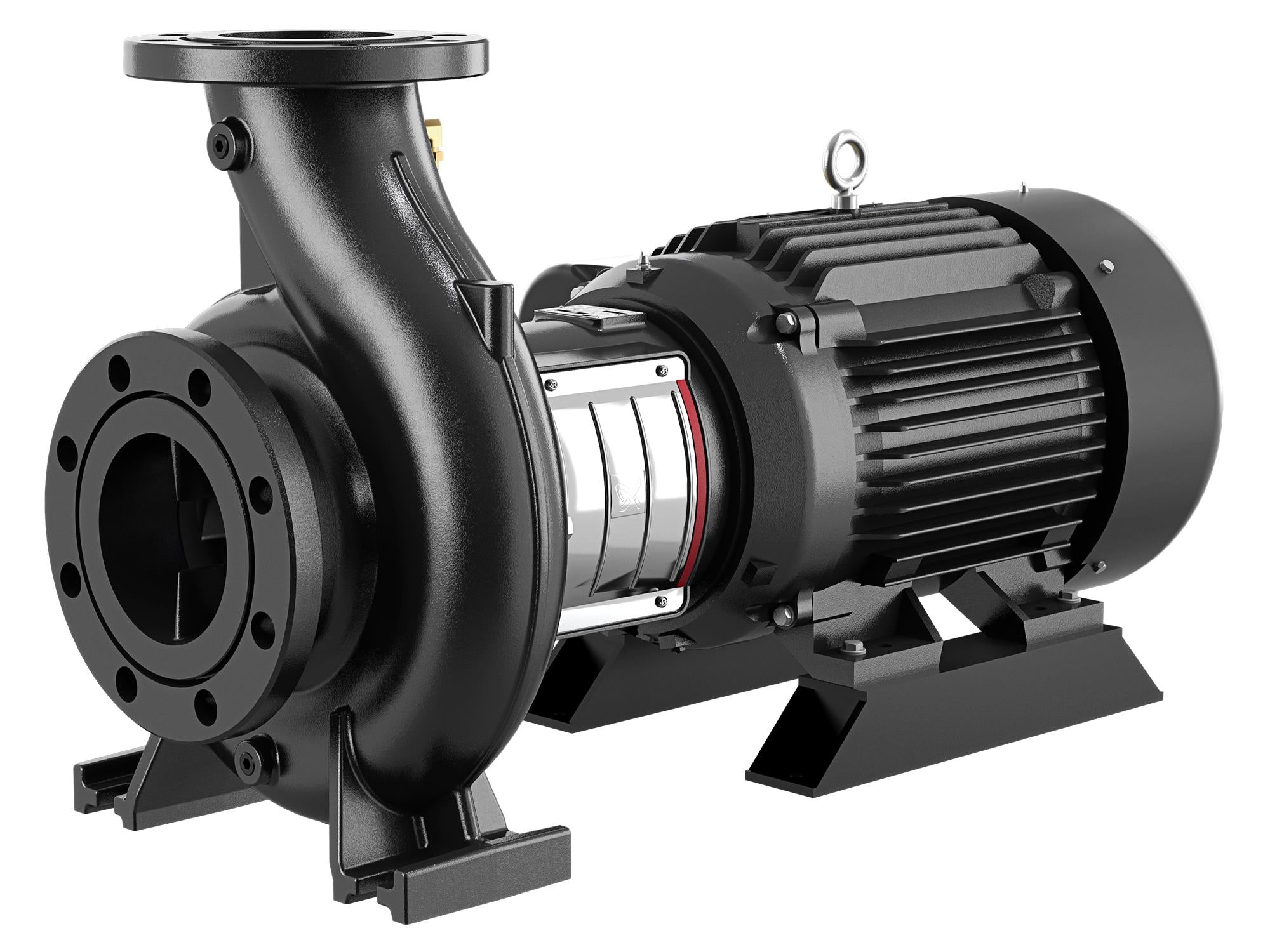

This split-coupled end-suction pump has a NEMA standard motor and ANSI flange fittings. It is a non-self-priming, single-stage centrifugal volute pump with an axial inlet port, radial outlet port, and horizontal shaft. The back pull-out design allows for easy removal of the motor, motor stool, cover, and impeller without disturbing the housing or pipework. It adheres to ISO 5199 standards with American dimensions for the pump and flanges. Inlet and outlet flanges conform to ASME 16.1/16.42 standards with performance rated at 175/363 PSI (12/25 bar). The mechanical shaft seal follows EN 12756 dimensions, while motors meet NEMA standards and can be used with an MLE motor or connected to an external frequency converter for commercial heating applications.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 92559186 |
Rated pump speed | 3510 rpm |
Rated flow | 307 US gpm |
Rated head | 152.7 ft |
Actual impeller diameter | 6.3 in |
Code for shaft seal | BQQE |
Curve tolerance | 2B HI 14.6:2016 |
Pump version | AS |
Pump housing | Cast iron, EN-GJL-250, ASTM A48-35 |
Impeller | Stainless steel, EN 1.4308, AISI 304 |
Internal pump house coating | No coating |
Material code | S2 |
Code for rubber | E |
Shaft | Stainless steel, EN 1.4021/1.4034, AISI 420 |
Maximum ambient temperature | 104 °F |
Maximum operating pressure | 174.05 psi |
Type of connection | ANSI |
Size of suction port | 2.5 inch |
Size of outlet port | 2 inch |
Pressure rating for connection | Class 125 |
Mounting options design code | C |
Support block (Yes/No) | Y |
Connect code | G |
Pumped liquid | Water |
Liquid temperature range | -13 .. 248 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor standard | NEMA |
IE efficiency class | IE3 / NEMA Premium |
Rated power - P2 | 20 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 230/460 V |
Rated current | 47-23.5 A |
Rated speed | 3510 rpm |
Motor efficiency at full load | 91.0 % |
Number of poles | 2 |
Enclosure class (IEC 34-5) | ODP |
Mounting designation (IEC 34-7, Code I) | NEMA type C / foot |
Bearing insulation type N-end | No insulation |
Frequency converter | None |
DOE Pump Energy Index CL | 0.90 |
Net weight | 386 lb |
Gross weight | 387 lb |
Shipping volume | 9.22 ft³ |
Country of origin | US |
