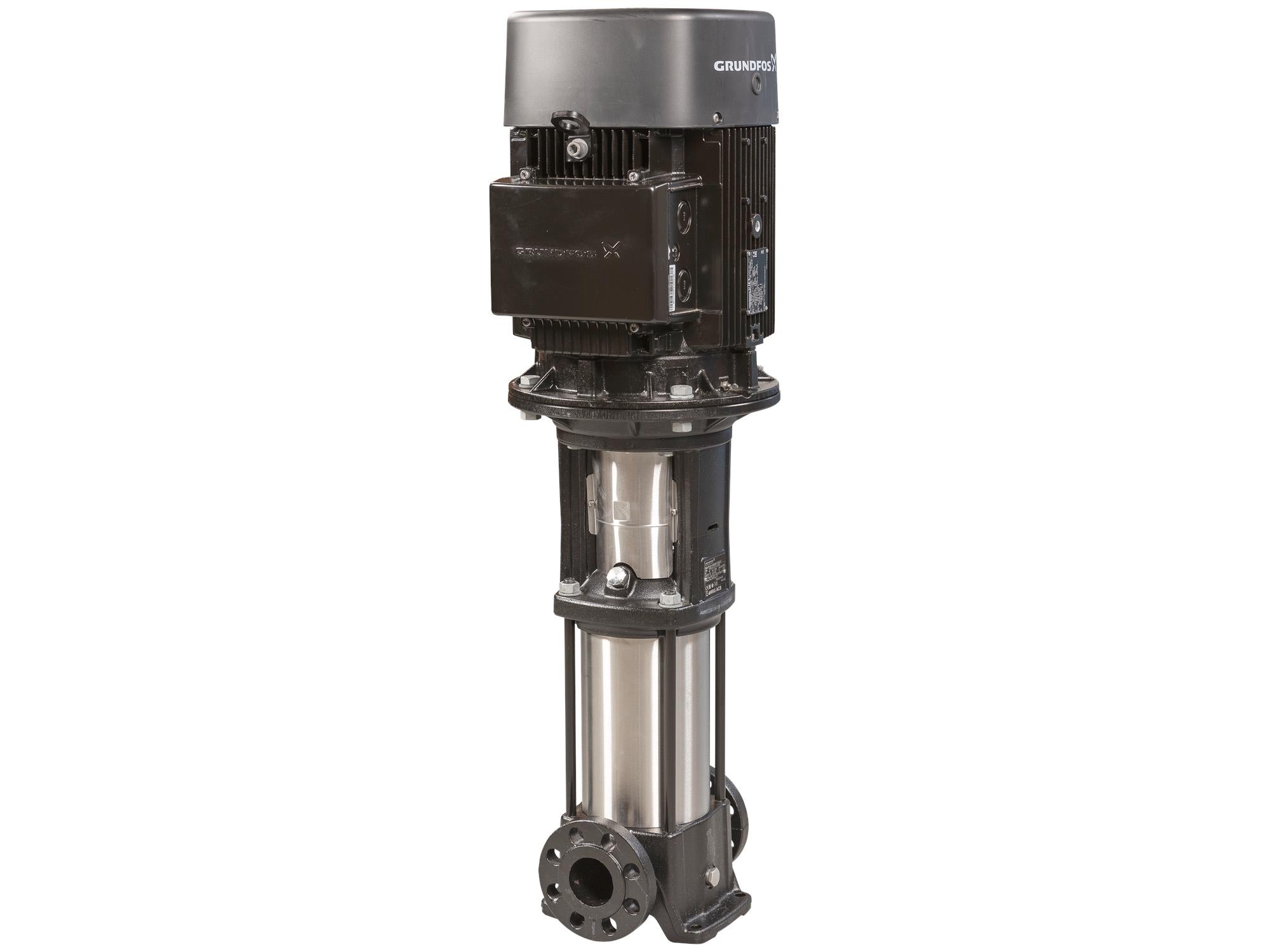

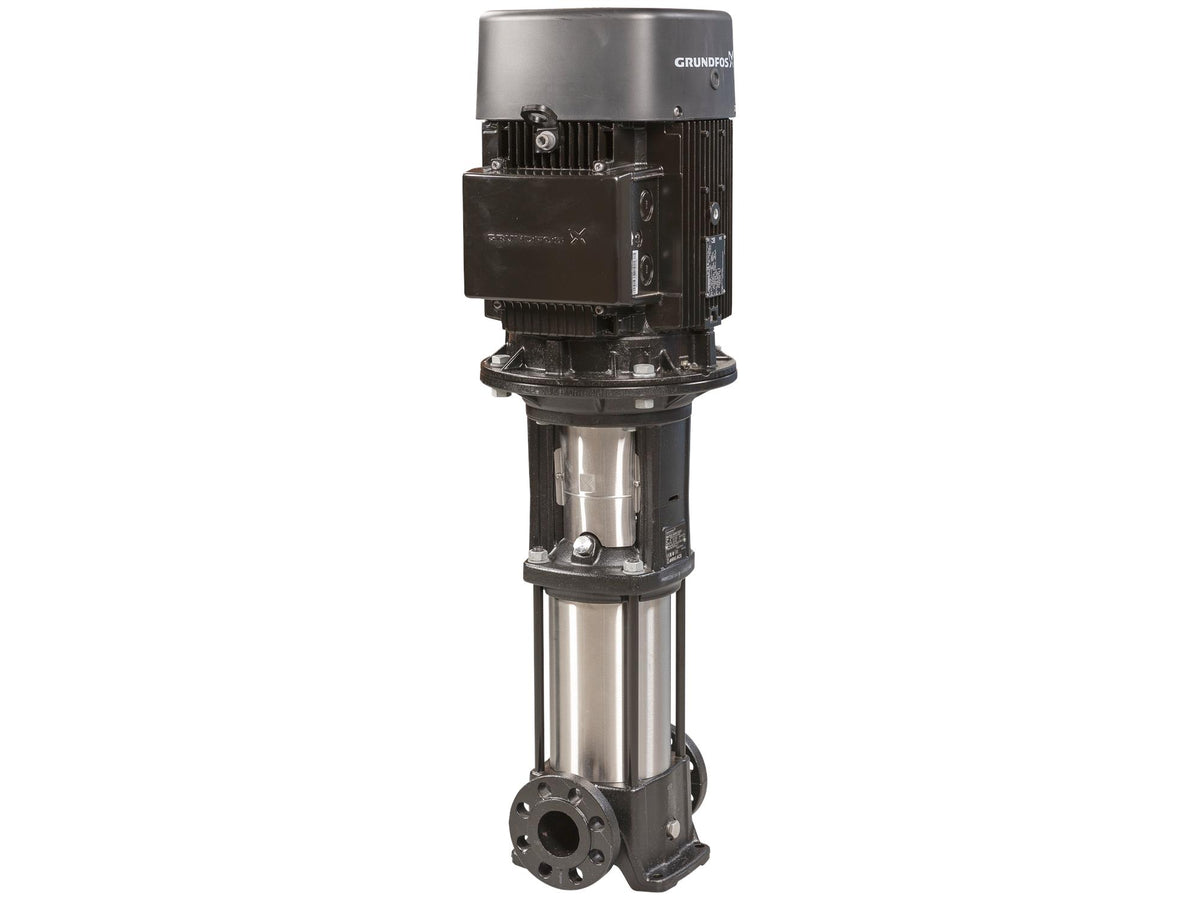

Description
This vertical multistage centrifugal pump has suction and discharge ports on the same level. The pump head and base are constructed from cast iron, while all other wetted parts are made of stainless steel (EN 1.4301).
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96518042 |
| Rated pump speed | 3526 rpm |
| Rated flow | 30.4 US gpm |
| Rated head | 546.6 ft |
| Maximum head | 711.3 ft |
| Stages | 22 |
| Impellers | 22 |
| Number of reduced-diameter impellers | 0 |
| Low NPSH | N |
| Pump orientation | Vertical |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water | WRAS,ACS |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Base | Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Code for rubber | E |
| Bearing | SIC |
| Maximum ambient temperature | 140 °F |
| Maximum operating pressure | 362.59 psi |
| Max pressure at stated temperature | 363 psi / 250 °F, 363 psi / -4 °F |
| Type of connection | DIN / ANSI / JIS |
| Size of inlet connection | DN 25/32 |
| Size of outlet connection | DN 25/32 |
| Pressure rating for connection | PN 25 |
| Flange rating inlet | 250 lb |
| Flange size for motor | FF265 |
| Connect code | FGJ |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | IEC |
| Motor type | 132SC |
| Rated power - P2 | 7.5 HP |
| Power (P2) required by pump | 7.5 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 220-277D/380-480Y V |
| Rated current | 18,4-16,2/10,6-9,30 A |
| Starting current | 1020-1480 % |
| Cos phi - power factor | 0.90-0.80 |
| Rated speed | 3510-3550 rpm |
| IE Efficiency class | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load | 89.5 % |
| Motor efficiency at 3/4 load | 90.3-89.9 % |
| Motor efficiency at 1/2 load | 89.9-87.9 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting |
| Insulation class (IEC 85) | F |
| Built-in motor protection | PTC |
| Frequency converter | None |
| Terminal box position | 6 |
| Minimum efficiency index, MEI ≥ | 0.57 |
| Net weight | 169 lb |
| Gross weight | 215 lb |
| Shipping volume | 11.3 ft³ |

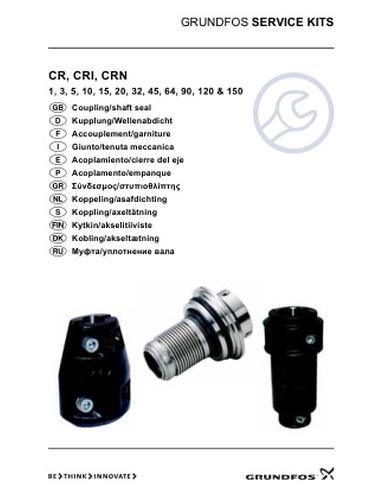

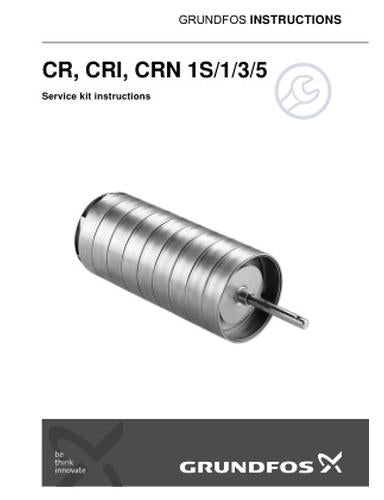

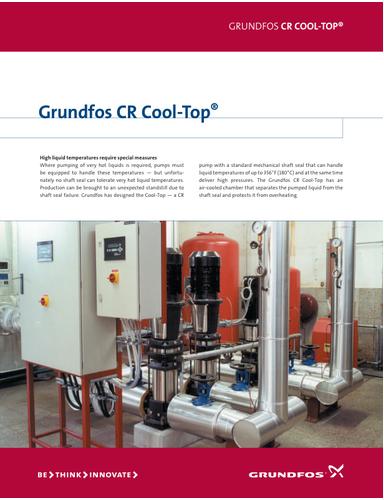

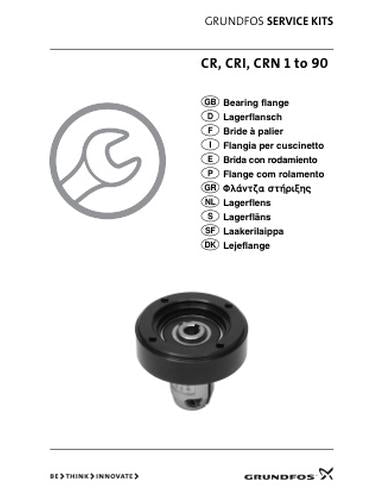

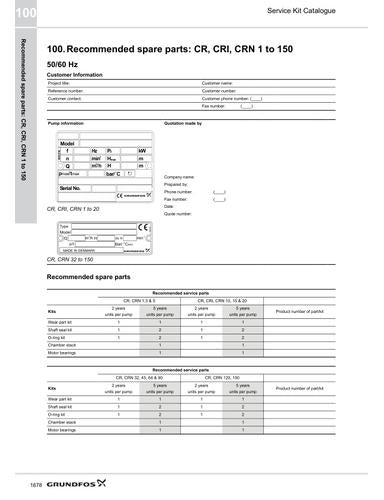

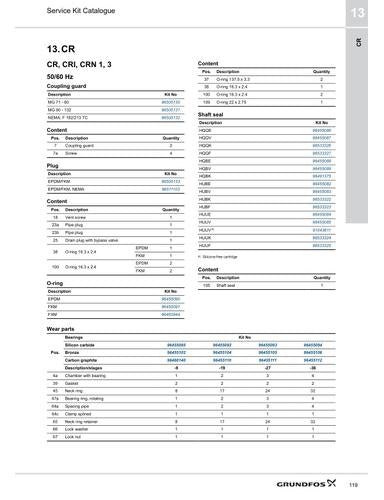

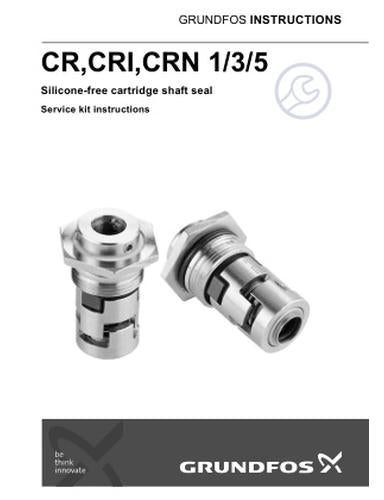

Documents
