Approval |
EAC, LLC CDC TYSK |
China RoHS compliance |
Out of scope |
Design |
Solder Adapter only |
EU RoHS compliance |
Yes with exemptions |
EU RoHS exemption clause |
6(a), 6(c) |
Fluid Group |
1 |
In scope of WEEE and contain batteries |
No |

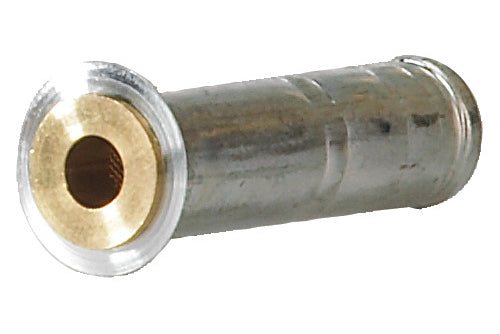

Orifice size |
4 |
Rated cap. cond. Range N [IMP] |
tcond=100°F, tevap=40°F, tliq=98°F |
Rated cap. cond. Range N [SI] |
tcond=38°C, tevap=4.4°C, tliq=37°C |
Rated cap. R134a, Range N [kW] |
6.4 kW |
Rated cap. R134a, Range N [TR] |
1.8 TR |
Rated cap. R22, Range B [kW] |
5.6 kW |
Rated cap. R22, Range B [TR] |
1.6 TR |
Rated cap. R22, Range N [kW] |
12.1 kW |
Rated cap. R22, Range N [TR] |
3.4 TR |
Rated cap. R404A, Range B [kW] |
4.5 kW |
Rated cap. R404A, Range B [TR] |
1.3 TR |
Rated cap. R404A, Range N [kW] |
9.9 kW |
Rated cap. R404A, Range N [TR] |
2.8 TR |
Rated cap. R407C, Range N [kW] |
12.4 kW |
Rated cap. R407C, Range N [TR] |
3.5 TR |
Rated cap. R507, Range B [kW] |
4.5 kW |
Rated cap. R507, Range B [TR] |
1.3 TR |
Rated cap. R507, Range N [kW] |
9.9 kW |
Rated cap. R507, Range N [TR] |
2.8 TR |
Rated cap. R513A, Range N [kW] |
5.4 kW |
Rated cap. R513A, Range N [TR] |
1.5 TR |
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
Refrigerants |
R134a/R513A, R22/R407C, R23, R236fa, R404A/R507A, R407A, R407C, R448A, R449A, R452A |
Serviceable |
No |
Temperature range [°C] [max] |
10°C |
Temperature range [°C] [min] |
-40°C |
Temperature range [°F] [max] |
50°F |
Temperature range [°F] [min] |
-40°F |
Type |
ORF |
UK RoHS compliance |
Out of scope |
Used for product |
T 2, TE 2 |
