Grundfos 97757968, CRI 10-14 A-FGJ-A-E-HQQE Vertical Multistage Pump

Name: Grundfos 97757968, CRI 10-14 A-FGJ-A-E-HQQE Vertical Multistage Pump
Brand: Grundfos
SKU: LSI24KU6Q3
Price: 7739.95 USD
Availability: OutOfStock

SKU: LSI24KU6Q3 Part Number: 97757968

Price:

$7,739.95 $11,551.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with stainless steel materials (EN 1.4301) that come into contact with the liquid, making it suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	97757968
Rated pump speed	3470 rpm
Rated flow	53.3 US gpm
Rated head	512.5 ft
Maximum head	669.3 ft
Actual impeller diameter	3.66 in
Stages	14
Impellers	14
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	IC 411
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F, 363 psi / -4 °F
Type of connection	DIN / ANSI / JIS
Size of inlet connection	DN 50
Size of outlet connection	DN 50
Pressure rating for connection	PN 25
Flange rating inlet	300 lb
Flange size for motor	254TC
Connect code	FGJ
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	BALDOR
Rated power - P2	15 HP
Power (P2) required by pump	15 HP
Main frequency	60 Hz
Rated voltage	3 x 208-230/460 V
Service factor	1.15
Rated current	38,0-35,0/17,5 A
Starting current	680 %
Full load SF current	44-40/20 A
Cos phi - power factor	0.87
Rated speed	3520 rpm
IE efficiency	IE3 91%
IE Efficiency class	IE3 / NEMA Premium
Motor efficiency at full load	91 %
Motor efficiency at 3/4 load	91.6 %
Motor efficiency at 1/2 load	91 %
Number of poles	2
Enclosure class (IEC 34-5)	IP54
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Frequency converter	None
DOE Pump Energy Index CL	0.87
Net weight	329 lb
Gross weight	441 lb
Shipping volume	17.2 ft³

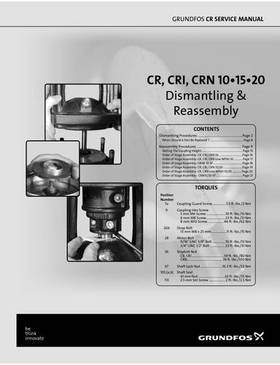

CR, CRI, CRN 10, 15 & 20 (Dismantling & Reassembly) (Service manual)

CR Reading the Pump Nameplate

CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)

CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)

GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)

CR, CRI, CRN, CRT (I & O instructions)
