Please note this item is assembled to order and additional lead-times may apply.

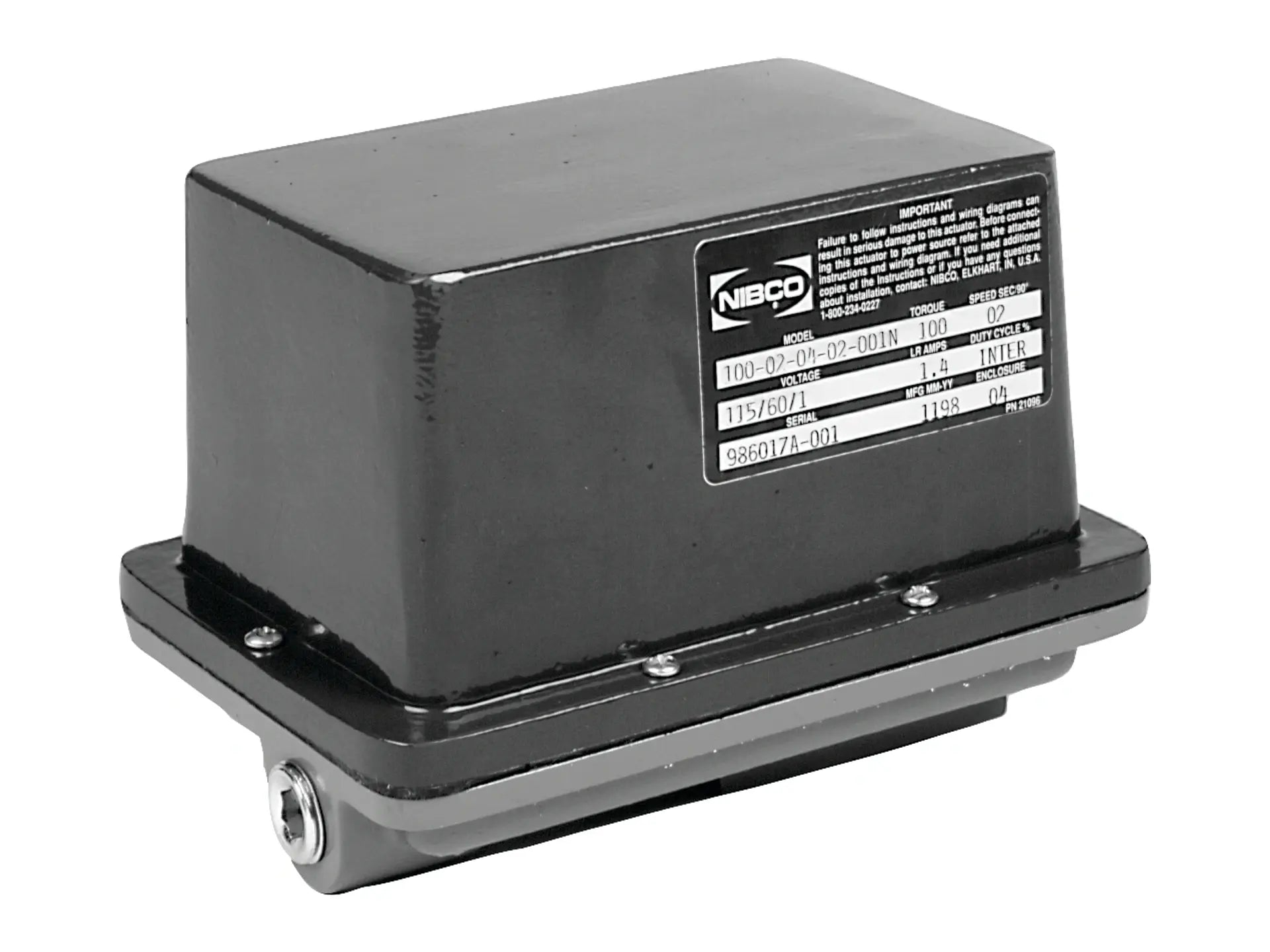

This NIBCO line of quality electric actuators offers a compact, rugged design. The actuators are designed for quarter-turn applications, including ball valves, butterfly valves, plug valves, dampers, and vents. NIBCO electric actuators operate on the gear reduction motor principle, which allows opening and closing speeds ranging from two seconds to one minute or longer. With reversible motors that are rated for continuous duty, NIBCO electric actuators provide maximum torque output and longer life. They also feature thermal overload protection to safeguard the motor from extreme temperatures. For automated or computer-controlled flow control systems, NIBCO electric actuators offer exceptional convenience and flexibility. Ideal for applications where the valve is not readily accessible, the actuators provide a labor-saving alternative to manual flow control regulation. These electric actuators and control devices are recommended for use in industrial process and commercial control applications. Please refer to NIBCO technical data sheets, valve selection guides and catalog for engineering and installation information. Engineered with a modular approach, NIBCO electric actuation systems offer the flexibility to actuate new valves or to retrofit existing valves with unprecedented ease. Electric actuation systems feature an ISO standard mounting design, assuring long-term industry acceptance. Choose NIBCO flow control products for the most specified, versatile and economical option in commercial and industrial applications. NIBCO actuation products are backed by the NIBCO limited warranty.
Features
- Permanently lubricated gear train
- Stainless steel output drive
- 2, 10, and 13 second cycle
- 2-second cycle models have unidirectional operation and mechanical brake
- 10 and 13 second cycle models have single phase capacitor run motors with internal brake
- Single 1/2" NPT conduit entrance
- Temperature range -40°F to +140°F
- Voltage 110 VAC
- Torque 100-350 in/lb
- Enclosures CSA certified to NEMA 1, 2, 3, 3R, 4, 4X and 5
- Female ISO 5211, F03, F04 and F05 mounting bolt circle/drive sleeve
