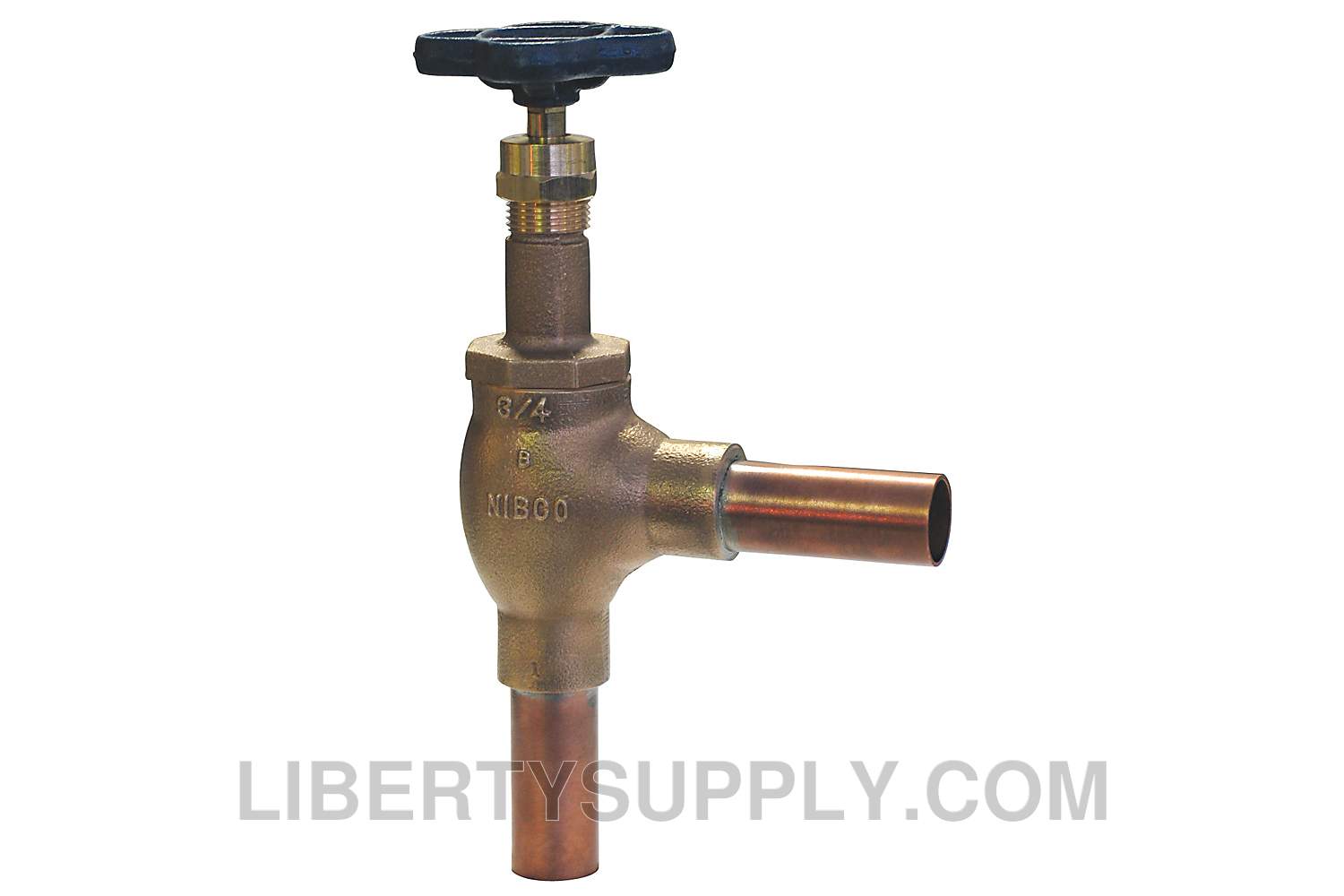

NIBCO PS-311-Y 1-1/4" Press Angle Valve NR4K00B

SKU: LSI2F0R8HE Part Number: NR4K00B Model: PS-311-Y

Price:
Sale price$486.95 Regular price$838.00

Save 42% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

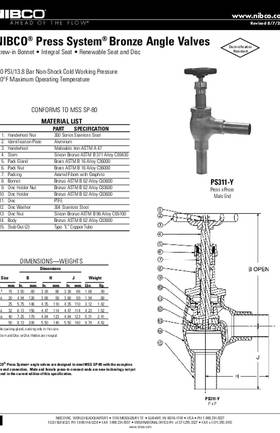

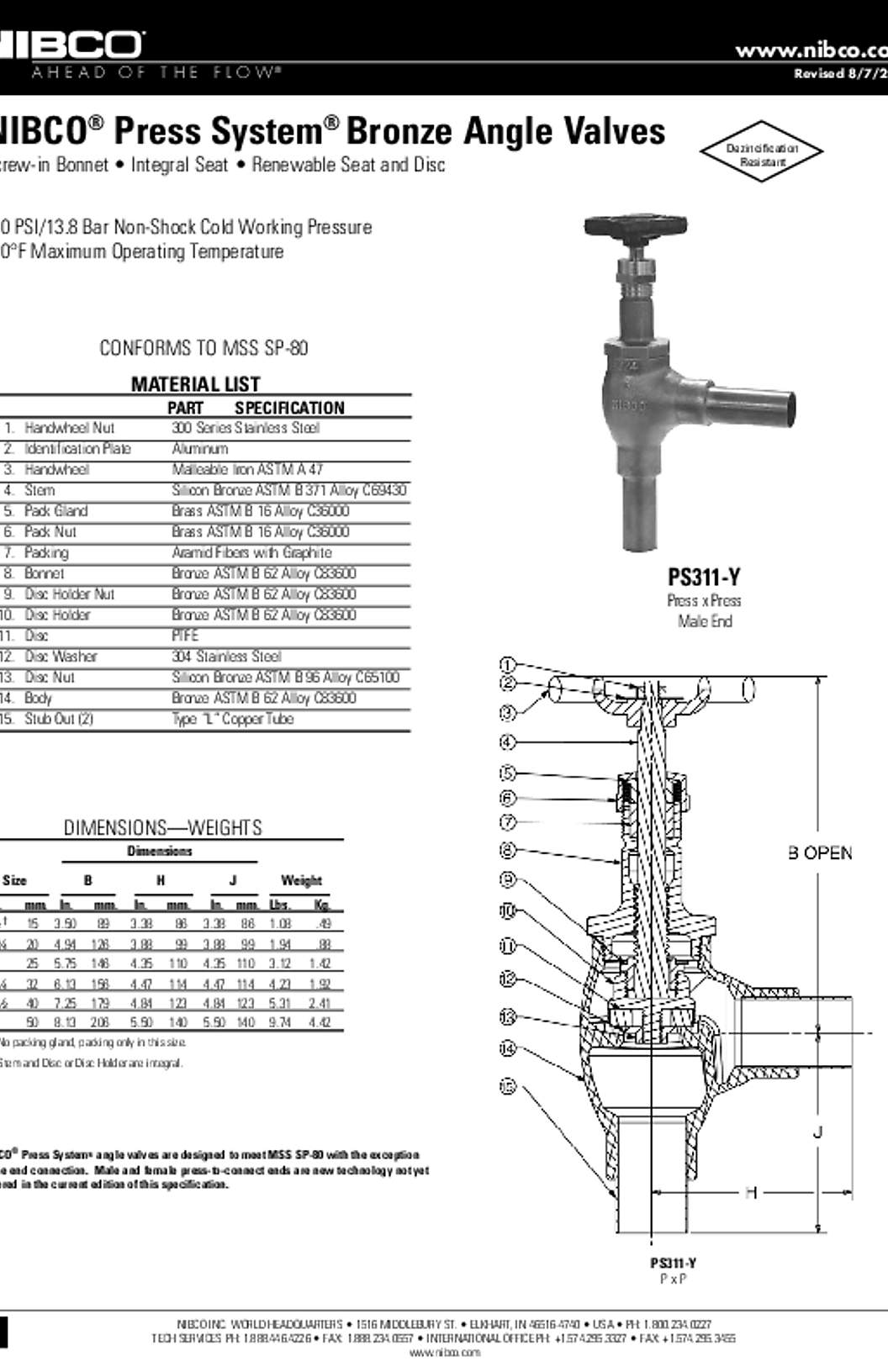

This NIBCO Press System bronze angle valve features press x press male end connections for quick and easy joinery to female press connections. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The angle valve is used for throttling or regulating flow and the design eliminates a low area in the system where particles can settle and corrode or solidify. This NIBCO bronze angle valve features a screw in bonnet with integral seat and renewable seat and disc. The seat and disc is available in PTFE. This NIBCO Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings -- the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO Press System valves are backed by a 5-year limited warranty.

Features

  • Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
  • Maximum service temperature 250°F
  • Screw-in bonnet
  • Integral seal
  • Renewable seat and disc
  • Press x press male end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-80

Specifications

Manufacturer NIBCO
Part Number NR4K00B
Model PS-311-Y
Type of Valve Angle
Material Bronze
Connection Size 1-1/4" x 1-1/4"
Connection Type Male Press Stub ends
Seat Seal Material PTFE
Turns Operations Multi-Turn
Multi-Turn Operator Standard Handwheel
Multi-Turn Bonnet Design Screw-in Bonnet
Valve Pressure Rating (PSI) 200 PSI rated pressure
Potable Water Code Not LL Comp not intend potable
UPC Code 039923233677
Length 10.6"
Width 6.1"
Height 3.3"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIBCO® Press System is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
