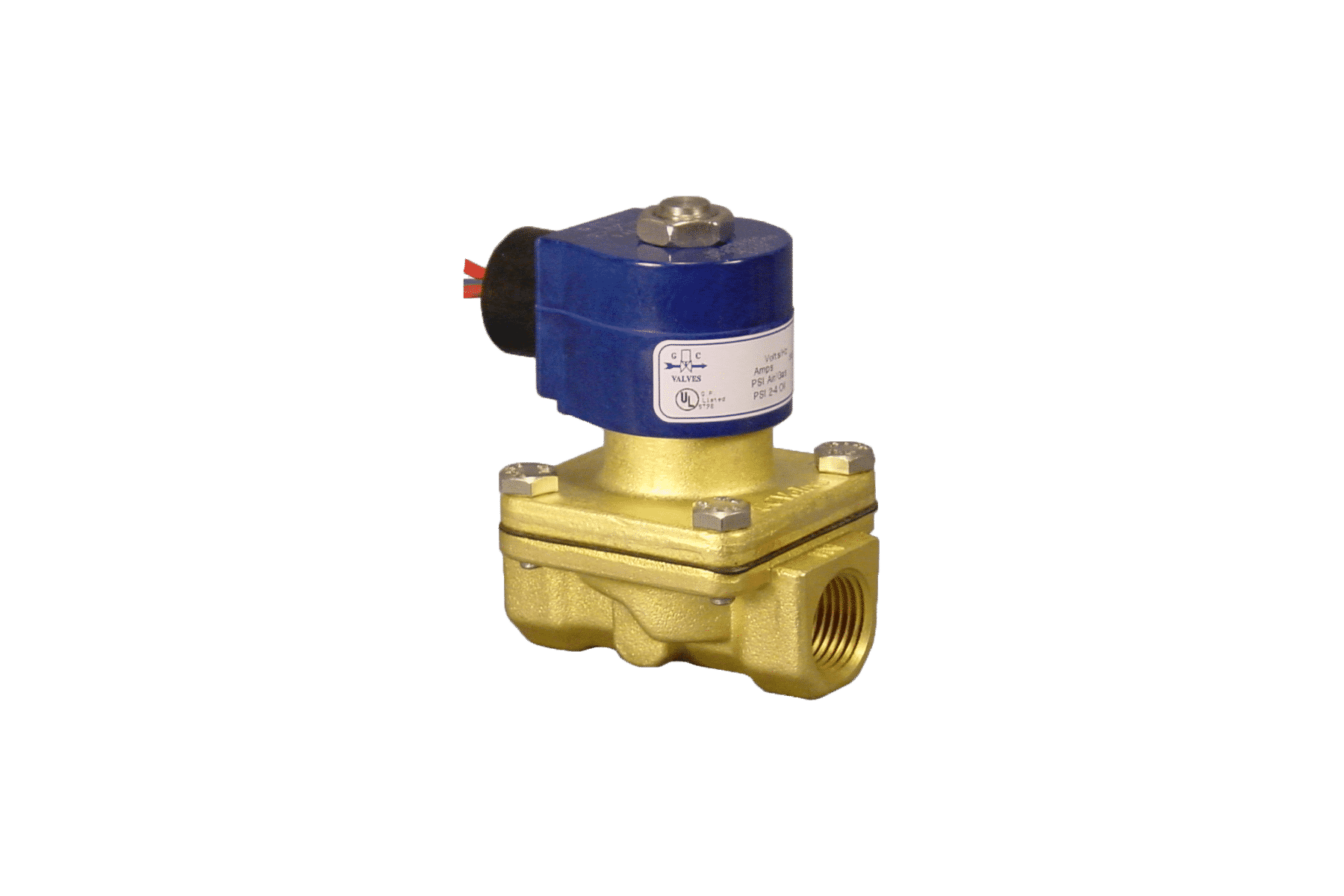

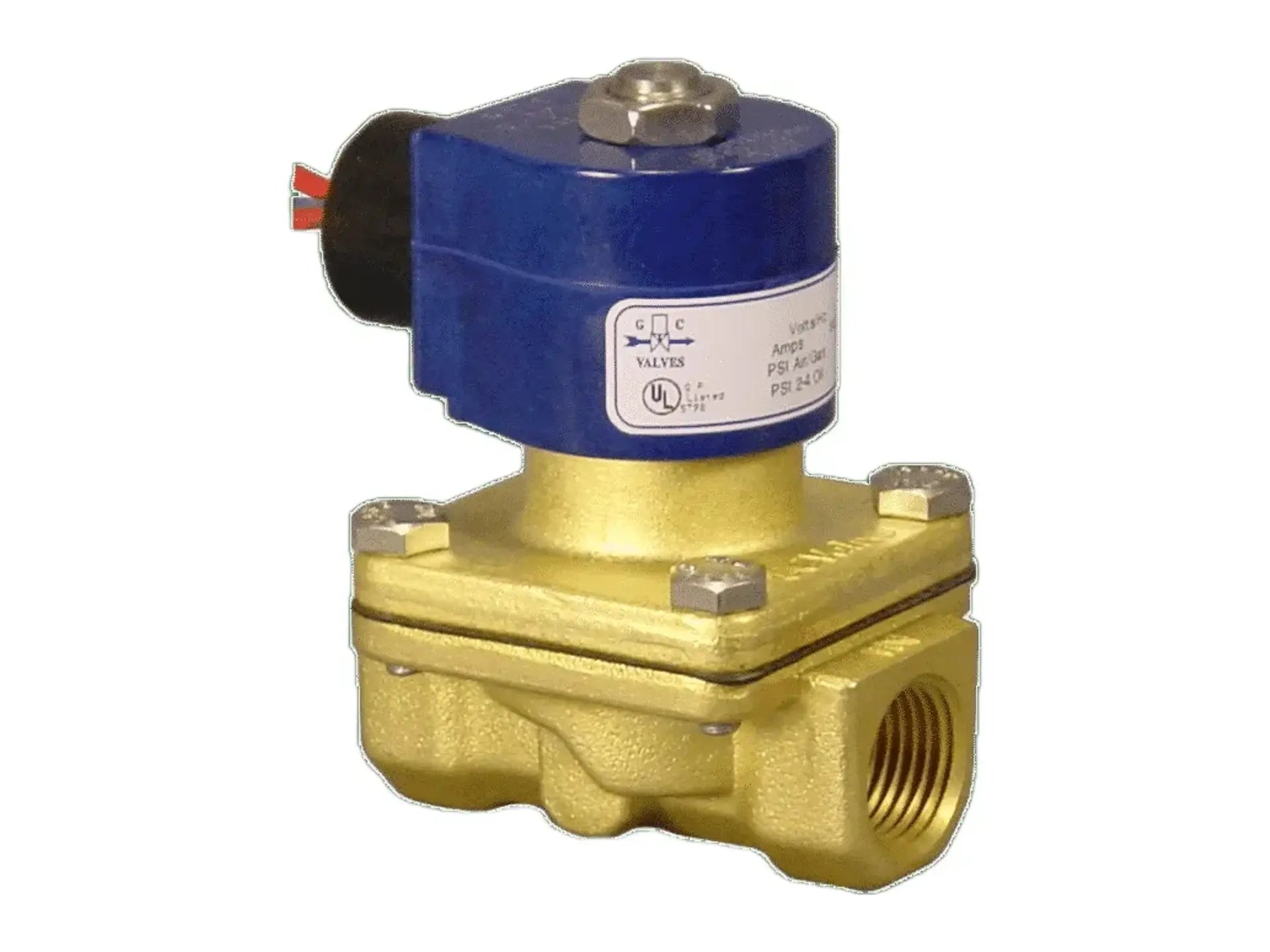

This GC Valves solenoid valve features a 3/8" port size and is normally closed (NC). It is designed for air systems up to 200 psi and water or oil systems up to 150 psi.
Specifications
| Valve Series |
S21 |
| Function |
2-Way Normally Closed |
| Housing |
1/2" Conduit NEMA 4X |
| Coil Class |
F |
| Voltage |
220V/240V AC |
| Seal Material |
Nitrile |
| Body Material |
Brass |
| Pipe Size |
3/8" NPT |
| Orifice |
5/8" |
| Media Type |
Aggressive Media, Air & Neutral Gases, Light Oil, Slightly Aggressive Media, Steam, Water |
| Approvals |
CE, CSA, UL |
| Valve Type |
Diaphragm |
