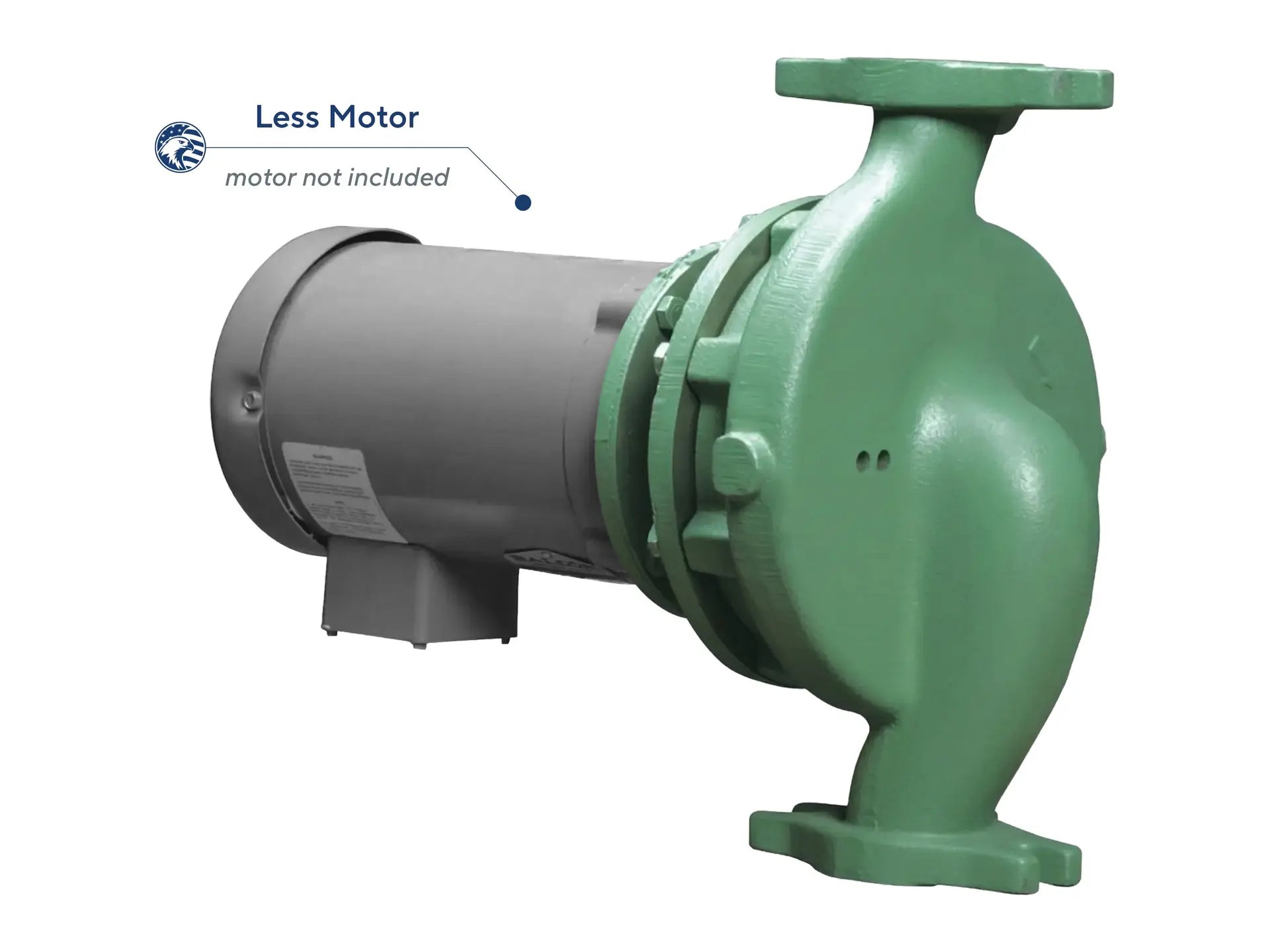

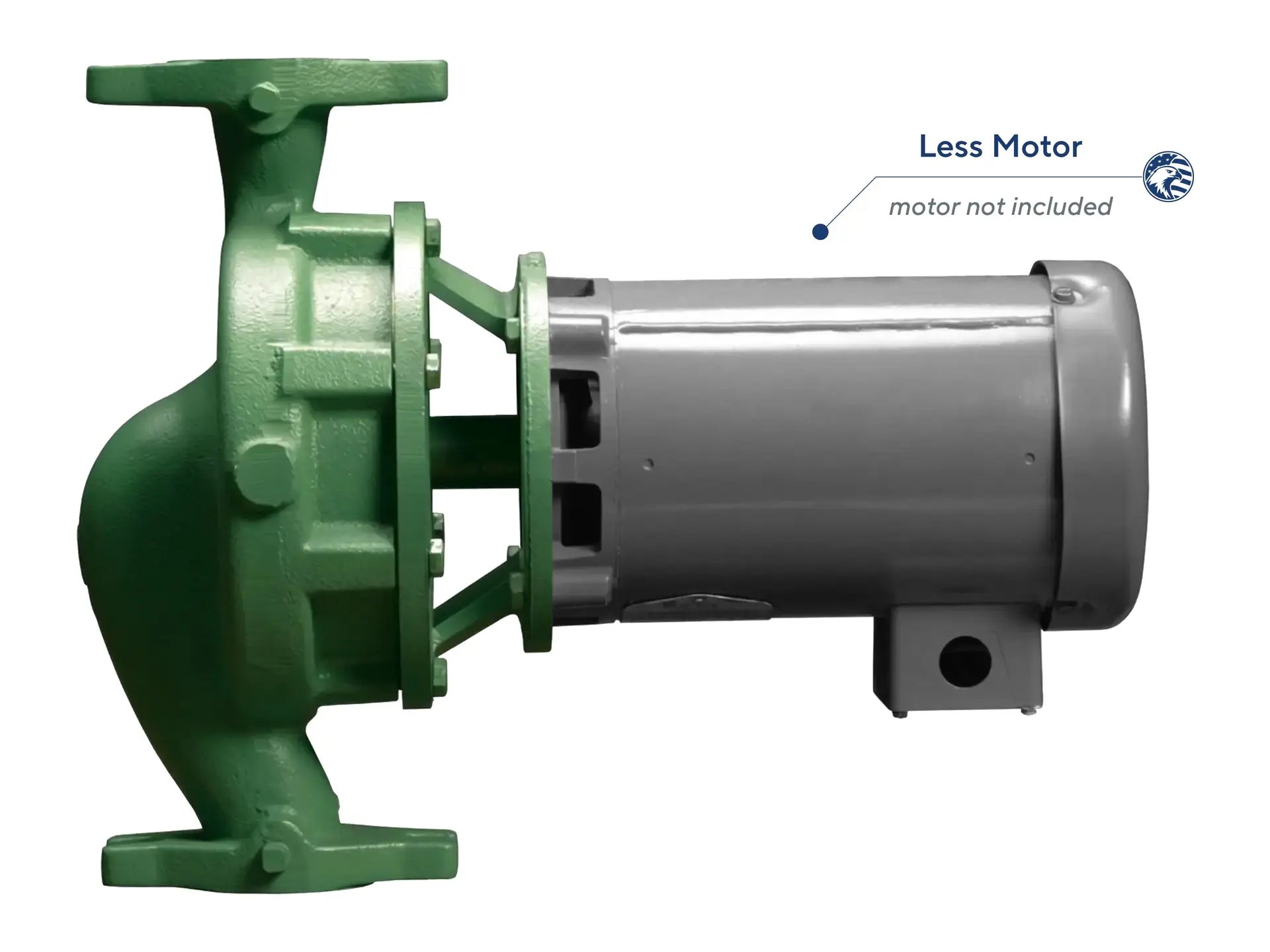

This close-coupled in-line pump has 1 1/2" suction and discharge ports and a 6.35" nominal impeller diameter. Built in accordance with Hydraulic Institute standards, the unit includes a cast iron casing and bracket paired with a stainless steel impeller and shaft. This hydraulic assembly uses a Sealide C mechanical seal with a silicon carbide stationary seat, a carbon rotating element, and a Viton elastomer to accommodate fluid temperatures up to 250°F. The casing structure carries a maximum operating pressure rating of 175 PSI, and the in-line design allows for installation in either vertical or horizontal orientations while the system piping provides the necessary support for the unit.
The assembly is built for a standard motor configuration. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
