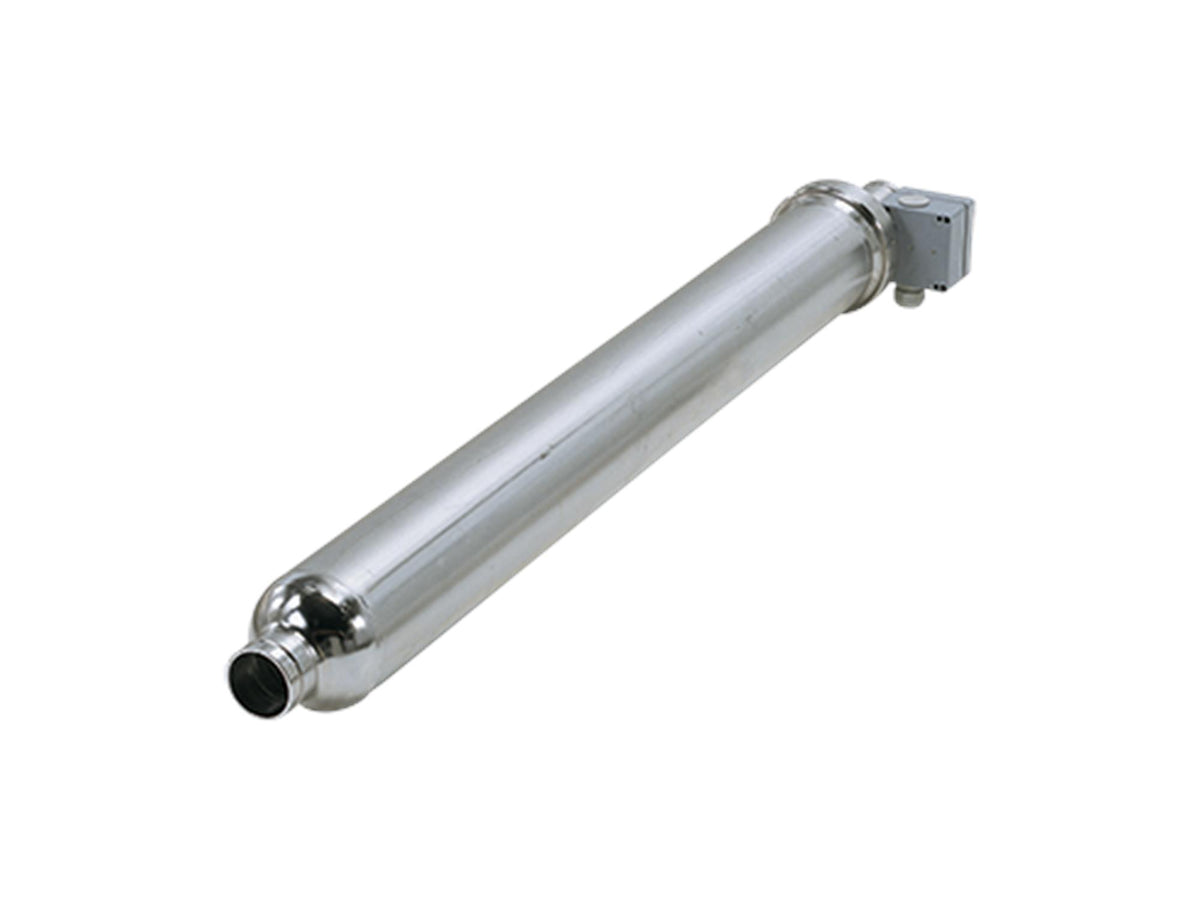

Name: Grundfos 96293261, Booster Module BM hp 17-4-R NBR
Brand: Grundfos
SKU: LSI2LRADC1
Price: 49859.0 USD
Availability: OutOfStock

Grundfos 96293261, Booster Module BM hp 17-4-R NBR

Roll over image to zoom in Click on image to zoom

This high pressure booster module is used for boosting and liquid circulation in systems under a high static pressure.

Manufacturer	Grundfos
Part Number	96293261
Rated flow	74.8 US gpm
Rated head	105 ft
Stages	4
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	1189.31 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	89 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	7.5 HP
Main frequency	50 Hz
Rated voltage	3 x 380-415 V
Service factor	1.15
Rated current	13.6-13.8 A
Rated speed	2850-2870-2880 rpm
Start. method	DOL
Enclosure class (IEC 34-5)	IP66
Minimum efficiency index, MEI ≥	0.70
Net weight	175 lb
Gross weight	268 lb

BM, BMhp (Data booklet)
