Description

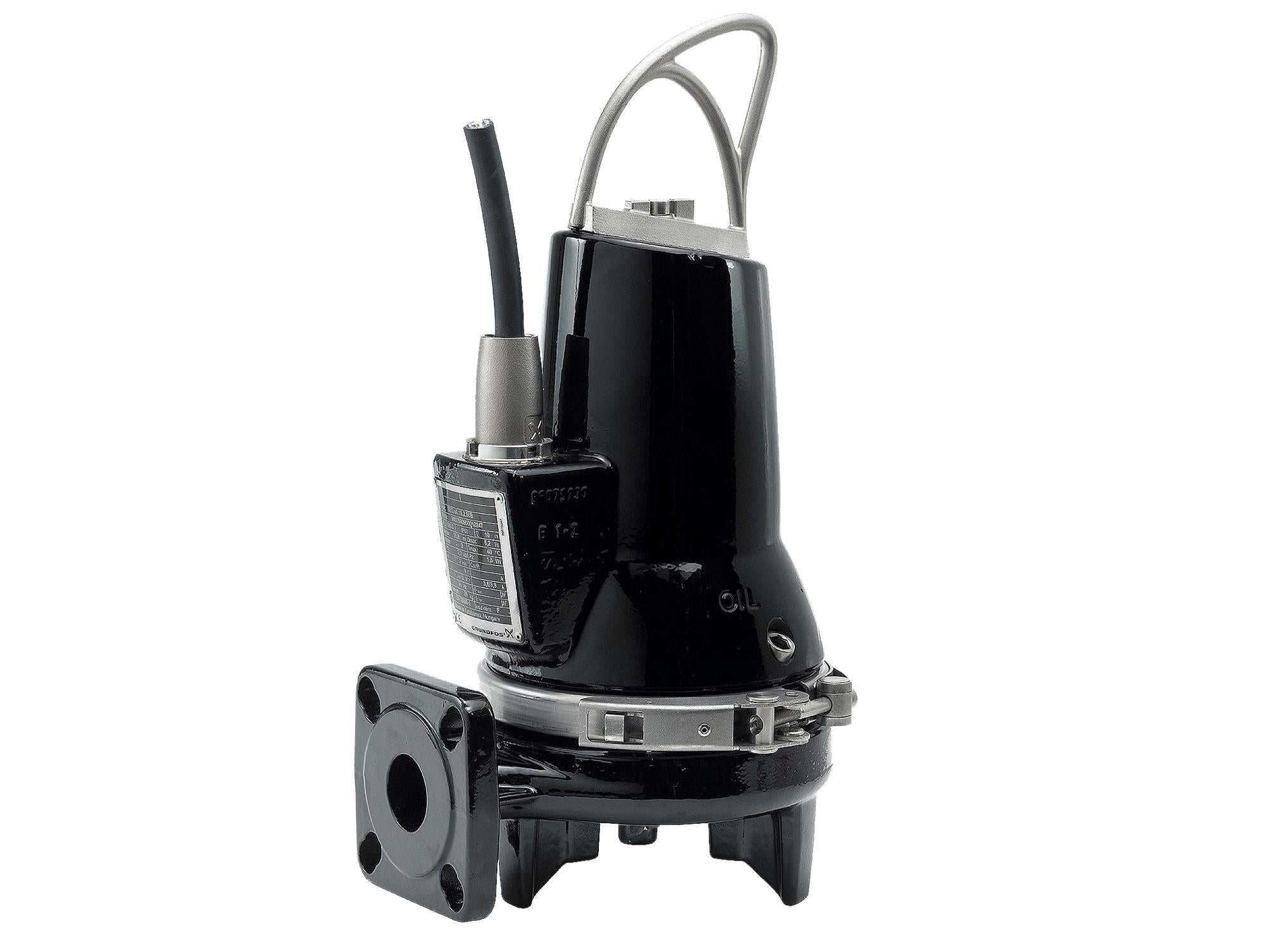

This submersible sewage grinder pump is designed for pumping wastewater, sludge-containing water, and sewage. It has a patented grinder system to grind the media efficiently. Suitable for commercial and domestic wastewater applications as well as flood control, this pump operates within a power range of 0.9-4 kW.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98682397 |
| Max flow | 66 US gpm |
| Head max | 56.76 ft |
| Type of impeller | Grinder System |
| Primary shaft seal | SIC/SIC |
| Approvals | CSA, FM |
| Curve tolerance | ANSI/HI11.6:2017 3B2 |
| Pump housing | Cast iron, EN1561 EN-GJL-200 |
| Impeller | Cast iron, EN1561 EN-GJL-200 |
| Maximum ambient temperature | 104 °F |
| Maximum operating pressure | 87.02 psi |
| Flange standard | ANSI |
| Pipework connection | 1 1/2" /2" |
| Size of outlet port | 1 1/2 inch |
| Pressure stage | PN 10 |
| Maximum installation depth | 32.8 ft |
| Inst dry/wet | SUBMERGED |
| Auto-coupling | 98245788 |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power input - P1 | 1.6 kW |
| Rated power - P2 | 1.61 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 200-230 V |
| Voltage tolerance | +6/-10 % |
| Max starts per. hour | 30 |
| Rated current | 7-6 A |
| Starting current | 40 A |
| Rated current at no load | 4.1 A |
| Cos phi - power factor | 0.72 |
| Cos phi - p.f. at 3/4 load | 0.61 |
| Cos phi - p.f. at 1/2 load | 0.48 |
| Rated speed | 3460 rpm |
| Moment of inertia | 0.047 lb ft² |
| Motor efficiency at full load | 77 % |
| Motor efficiency at 3/4 load | 73 % |
| Motor efficiency at 1/2 load | 65 % |
| Number of poles | 2 |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Explosion proof | yes |
| Ex-description | WITHOUT (STANDARD) |
| Built-in motor protection | THERMAL SWITCH |
| Thermal protec | external |
| Length of cable | 33 ft |
| Cable type | SEOOW 600V |
| Type of cable plug | No plug |
| Control box | not included |
| Moisture sensor | with moisture sensors |
| AUTOADAPT | No |
| Net weight | 101 lb |
| Country of origin | HU |
| Custom tariff no. | 8413.70.2004 |

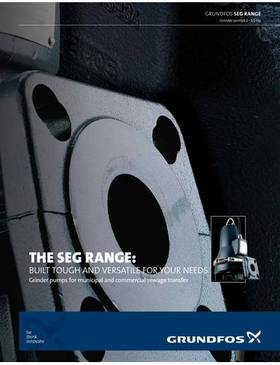

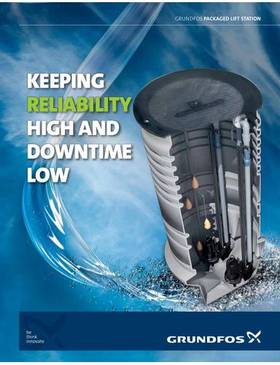

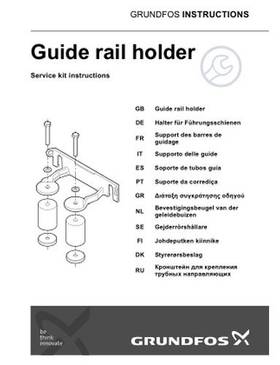

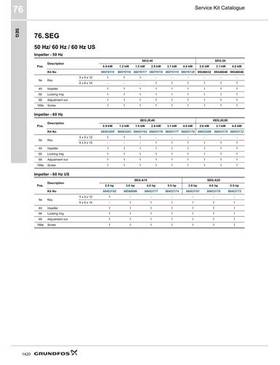

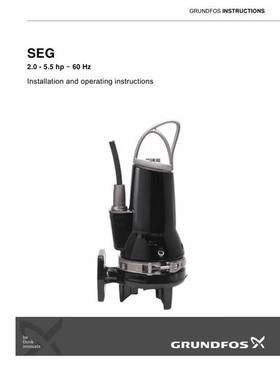

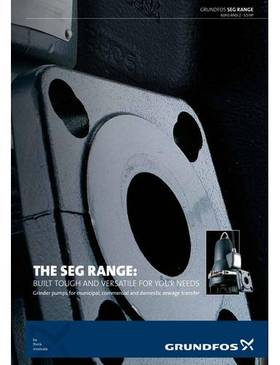

Documents
