Please note this item is assembled to order and additional lead-times may apply.

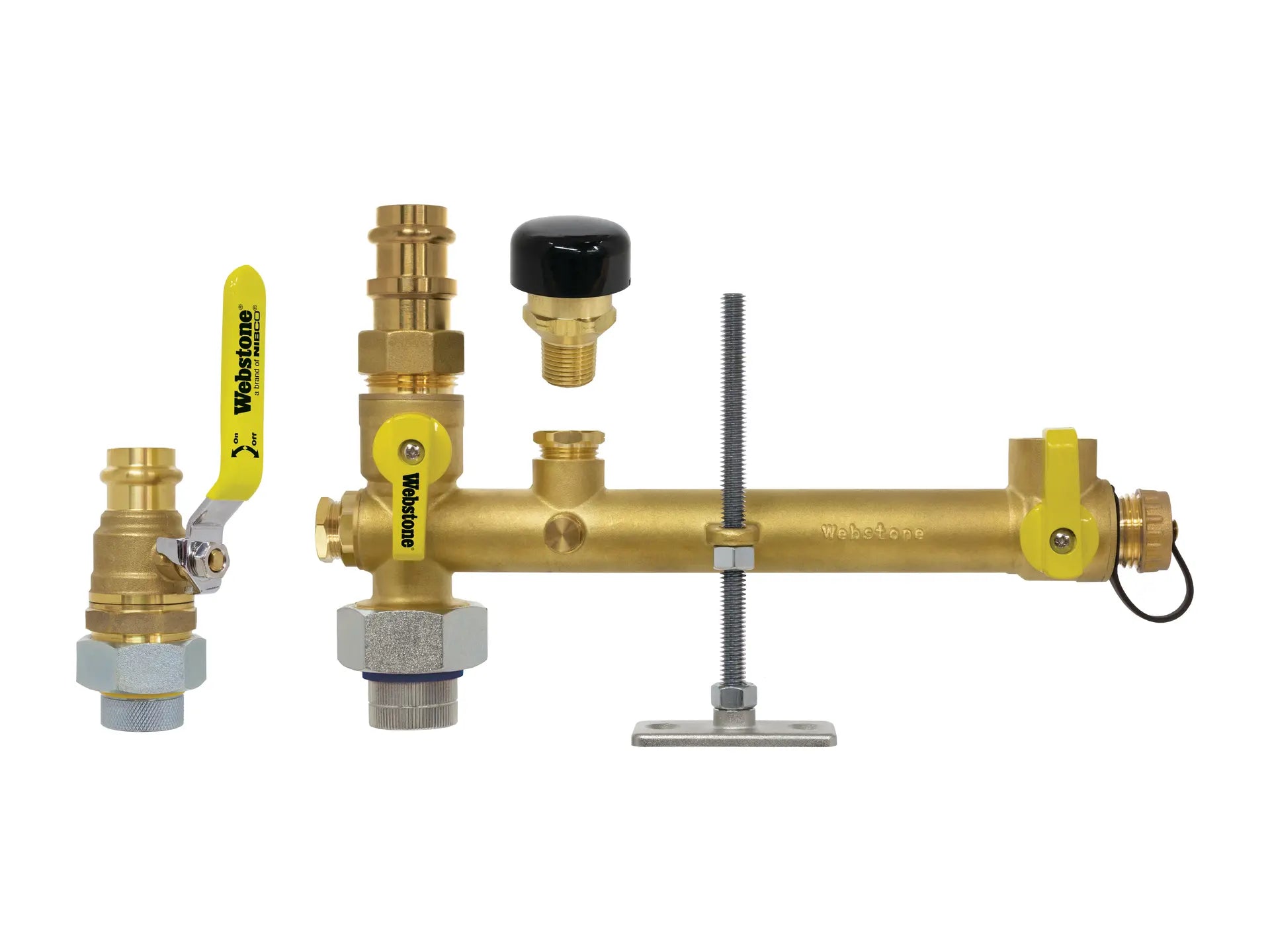

Pro-Pal water heater service valve Kit, Includes water heater supply valve, with expansion tank service, dielectric union Fitting and ball valve, vacuum relief valve, and mounting hardware Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal series valves. The dielectric water heater service valve Kits are a one-box solution for your next water heater installation, with solutions for hot and cold connections to system piping and periphery devices. Designed for use with water in residential or commercial plumbing systems. refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
Features
- Simplifies storage tank water heater installations
- FIP dielectric union for connection to the water heater
- Integrated valves isolate the water supply and expansion tank for service
- 1/2" FIP cold water tapping for water heater tempering valve
- 1/2" FIP port for installation of vacuum relief valve and 1/8" plugged gauge port
- Compatible with 3/4" MIP expansion tanks up to 5 gallons
- Includes support hardware, vacuum relief valve, dielectric union fitting & ball valve
- Compact version available if expansion tank is not required
- Saves time, replaces components, eliminates leak paths
- This valve is actuated by a blowout proof stem
- Double o-ring stem seals
- Models available to satisfy all state and federal low-lead laws
- Patents pending
- Available in FIP Union x SWT, FIP Union x PRS, FIP Union x FIP

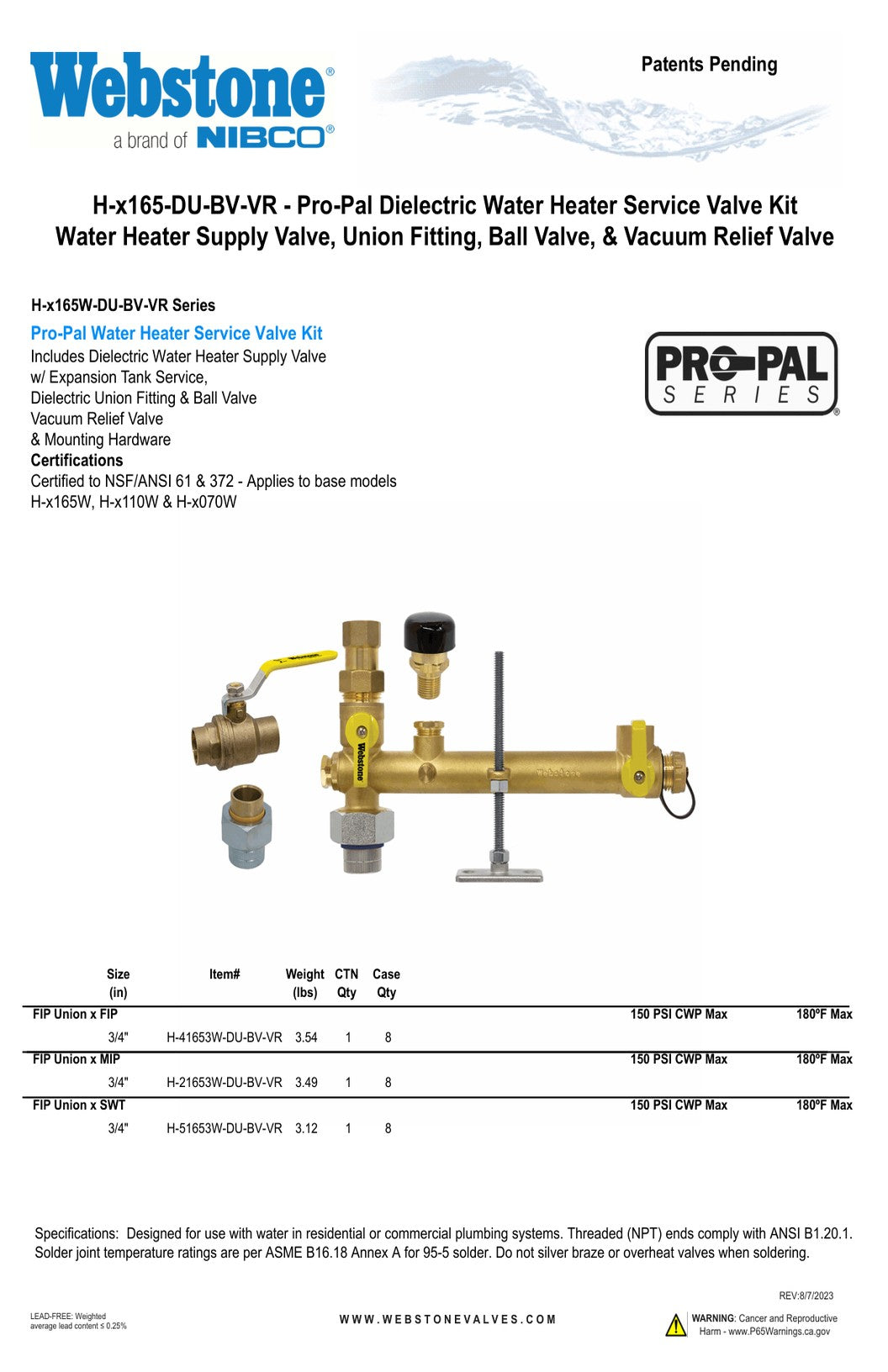

- Certified to NSF/ANSI 61 & 372
