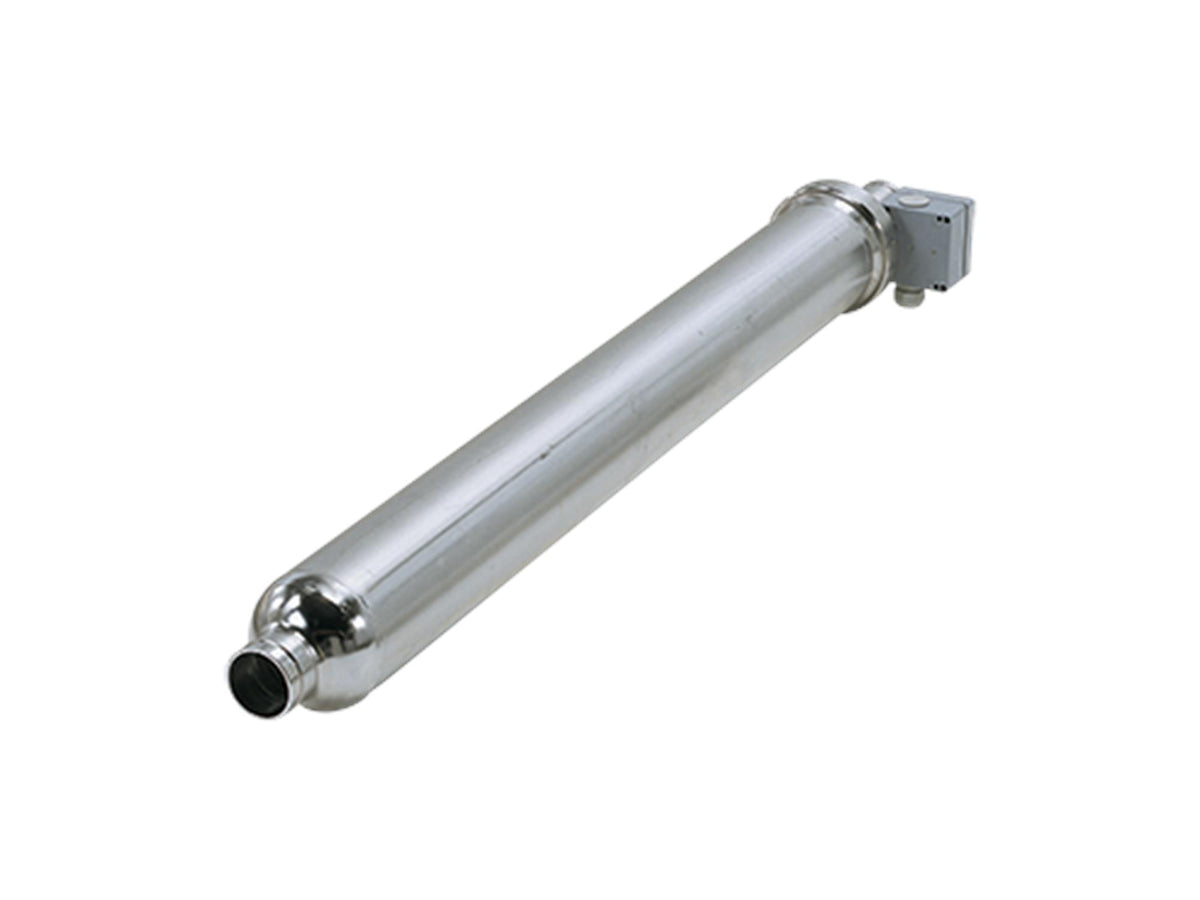

Grundfos 95908982, Booster Module BM hp 17-3-R NBR
Roll over image to zoom in Click on image to zoom
Grundfos 95908982, Booster Module BM hp 17-3-R NBR

Grundfos 95908982, Booster Module BM hp 17-3-R NBR

SKU: LSI3BR4257 Part Number: 95908982
Price:
$48,681.00

Call 844-448-0880 for large volume pricing

Stock:
Obsolete
 More payment options

Description

This high pressure booster module is used for boosting and liquid circulation in systems under a high static pressure.

Specifications

Manufacturer Grundfos
Part Number 95908982
Rated flow 74.8 US gpm
Rated head 78.74 ft
Stages 3
Curve tolerance ISO9906:2012 3B
Pump Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller Stainless steel, EN 1.4539, AISI 904L
Motor Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber NBR
Sleeve Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure 1199.46 psi
Maximum permissible inlet pressure 1189.31 psi
Maximum outlet pressure 1189.31 psi
Pipe connection standard PJE
Pipe connection 89 mm
Pumped liquid Water
Maximum liquid temperature 104 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Rated power - P2 7.5 HP
Main frequency 50 Hz
Rated voltage 3 x 380-415 V
Service factor 1.15
Rated current 13.6-13.8 A
Rated speed 2850-2870-2880 rpm
Start. method DOL
Enclosure class (IEC 34-5) IP66
Minimum efficiency index, MEI ≥ 0.70
Net weight 103 lb
Gross weight 195 lb

Documents

BM, BMhp (Data booklet)
