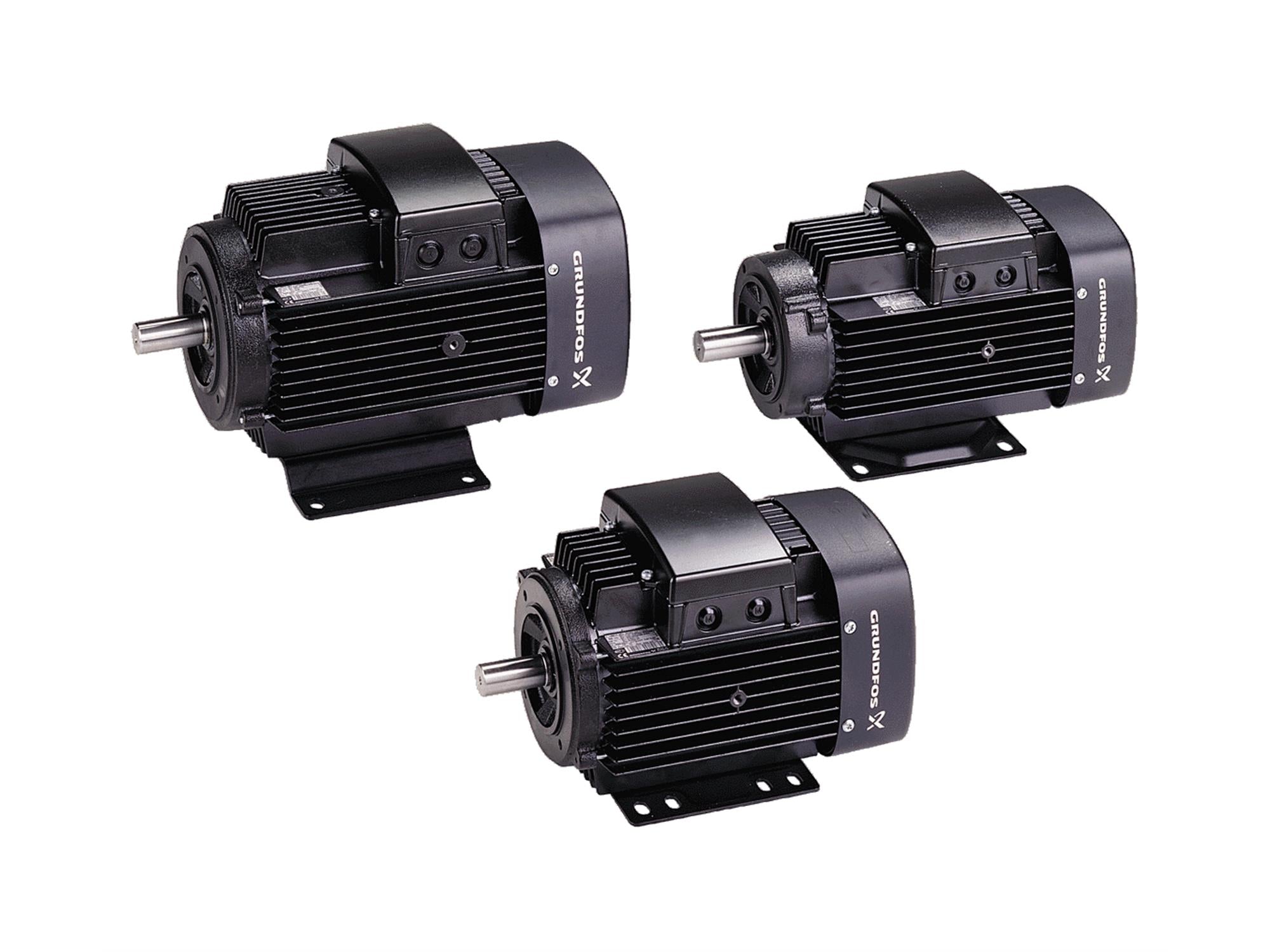

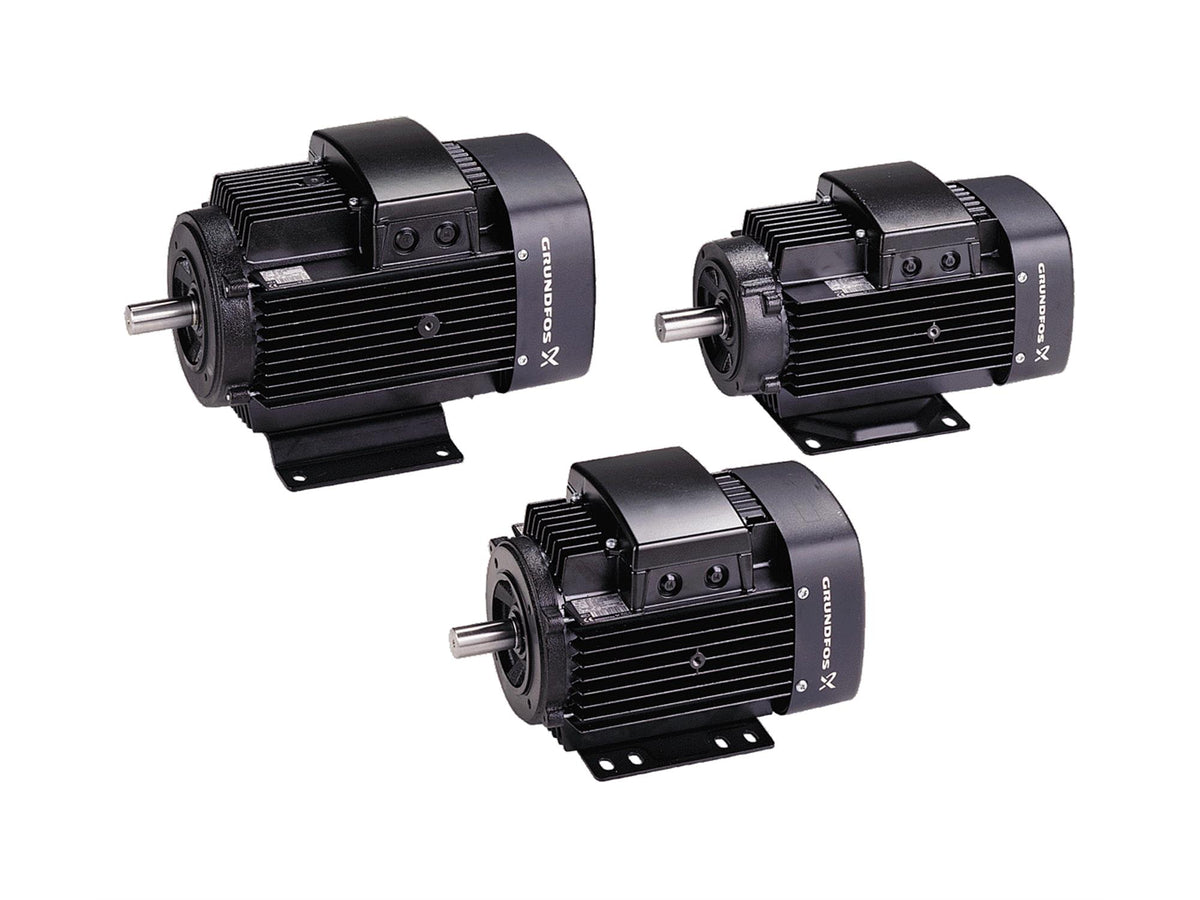

Grundfos 85325501, MG71A Motor 200/346-2 .25KW B14-14

SKU: LSI3FJUSJL Part Number: 85325501

Price:
Sale price$501.95 Regular price$748.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This motor is identified as MG71A with a specification of 200/346-2 and a power rating of 0.25 kW, suitable for standard applications.

Specifications

Manufacturer Grundfos
Part Number 85325501
Shaft diameter 0.55 in
Length of shaft end 1.18 in
Approvals for motor CE,EAC,UKCA,SEPRO,Morocco
Energy approvals for motor CE,Singapore
Cooling IC 410
Cable gland entry 2xPG 16 blind plug
Drain holes Yes (closed)
Range of ambient temperature -22 .. 140 °F
Flange size for motor FT85
Motor standard IEC
Motor type 71A
Rated power - P2 0.33 HP
Main frequency 50 Hz
Rated voltage 3 x 200-220D/346-380Y V
Rated current 1.32/0.76 A
Maximum current consumption 1.46/0.84 A
Starting current 530-590 %
Cos phi - power factor 0.82-0.77
Rated speed 2810-2850 rpm
Rated full-load torque 0.62 ft lb
Locked-rotor torque 350-410 %
Breakdown torque 360-440 %
Moment of inertia 0.012 lb ft²
IE Efficiency class IE3
Motor efficiency at full load 77.6-78 %
Motor efficiency at 3/4 load 77-76.1 %
Motor efficiency at 1/2 load 73.1-70.8 %
Number of poles 2
Enclosure class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F
Built-in motor protection NONE
Tropic protec No
Thermal protec external
R1 21.2 ohm
R2 21.2 ohm
R3 21.2 ohm
Winding 1 PHASE 1
Winding 2 PHASE 2
Winding 3 PHASE 3
Mounting design per IEC 34-7 IM B14/V18
Bearing insulation type N-end Steel Bearing
Net weight 13.2 lb
Color/Type NCS 9000 gloss 40+-10 /E-coat
Country of origin HU
Custom tariff no. 8501.52.4000
Environmental approvals for motor WEEE
