Please note this item is made to order and additional lead-times may apply.

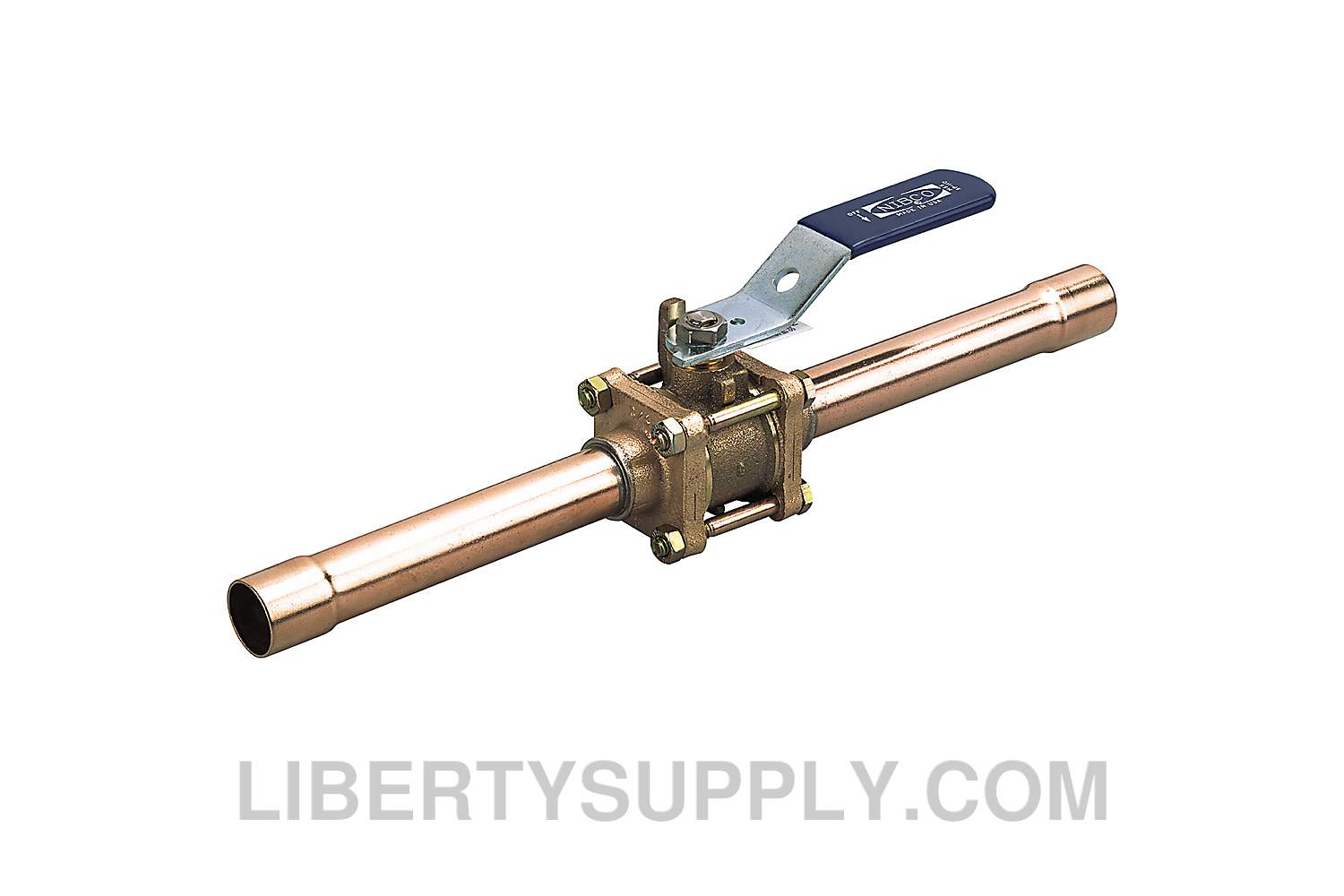

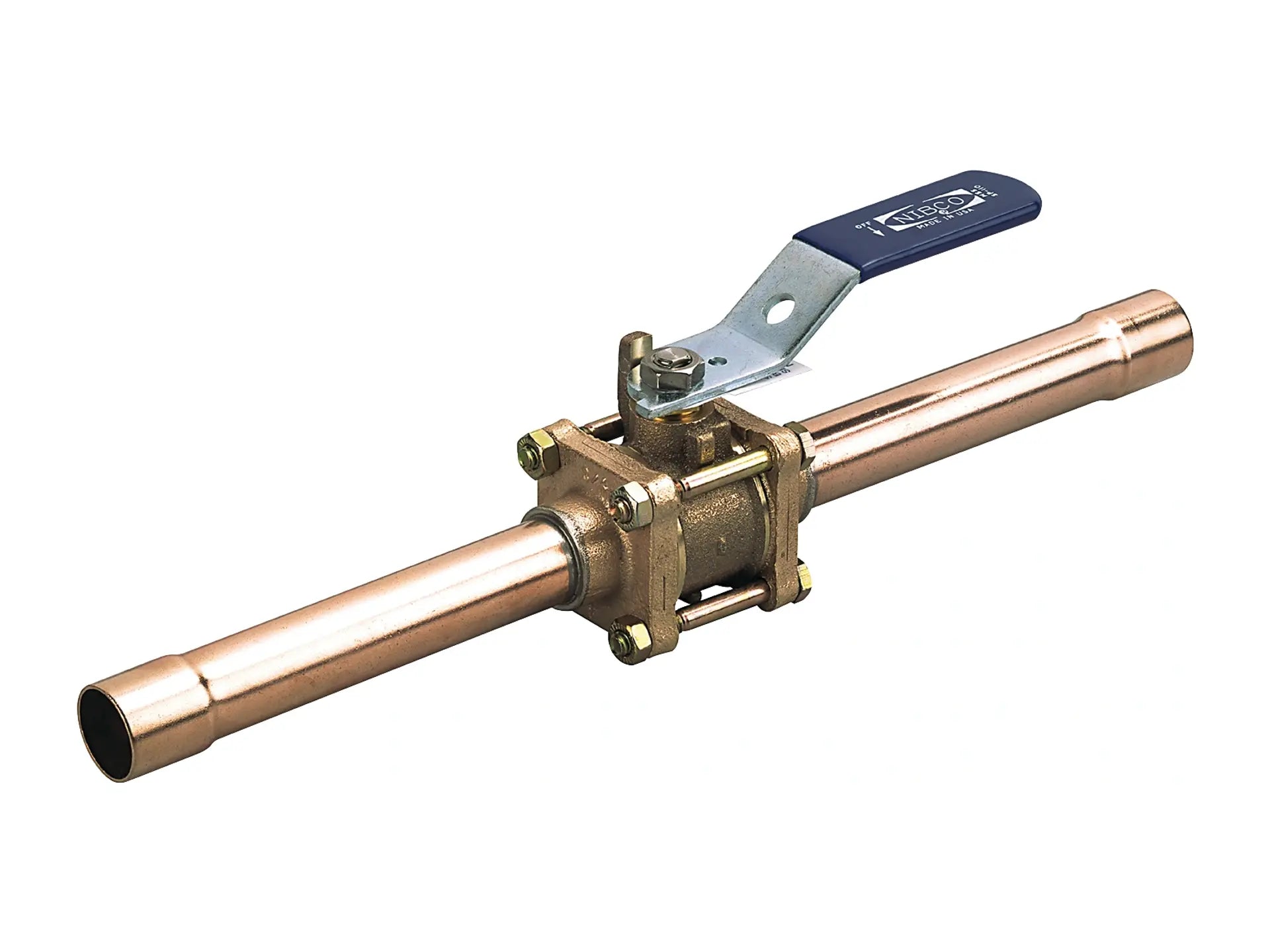

This NIBCO bronze ball valve features solder ends for easy installation. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close, and bubble-tight shutoff at 600 psi. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEA® insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Valve pressure rating 200 psi 13.8 bar for medical gas
- Maximum temperature rating 400°F
- Full port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL®
- Solder end connections
- Dezincification resistant
- Cleaned and bagged for medical gas
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Oxygen cleaning: Meets the requirements of NFPA99 and CGA Pamphlet G-4-1
