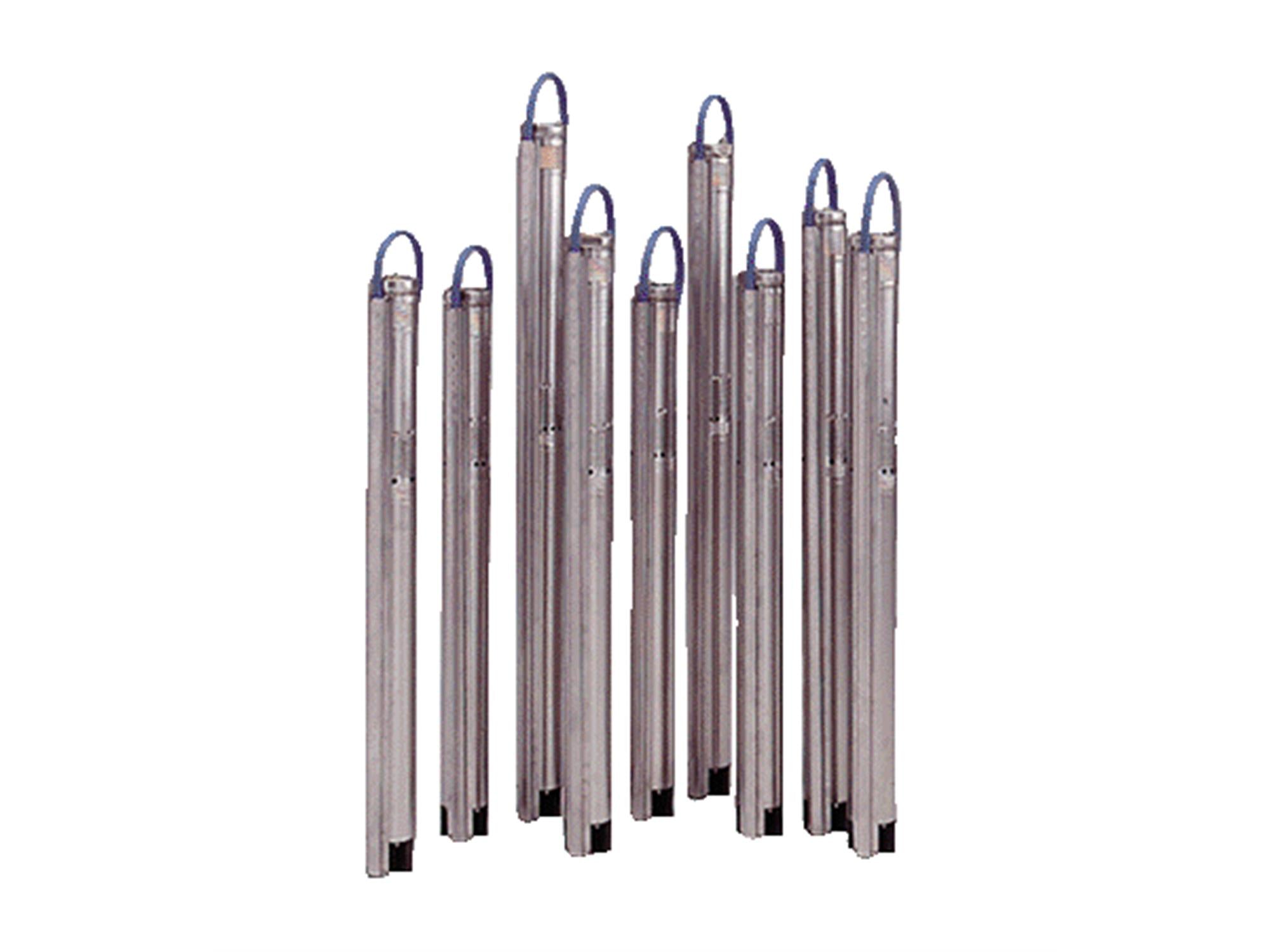

This submersible pump is compact and designed for remedial pumping and liquid sampling from areas with contaminated groundwater.
Specifications
Manufacturer
Grundfos
Part Number
97778505
Pump speed on which pump data is based
10700 rpm
Rated flow
22 US gpm
Rated head
36.09 ft
Stages
1
Approvals
cULus
Curve tolerance
ISO9906:2012 3B
Pump Number
96397457
Valve
pump with built-in non-return valve
Pump
Stainless steel, EN 1.4401, AISI 316
Impeller
Composite, SOLEF 8808/0902 PVDF-CF10
Motor
Stainless steel, DIN W.-Nr. 1.4401, AISI 316
Maximum operating pressure
217.56 psi
Pump outlet
1 1/2"NPT
Minimum borehole diameter
2.99 in
Pumped liquid
Water
Liquid temperature range
32 .. 95 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Motor type
MSE3-NE
Power input - P1
1.05 kW
Rated power - P2
0.939 HP
Main frequency
50 Hz
Rated voltage
1 x 100-115 V
Rated current
12 A
Power factor
1.00
Rated speed
10700 rpm
Start. method
direct-on-line
Enclosure class (IEC 34-5)
IP68
Insulation class (IEC 85)
F
Built-in motor protection
Y
Thermal protec
internal
CU 300/CU 301
communication with CU 300/CU 301 possible
Net weight
9.48 lb
Gross weight
11 lb
Sales region
N-AMREG
