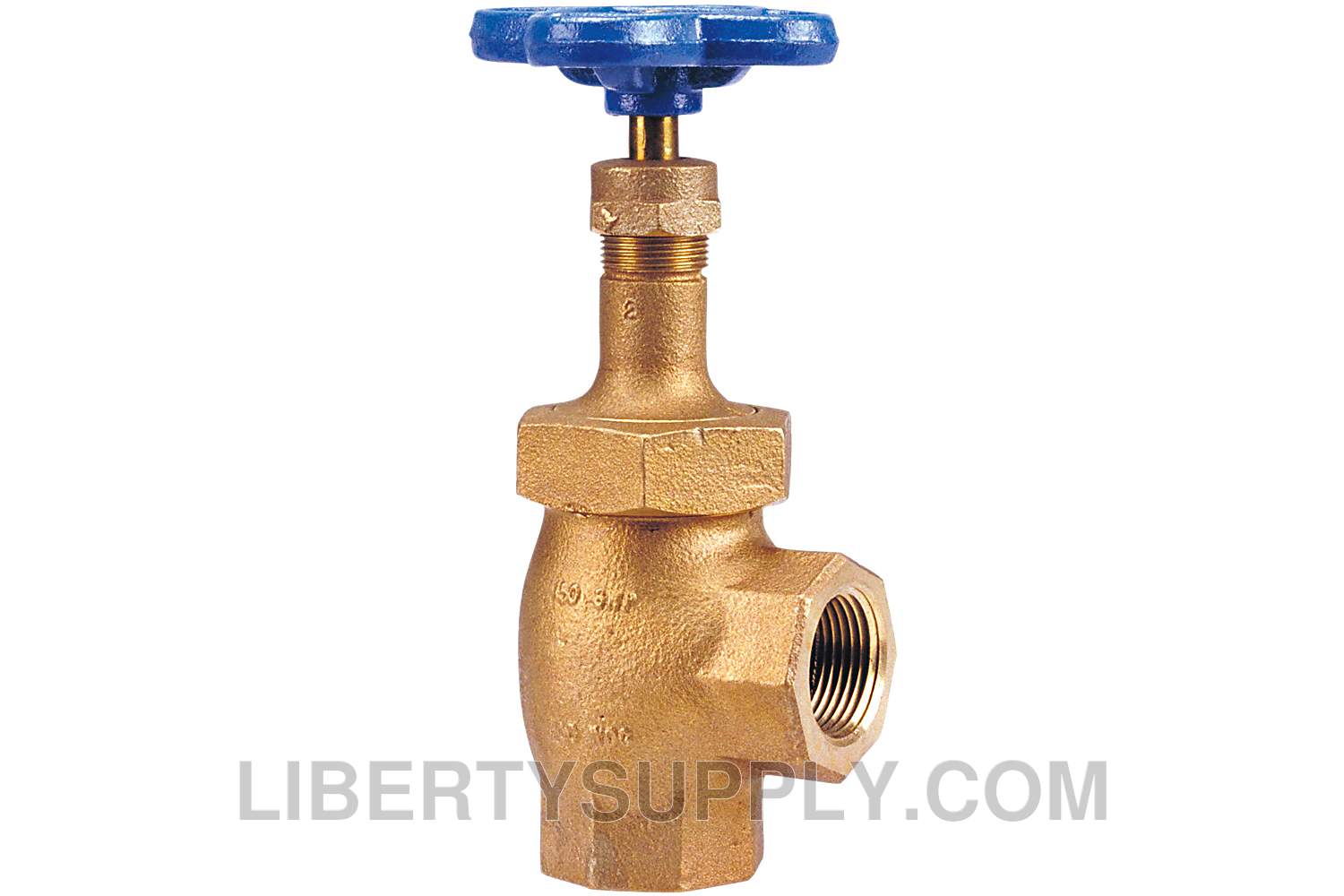

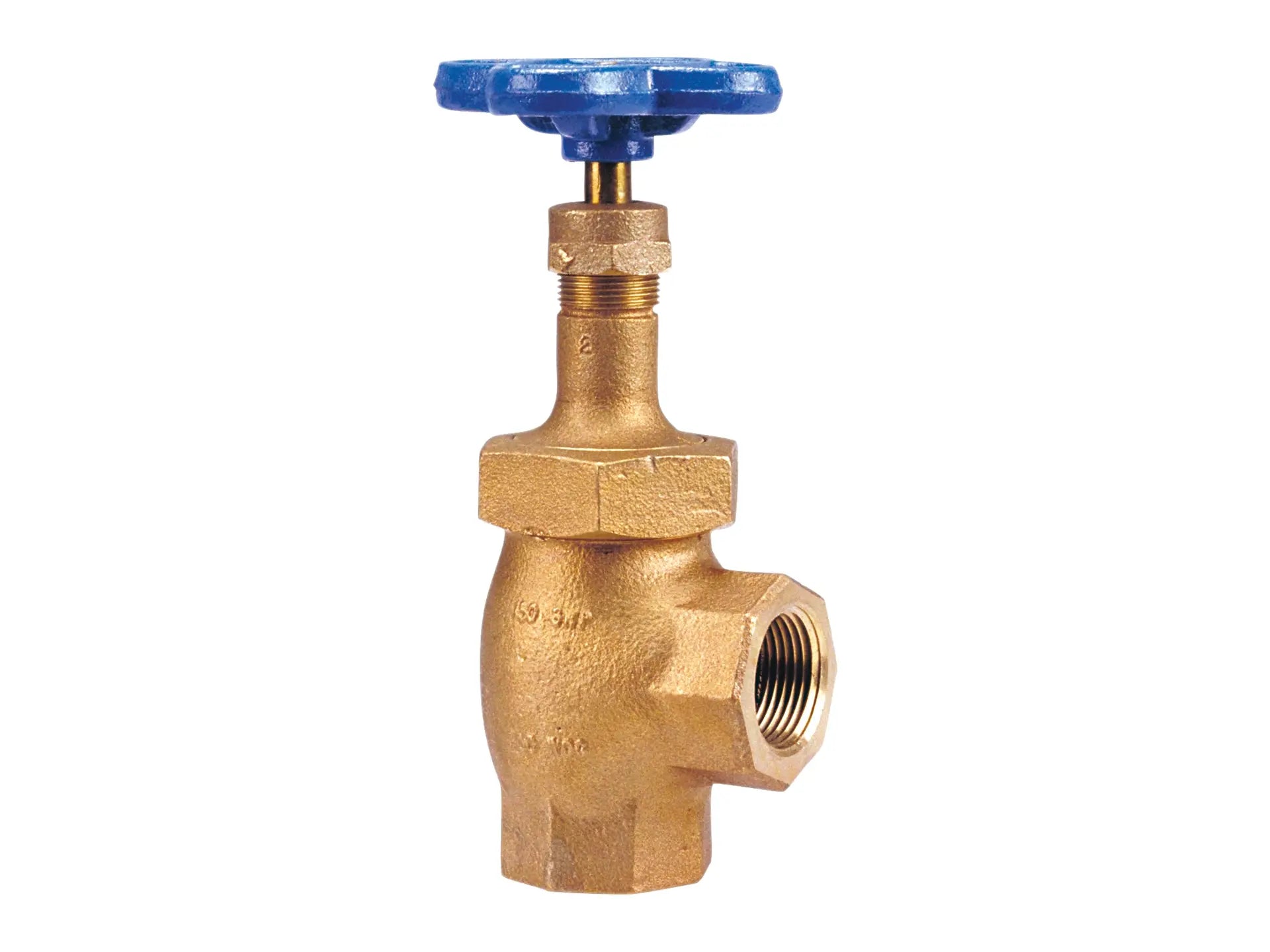

NIBCO T-335-Y-X 3/4" Bronze Angle Valve NL54W04

SKU: LSI4H8GYTR Part Number: NL54W04 Model: T-335-Y-X

Price:
Sale price$405.95 Regular price$712.00

Save 43% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

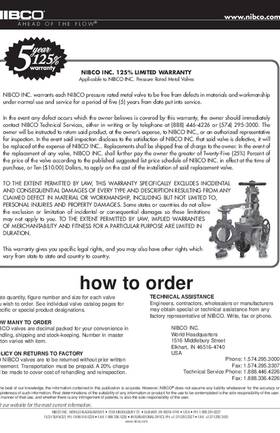

Bronze angle valve features a union bonnet with integral seat and renewable seat disc. The seat disc is available in PTFE. The angle valve is used for throttling or regulating flow and the design eliminates a low area in the system where particles can settle and corrode or solidify. It is equipped with Class 150 female threaded ends for ease of installation. This NIBCO bronze angle valve is recommended for service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • 150 psi/10.3 bar saturated steam to 366°F/185°C
  • 300 psi/20.7 bar non-shock cold working pressure
  • Integral seat
  • Renewable seat disc PTFE
  • Class 150 threaded end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Dezincification resistant
  • Conforms to MSS SP-80

Specifications

Manufacturer NIBCO
Part Number NL54W04
Model T-335-Y-X
Type of Valve Angle
Material Bronze
Connection Size 3/4"
Connection Type T -- Female NPT Thread (FIPT)
Seat Seal Material PTFE
Turns Operations Multi-Turn
Multi-Turn Operator Standard Handwheel
Multi-Turn Bonnet Design Union Bonnet
Special Options Oxygen Service
Valve Pressure Rating (CWP) 300 PSI / 20.7 Bar CWP
Valve Pressure Rating (SWP) 150 PSI / 10.3 Bar SWP
Potable Water Code Not LL Comp not intend potable
UPC Code 039923632302
Length 6.97"
Width 2.84"
Height 2.5"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
