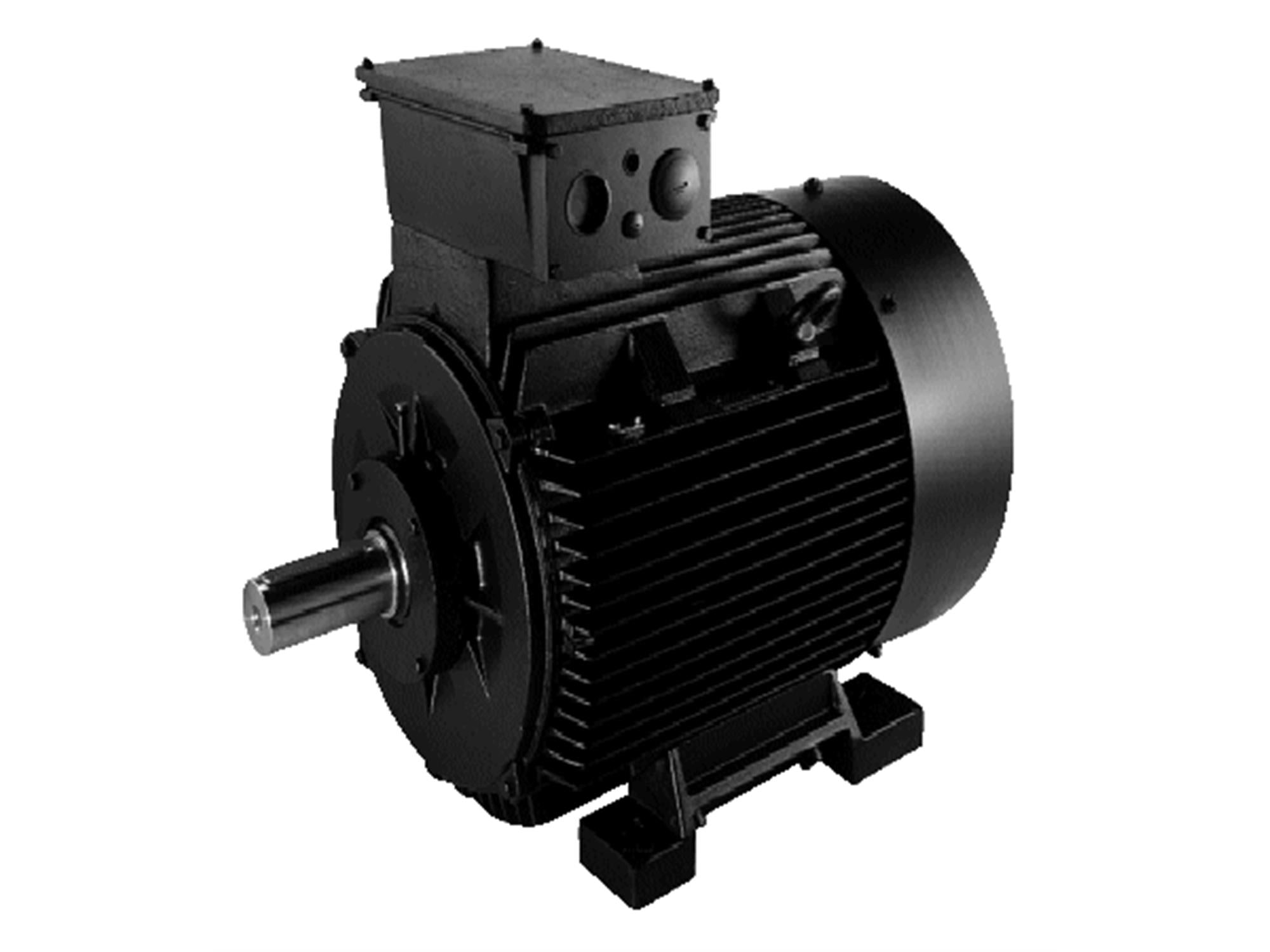

Grundfos 85580001, MTR2 TEF .33HP 3X208T 60 Hz Motor

Roll over image to zoom in Click on image to zoom

Grundfos 85580001, MTR2 TEF .33HP 3X208T 60 Hz Motor

Name: Grundfos 85580001, MTR2 TEF .33HP 3X208T 60 Hz Motor
Brand: Grundfos
SKU: LSI4IWY7AN
Price: 466.95 USD
Availability: OutOfStock

SKU: LSI4IWY7AN Part Number: 85580001

Price:

$466.95 $696.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This motor is a Baldor 56C model with a power rating of .33 HP, designed for use with three-phase 208V systems at 60 Hz.

Manufacturer	Grundfos
Part Number	85580001
Shaft diameter	0.63 in
Length of shaft end	1.88 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	TEFC
Maximum ambient temperature	104 °F
Flange size for motor	56C
Motor type	BALDOR
Rated power - P2	0.33 HP
Main frequency	60 Hz
Rated voltage	3 x 208-230/460 V
Service factor	1.35
Rated current	1,70-1,40/0,70 A
Full load SF current	1,7-1,6/0,8 A
Rated speed	3450 rpm
IE efficiency	IE2 70,0%
IE Efficiency class	IE2 / NEMA Energy
Motor efficiency at full load	70.0 %
Number of poles	2
Enclosure class (IEC 34-5)	TEFC
Insulation class (IEC 85)	B
Mounting design per IEC 34-7	NEMA type C
Bearing insulation type N-end	Steel Bearing
Net weight	16.6 lb
Color/Type	BLACK

Baldor motors (I & O instructions)

WEG motors, GB/ES version (I & O instructions)

WEG motors, Additional languages (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
